1-1/4" Pneumatic Angle Seat Valve, 2 Way, 2 Position

1-1/4" Pneumatic Angle Seat Valve, 2 Way, 2 Position
1-1/4" Pneumatic Angle Seat Valve, 2 Way, 2 Position
1-1/4" Pneumatic Angle Seat Valve, 2 Way, 2 Position
1-1/4" Pneumatic Angle Seat Valve, 2 Way, 2 Position
1-1/4" Pneumatic Angle Seat Valve, 2 Way, 2 Position
0 reviews • Write a review
from
$173.09
Ex Tax: $173.09
  • Stock: In Stock
  • Model: KOLAUT-ANGLE-32
  • Weight: 1.00
  • SKU: KOLAUT-ANGLE-32

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.3 Nm Electromagnetic Power Off Brake, 24VDC
Quickview
0.3 Nm Electromagnetic Power Off Brake, 24VDC
$129.86
Ex Tax:$129.86
Add to Cart Add to Wish List Compare this Product
1 Piece Stainless Steel Ball Valve, 1/4 Inch
Quickview
1 Piece Stainless Steel Ball Valve, 1/4 Inch
$29.68
Ex Tax:$29.68
Add to Cart Add to Wish List Compare this Product
1 Piece Stainless Steel Ball Valve, 3/8 Inch
Quickview
1 Piece Stainless Steel Ball Valve, 3/8 Inch
$29.68
Ex Tax:$29.68
Add to Cart Add to Wish List Compare this Product
1 1/2 Inch Swing Check Valve, DN40, CPVC
Quickview
1 1/2 Inch Swing Check Valve, DN40, CPVC
$252.23
Ex Tax:$252.23
Add to Cart Add to Wish List Compare this Product
1 1/2" Pneumatic Diaphragm Valve, Sanitary
Quickview
1 1/2" Pneumatic Diaphragm Valve, Sanitary
$532.15
Ex Tax:$532.15
Add to Cart Add to Wish List Compare this Product
1 1/2" Spring Loaded Pressure Relief Valve, DN40
Quickview
1 1/2" Spring Loaded Pressure Relief Valve, DN40
$121.85
Ex Tax:$121.85
Add to Cart Add to Wish List Compare this Product
1 1/4 Inch Swing Check Valve, DN32, CPVC
Quickview
1 1/4 Inch Swing Check Valve, DN32, CPVC
$209.23
Ex Tax:$209.23
Add to Cart Add to Wish List Compare this Product
1 1/4" Pneumatic Diaphragm Valve, Sanitary
Quickview
1 1/4" Pneumatic Diaphragm Valve, Sanitary
$409.23
Ex Tax:$409.23
Add to Cart Add to Wish List Compare this Product

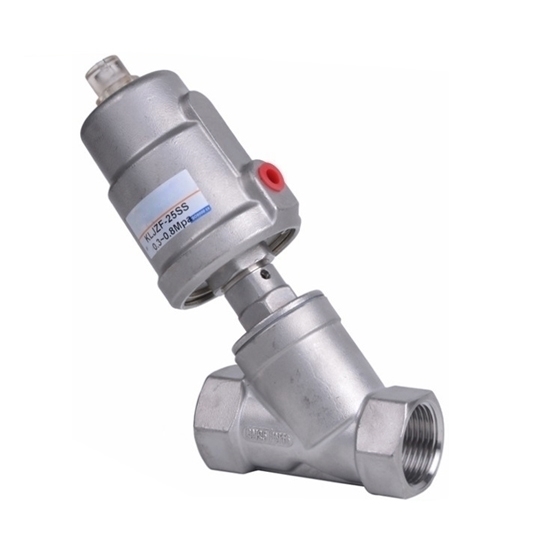

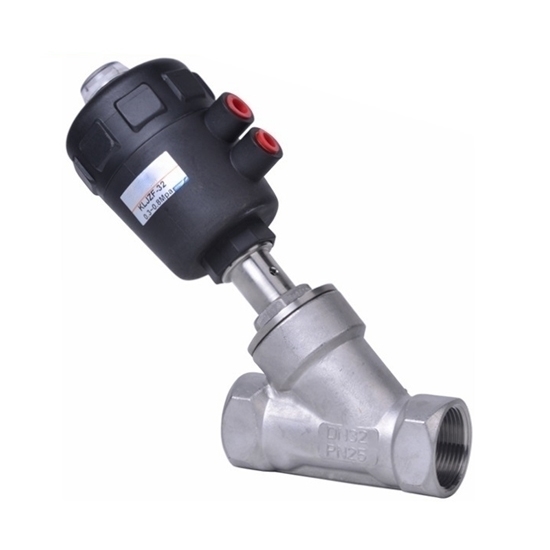

Low price 1-1/4 inch pneumatic angle seat valve is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle slanted seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

  • Model: KOLAUT-KLJZF-DN32
  • Pipe Thread Type: 1-1/4 inch (DN32), ZG, G or NPT
  • Working Medium: Air, Water, Oil, Gas, Steam
  • Pneumatic Fitting Type: ZG 1/4"
  • Medium Temperature: -10℃~+180℃
  • Ambient Temperature: -10℃~+60℃
  • Nominal Pressure: 1.6MPa
  • Air Pressure: 0.4~0.8MPa
  • Valve Body Material: Stainless Steel (SS304, SS316)
  • Sealing Material: PTFE
  • Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

ActuatorDRPGHLL1T
637642ZG1/8"ZG1-1/4"18218811021


Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

ActuatorDABCφEFGH
63ZG1-1/4"117220218052120185

Tips: Pneumatic angle seat valve application

Angle seat valve is widely used in short-time frequent start, with the characteristics of sensitive response and accurate action. Angle seat valve is a common pipeline switch in automatic control system. It is widely used in printing and weaving, printing and dyeing, bleaching, food, washing, chemical industry, water treatment, medicine and other automatic machinery and equipment.
