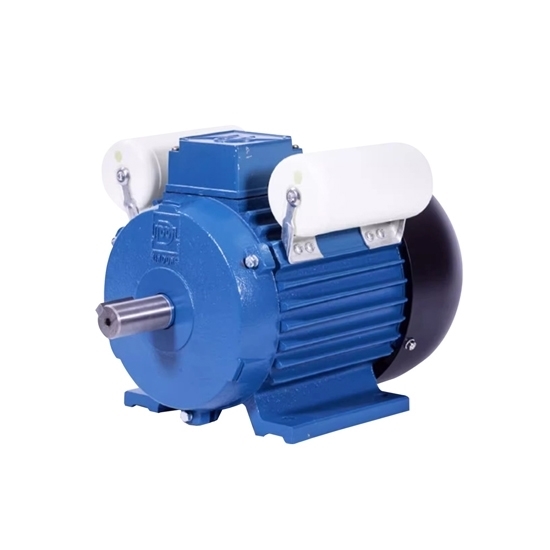

1/2 Hp (0.37kW) 220V Single Phase AC Induction Motor

1/2 Hp (0.37kW) 220V Single Phase AC Induction Motor
1/2 Hp (0.37kW) 220V Single Phase AC Induction Motor
0 reviews • Write a review
from
$304.15
Ex Tax: $304.15
  • Stock: In Stock
  • Model: KOLAUT-SPM-370
  • Weight: 1.00
  • SKU: KOLAUT-SPM-370

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Air Compressor Motor, 115/ 230V, 5/8" Shaft
Quickview
1 Hp (0.75 KW) Air Compressor Motor, 115/ 230V, 5/8" Shaft
$368.15
Ex Tax:$368.15
Add to Cart Add to Wish List Compare this Product
1 Hp (0.75kW) 220V Single Phase AC Induction Motor
Quickview
1 Hp (0.75kW) 220V Single Phase AC Induction Motor
$315.98
Ex Tax:$315.98
Add to Cart Add to Wish List Compare this Product
1 Hp (0.75kW) 3 Phase 4 Pole AC Induction Motor
Quickview
1 Hp (0.75kW) 3 Phase 4 Pole AC Induction Motor
$409.52
Ex Tax:$409.52
Add to Cart Add to Wish List Compare this Product
1 Hp (0.75kW) Brake Motor, 3 Phase, 2/4 Pole
Quickview
1 Hp (0.75kW) Brake Motor, 3 Phase, 2/4 Pole
$460.99
Ex Tax:$460.99
Add to Cart Add to Wish List Compare this Product

370W 0.5 hp single phase motor, is also called an asynchronous motor. It has 1500rpm/3000rpm speed, 220V/110V/230V/240V voltage, and works at 50Hz/60Hz frequency. 1 phase motor is available with two capacitors, offers zero starting torque at rest, and supplies for homes, offices, stores and small non-industrial companies.

Specifications

ModelKOLAUT-YL711-2KOLAUT-YL712-4
Rated Output0.37kW (0.5hp)
Efficiency67%62
Power Factor0.92 COSφ
Rated Speed2800rpm1400rpm
Rated Current2.61A1.9
Pole2 Pole4 Pole
Voltage220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn1.8 times
Ts/Tn1.8 times
ls/ln16 times12 times


Dimension (Unit: mm)

Frame SizeMounting DimensionOverall Dimension
ABCDEFGHKABACADAEHDL
7111290451430511717145145140105180255


Details



Tips: What is a Single Phase Induction Motor？

A single phase induction motor generally refers to a low-power asynchronous motor powered by a single-phase AC power supply. It usually has two-phase windings on the stator, and the rotor is of ordinary squirrel cage type. The distribution of the two-phase windings on the stator and the different power supply conditions can produce different starting characteristics and operating characteristics.
