- Stock: In Stock
- Model: KOLAUT-DAM5
- Weight: 1.00
- SKU: KOLAUT-DAM5
Available Options
Good price piston air motor with max. no-load speed 1500 rpm, starting torque 4.71 Nm, stopping torque 5.88 Nm, free shipping and manufacturer direct sale. Cheap pneumatic piston motor offers low noise, light weight and long service life advantages.
Specification
| Model | KOLAUT-DAM5 |
| Power | 1/2 hp |
| Gear ratio | 1:1 |
| Rated speed | 750 rpm |
| Rated torque | 2.94 Nm |
| Max. no-load speed | 1500 rpm |
| Air consumption | 397 L/min |
| Starting torque | 4.71 Nm |
| Stopping torque | 5.88 Nm |
| Mounting type | Basic type/ flange type/ foot type |
| Certificate | CE |
| Warranty | 12 months |
Dimension

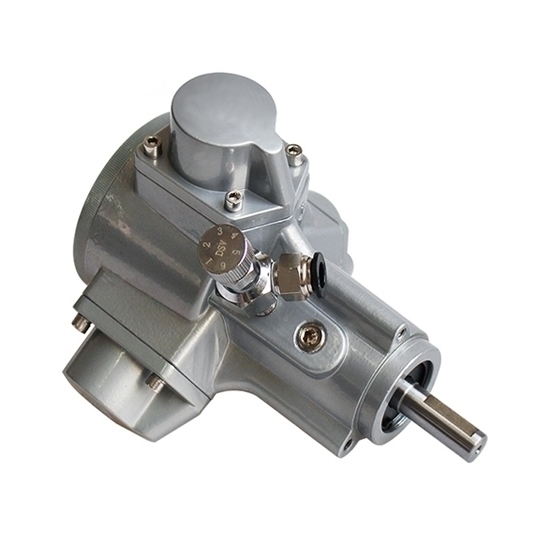

Basic type

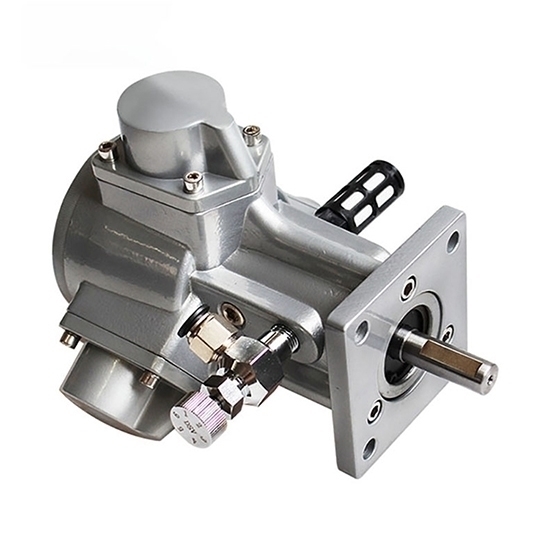

Flange type

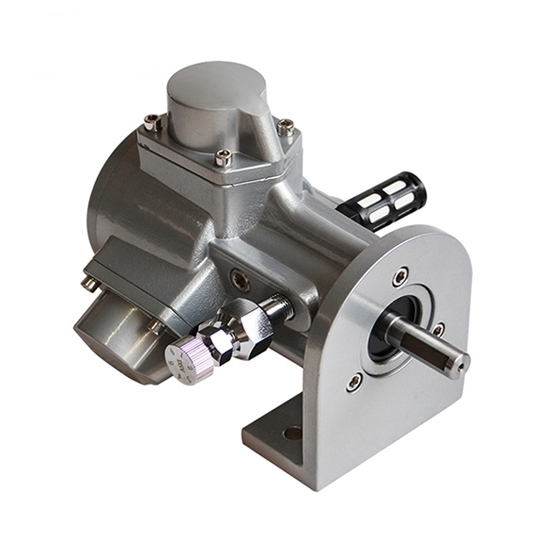

Foot type
| Model | Dimension (mm) | |||||||||||||||||||||
| A1 | A2 | A3 | A4 | B | C | C1 | D | E | F | G | H | J | M | N | M1 | N1 | M2 | N2 | Q | Q1 | P | |
| KOLAUT-DAM5 | 237 | 196 | 190 | 195 | 175 | 16 | 80 | 14 | 4 | 46 | M6 | 62h7 | 30 | 106 | 80.5 | 130 | 100 | 70 | 42 | 9 | 9 | 95 |
Details
Tips: Faults and Troubleshooting Methods of Piston Air Motor.
Suddenly slow down or not rotate during operation.
1. Reason analysis.
(1) Poor lubrication.
(2) The valve is stuck and burned.
(3) The crankshaft, connecting rod, and bearing are damaged.
(4) The cylinder screw is loose.
(5) The gas valve is blocked and desoldered.
2. Elimination method.
(1) Refueling.
(2) Replacement.
(3) Tighten.
(4) Resoldering.
