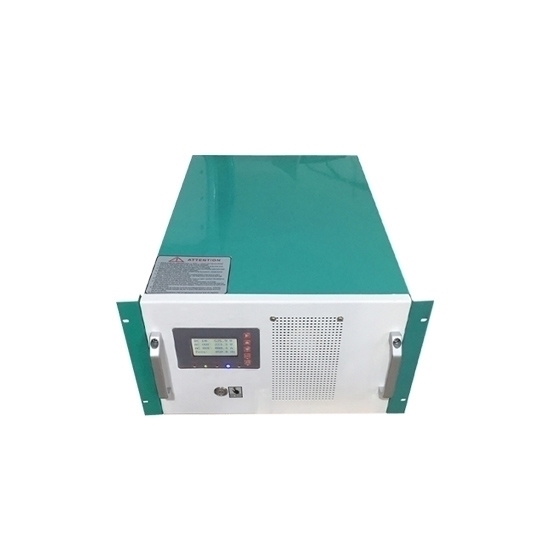

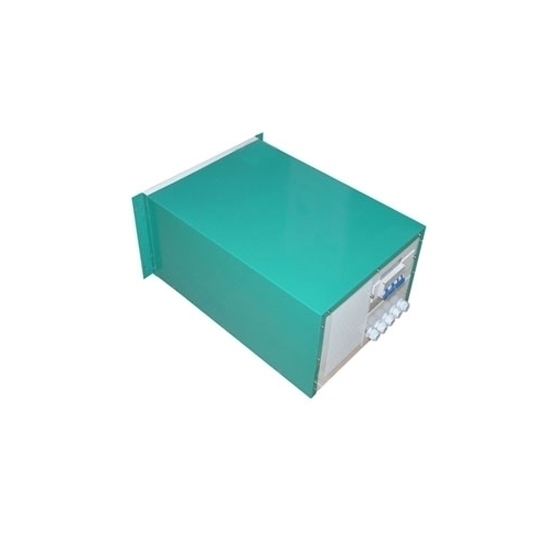

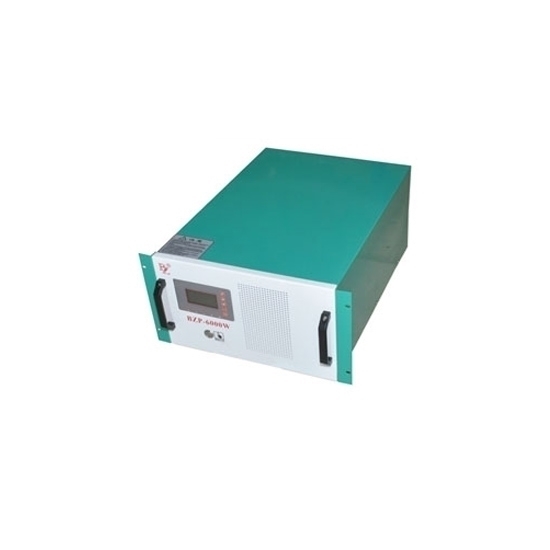

10000W Marine Power Inverter

10000W Marine Power Inverter
10000W Marine Power Inverter
10000W Marine Power Inverter
Free Shipping
10000W Marine Power Inverter
10000W Marine Power Inverter
10000W Marine Power Inverter
10000W Marine Power Inverter
0 reviews • Write a review
from
$6,638.53
Ex Tax: $6,638.53
  • Stock: In Stock
  • Model: KOLAUT-MPI-10KW
  • Weight: 1.00
  • SKU: KOLAUT-MPI-10KW

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.5 KVA Single Phase Variac Voltage Regulator
Quickview
0.5 KVA Single Phase Variac Voltage Regulator
$169.58
Ex Tax:$169.58
Add to Cart Add to Wish List Compare this Product
1 KVA 3-Phase Autotransformer, 380V To 220/200V
Quickview
1 KVA 3-Phase Autotransformer, 380V To 220/200V
$873.69
Ex Tax:$873.69
Add to Cart Add to Wish List Compare this Product
1 KVA Isolation Transformer, Single Phase, 240V To 120V
Quickview
1 KVA Isolation Transformer, Single Phase, 240V To 120V
$784.36
Ex Tax:$784.36
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Automatic Voltage Stabilizer For Home
Quickview
1 KVA Single Phase Automatic Voltage Stabilizer For Home
$203.69
Ex Tax:$203.69
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Variac Voltage Regulator
Quickview
1 KVA Single Phase Variac Voltage Regulator
$256.32
Ex Tax:$256.32
Add to Cart Add to Wish List Compare this Product
1.5 KVA 3 Phase Variac Voltage Regulator
Quickview
1.5 KVA 3 Phase Variac Voltage Regulator
$589.39
Ex Tax:$589.39
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Output
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Output
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product

Get a 10000W marine power inverter for boat online, available with 240V input DC voltage, 42V input DC current, 50Hz or 60Hz frequency, 110/120/220/230/240V output voltage, and communication interface RS485. Low price boat inverter can convert the battery (DC power) on board into AC power for common electrical equipment.

Features

  • 10000 watt marine inverter utilizes the U.S. DSP28335 control chip for fast running speed and high precision, with a conversion efficiency of over 92% and a built-in industrial frequency isolation transformer for strong anti-interference and impact resistance.
  • The boat inverter is equipped with over-voltage, over-current, short-circuit, and overheating warning devices, along with frequency conversion starting and reduced voltage soft start functions, suitable for high-power motor startups.
  • Good price marine power inverter features an LCD and LED alarm indicators for easy operation, provides a pure output waveform with less than 3% distortion, and supports single-phase power supply with output voltage range of 110/120/220/230/240V AC.

Specifications

ModelKOLAUT-SDP-10KW
Isolation ModeLow-Frequency Transformer
DC InputVoltage Range (V DC)240V (Contact Us for Other Voltage)
Rated Current(A)42A (Contact Us for Other Current)
AC OutputRated Output Power10kW (10000 watt)
Output WaveformPure Sine Wave
Rated Voltage110/120/220/230/240V AC (Optional)
PhasesSingle Phase
Rated Current (A)23A
Frequency50Hz or 60Hz
Rated Output Voltage Range (V)110/120/220/230/240V AC (Optional)
Power Factor (PF)0.99
Overload Ability150%, 5 seconds
Efficiency>93%
Waveform Distortion Rate (THD)<3% (Linear load)
Dynamic Response (0 to 100% Load)5%，≤50ms
DisplayLCD
Running ModeWorking Continuously
Electrical Insulation Properties2000V AC, 1min
Communication InterfaceRS485 (Optional)
Protection FunctionProtectionInput Reverse Polarity, Under Voltage, Overvoltage, Output Over current, Shortcircuit, Overheating, etc.
Cooling MethodFan-cooled
Short-circuit ProtectorNo Automatic Recovery Need to Restart the Machine
Working
Environment		Noise (1m)≤50dB
Degree Of ProtectionIP20 (Indoor)
Working Altitude (m)≤2000
Working Temperature-25~+55℃
Relative Humidity0~90% (Non-Condensing)
Rack Mounted TypeDepth*Width* Height460*680*340mm
Stand Type500*500*800mm


Applications

Tips: Can I use a marine inverter while the boat is underway?

Using a marine inverter while the boat is underway is a common practice among boat owners, offering the convenience of powering essential appliances and electronic devices during voyages. However, it's crucial to ensure that the marine inverter is securely installed and properly integrated into the boat's electrical system to maintain a stable power supply. This includes mounting the inverter in a secure location to prevent movement and vibrations, as well as ensuring that all connections are tight and secure to avoid interruptions in power supply due to the boat's movement.

Additionally, proper ventilation is essential to prevent the marine inverter from overheating, especially during extended periods of use while underway. Adequate airflow around the inverter helps dissipate heat effectively and ensures optimal performance. Boat owners should also monitor battery levels closely to prevent excessive drain, especially during long journeys. By following these guidelines and practicing safe usage, boat owners can enjoy the benefits of using a marine inverte
