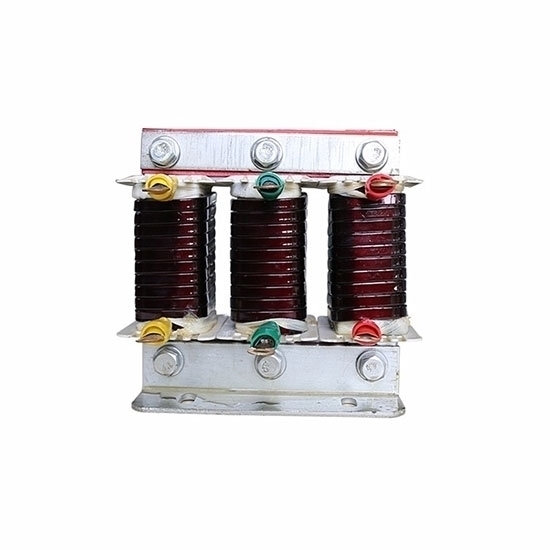

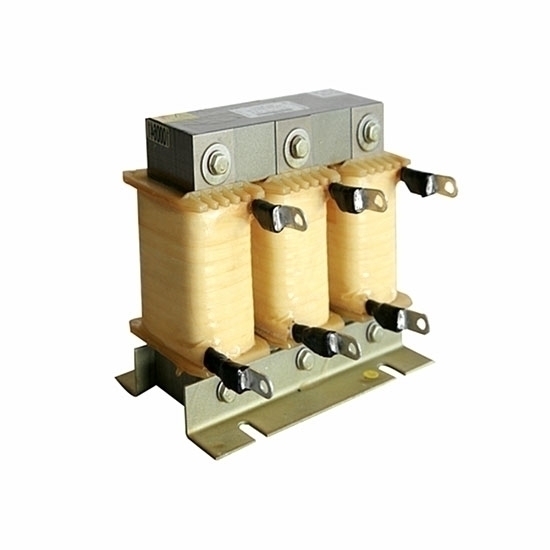

15 Hp (11 KW) AC Line Reactor, 3 Phase Input

15 Hp (11 KW) AC Line Reactor, 3 Phase Input

0 reviews • Write a review

from

$314.89

Ex Tax: $314.89

Stock: In Stock
Model: KOLAUT-ILR-011
Weight: 1.00
SKU: KOLAUT-ILR-011

Available Options

Short Description

Material

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Reactors are also called inductors. When a conductor is energized, a magnetic field is generated in a certain spatial range around it, so all current-carrying electrical conductors have a general sense of inductivity. However, the inductance of the energized long straight conductor is small, and the generated magnetic field is not strong. Therefore, the actual reactor is a wire wound into a solenoid form, which is called a hollow reactor; sometimes, in order to make the solenoid have a larger inductance, Insert the iron core into the solenoid, called the iron core reactor.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Basic	Model	KOLAUT-ACR-0030-0M47-0.4SC
	Recommended VFD Model	GK3000-4T0110G (15 hp three phase VFD)
	Phase	3 Phase
	Power	15 hp (11 kW)
	Weight	5 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	30 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.47 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

Dimension (±5mm)
L	D	W	W1	H	A×B
155mm	95mm	130mm	63mm	135mm	6×15
