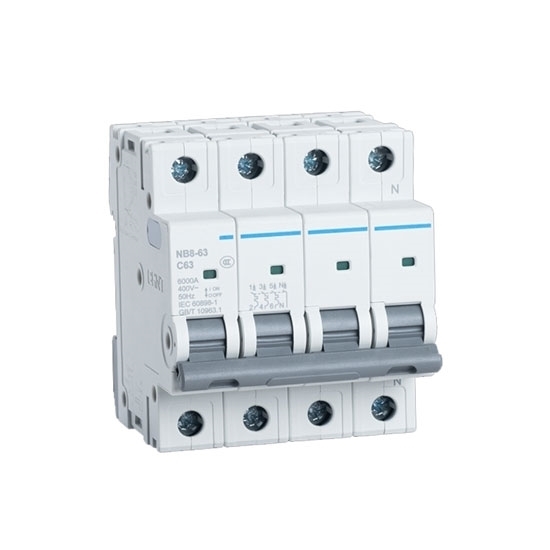

16 amp 4 pole miniature circuit breaker is equipped with a C curve trip characteristic, which provides a balanced response to both overload and short-circuit conditions. This design of the C16 mini MCB ensures the safety and longevity of electrical systems, effectively safeguarding equipment from potential electrical faults.

4 Pole MCB Breaker Information

• Rated Current: 16 amp
• Rated Voltage: 230/400V AC, 50Hz
• Number of poles: 4 pole
• 6 kA rated short-circuit breaking capacity
• Compliant with IEC standard
• C curve trip characteristic
• With overload protection and short circuit protection function

Technical Data

4 Pole MCB Breaker Dimensions (Unit: mm)

Details

Tips: 16 amp 4 pole miniature circuit breaker applications

A 16 amp 4-pole miniature circuit breaker (MCB) is typically used in industrial and commercial electrical systems for protecting circuits against overcurrent and short circuits. Its 4 pole configuration is ideal for three-phase systems with a neutral line, protecting all conductors in the circuit (three phases and neutral).

Common applications include:

• Power Distribution Panels: Protecting circuits that supply machinery or equipment, ensuring the safety of both electrical installations and operators.
• Motor Protection: Safeguarding three-phase motors that require simultaneous protection of all phases and the neutral.
• UPS Systems: Protecting uninterruptible power supplies, ensuring safe shutdown and preventing damage to sensitive electronics during faults.
• Renewable Energy Systems: In solar or wind power installations, providing overcurrent protection to the inverter and associated wiring.

The 16 amp rating indicates it’s suitable for medium-sized systems, offering reliable protection without unnecessary tripping. Always ensure the breaker’s ratings match the circuit load to avoid damage.
