2 Wire ceiling fan capacitor capacity value 2.5μF, voltage 450V AC, small fan capacitor can control the start and stop mechanism of different types of ceiling fan motors.

Specification

• Model: KOLAUT-FC-CBB61-025
• Capacity: 2.5μF
• Rated Voltage: 450V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/105/21
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film
• Dimension: 37(W) x 15(L) x 26(H)mm
• Certificate: CE, CQC

2.5μF Ceiling Fan Capacitor 2 Wire Wiring Diagram

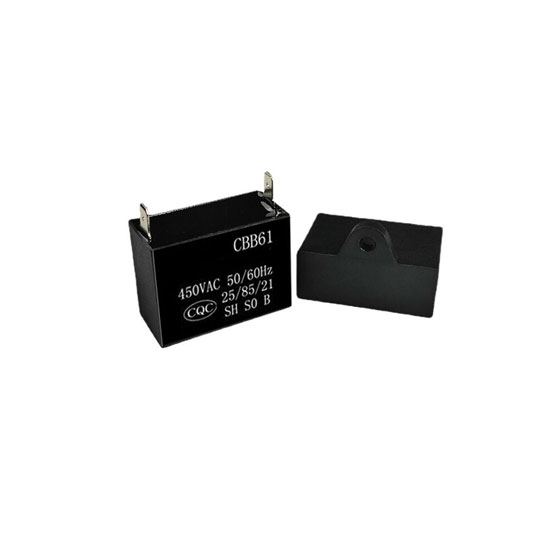

Ceiling Fan Capacitor Details

Tips: How to balance the fan blades of the ceiling fan?

Power off to remove the fan. First remove the blade, to a piece of the original not deformed as a guideline, the deformation of the blade overlap in the blade not deformed, you can find out the location of the deformation, it can be adjusted. After adjusting the blade installed in the rotor, the fan is lifted from the ground thirty, forty centimeters (convenient adjustment) on the ground to find a fixed point to measure the blade tail high, low point, three blade balance can be.
