- Stock: In Stock
- Model: KOLAUT-MDP-2HP
- Weight: 1.00
- SKU: KOLAUT-MDP-2HP

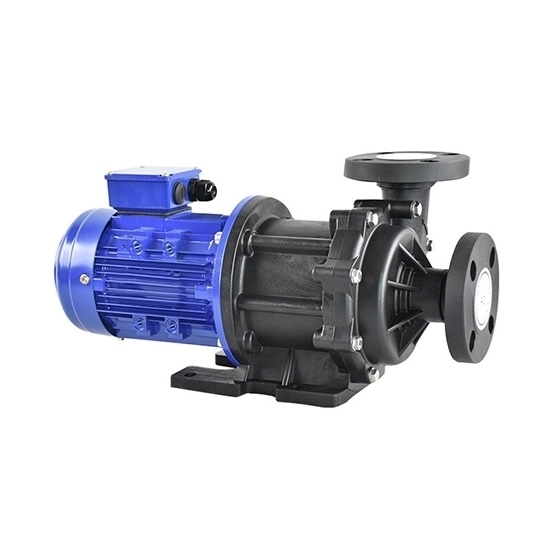

2 hp (1.5 kW) magnetic drive pump without seal, can achieve zero leakage, especially suitable for conveying flammable, explosive, corrosive liquid. It is used to require that the pump can only leak or even not leak the occasion.
Features:
- ETFE (carbon-fiber reinforced) wetted-end material.
- Able to handle many types of chemical and temperature up to 90 ℃.
- Available in flange connections.
Specification:
| Model | KOLAUT-352PW-F | |
| Specific Gravity | 1.2 | |
| Frequency | 50Hz, 60Hz | |
| Rated Voltage | 3-phase 380V (please contact us for other voltages) | |
| Pump performance at specific point (M-L/min) | 50Hz | 23-100 |
| 60Hz | 27-100 | |
| Motor Output | 2 HP (1.5 kW) | |
| Flange Size | 32 mm (outlet); 32 mm (inlet) | |
| Casing Material | ETFE | |
| Shaft Material | ceramic | |
| Bearing Material | carbon | |
| O-ring Material | FKM | |
| Interface Mode | thread, flange | |
| Net Weight | 38kg | |

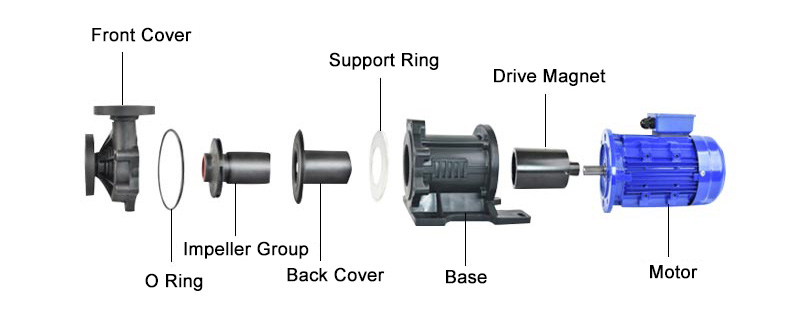

Structure:

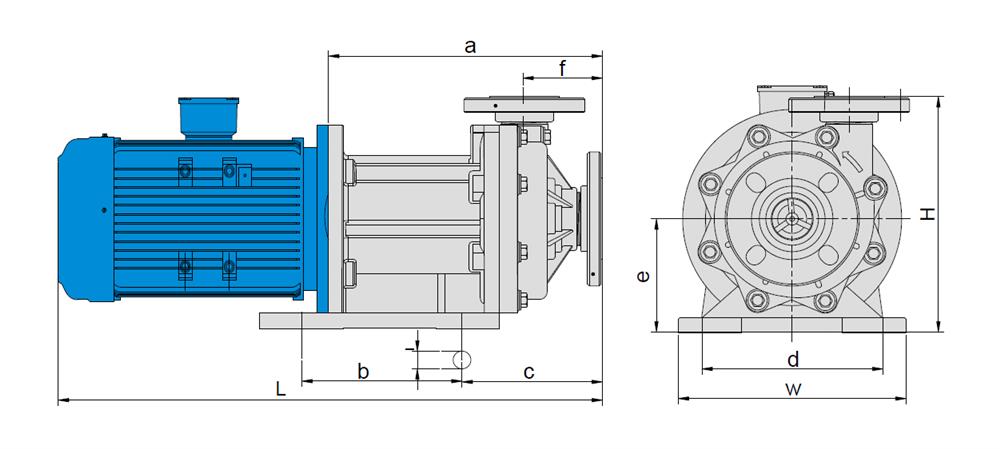

Dimension (Unit: mm)
| Model | W | H | L | a | b | c | d | e | f |
| 352PW-F | 160 | 242 | 505.5 | 222.5 | 132 | 155 | 130 | 120 | 78 |
Tips: Can Magnetic Drive Pump Runs Dry?
One of major limitations of magnetic drive pumps is the risk associated with running dry. Because the pumped liquid will act as lubricant and coolant, in case of dry run, the bearing and some other parts could overheat and eventually become damaged. However, some magnetic drive pumps are designed to handle short periods of dry running, but it's essential to check the specifications before operating the pump without liquid.
