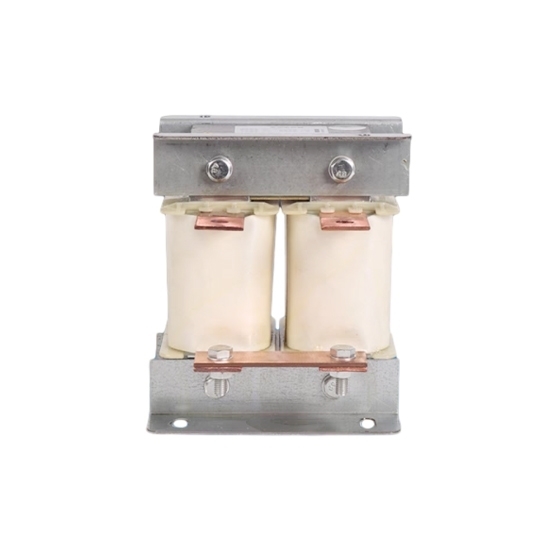

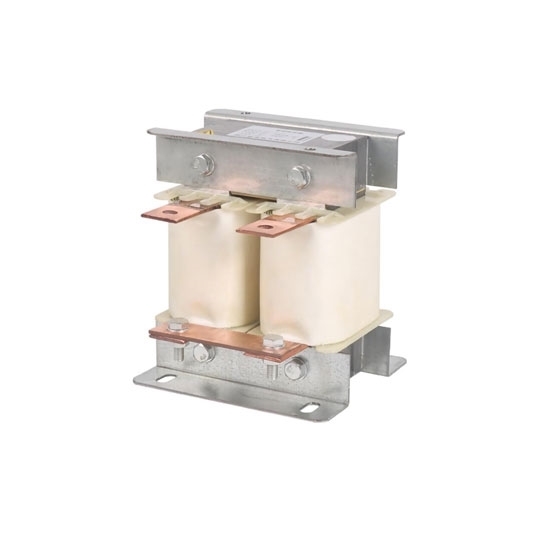

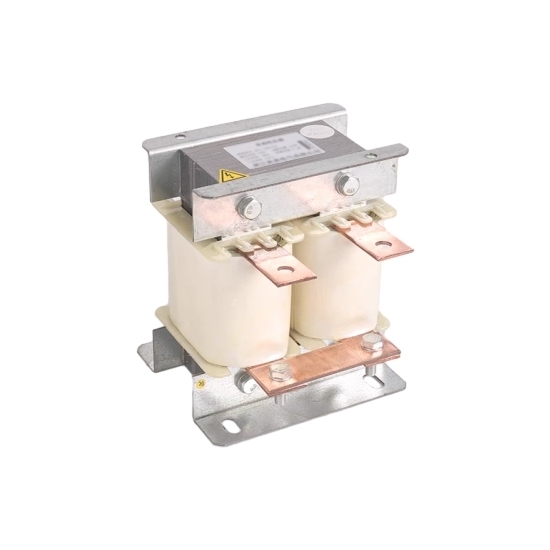

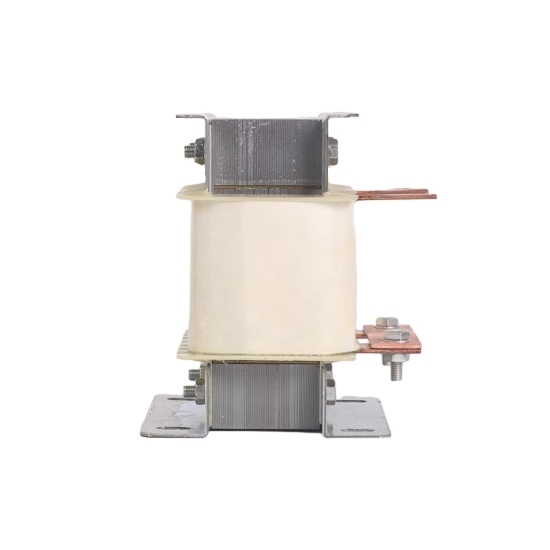

2 Hp (1.5 KW) DC Reactor, Single Phase

2 Hp (1.5 KW) DC Reactor, Single Phase
2 Hp (1.5 KW) DC Reactor, Single Phase
2 Hp (1.5 KW) DC Reactor, Single Phase
2 Hp (1.5 KW) DC Reactor, Single Phase
2 Hp (1.5 KW) DC Reactor, Single Phase
2 Hp (1.5 KW) DC Reactor, Single Phase
2 Hp (1.5 KW) DC Reactor, Single Phase
2 Hp (1.5 KW) DC Reactor, Single Phase
2 Hp (1.5 KW) DC Reactor, Single Phase
0 reviews • Write a review
from
$92.89
Ex Tax: $92.89
  • Stock: In Stock
  • Model: KOLAUT-DCR-2
  • Weight: 1.00
  • SKU: KOLAUT-DCR-2

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.5 KVA Single Phase Variac Voltage Regulator
Quickview
0.5 KVA Single Phase Variac Voltage Regulator
$169.58
Ex Tax:$169.58
Add to Cart Add to Wish List Compare this Product
1 KVA 3-Phase Autotransformer, 380V To 220/200V
Quickview
1 KVA 3-Phase Autotransformer, 380V To 220/200V
$873.69
Ex Tax:$873.69
Add to Cart Add to Wish List Compare this Product
1 KVA Isolation Transformer, Single Phase, 240V To 120V
Quickview
1 KVA Isolation Transformer, Single Phase, 240V To 120V
$784.36
Ex Tax:$784.36
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Automatic Voltage Stabilizer For Home
Quickview
1 KVA Single Phase Automatic Voltage Stabilizer For Home
$203.69
Ex Tax:$203.69
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Variac Voltage Regulator
Quickview
1 KVA Single Phase Variac Voltage Regulator
$256.32
Ex Tax:$256.32
Add to Cart Add to Wish List Compare this Product
1.5 KVA 3 Phase Variac Voltage Regulator
Quickview
1.5 KVA 3 Phase Variac Voltage Regulator
$589.39
Ex Tax:$589.39
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product

1.5kW VFD line reactor, DC smoothing reactor, single phase, rated operating voltage 400V-1200V, material can choose copper or aluminum.

Specification:

ModelKOLAUT-DCL-8
Phase1 Phase
Power Adapter1.5 kW (2 hp)
VFD Voltage Adapter220V-1200V (Contact us for other voltages)
Rated Current8A
Inductance5.3mH
Insulation GradeF.H
Dimension84*110*100mm (L*W*H)
Mounting Dimension70*70mm
Electric StrengthIron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistanceiron core-winding 1000VDC, Insulation resistance
≥100MV
Noise of ReactorLess than 35dB (measured from 1 meter away in horizon from reactor)
Degree of ProtectionIP00
Degree of Insulation> Class F
Weight2.5kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

Dimension (unit: mm)
Details

Tips: What is a DC reactor?

The DC reactor is mainly used for the DC side of the converter, and has more applications on general-purpose inverters. A DC current having an AC component flows through the reactor. The main purpose is to limit the AC component superimposed on the DC current to a specified value, keep the rectified current continuous, reduce the current ripple value, improve the input power factor, and suppress the harmonics generated by the converter.
