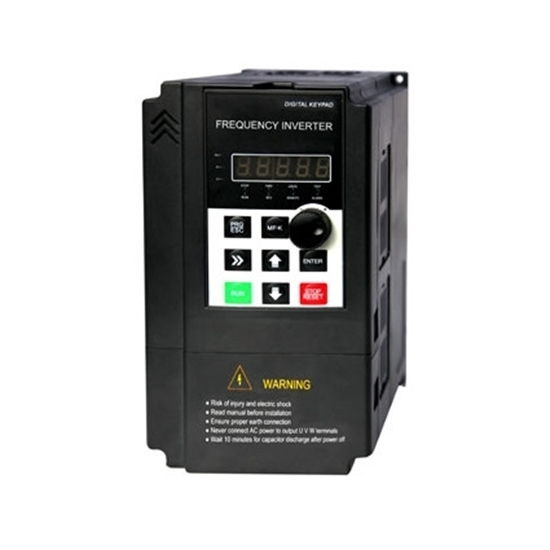

2 Hp VFD, Single Phase 120V Input, 1ph/3ph 220V Output

0 reviews • Write a review

from

$315.38

Ex Tax: $315.38

Stock: In Stock
Model: GK3000-SP1S1-1d5
Weight: 1.00
SKU: GK3000-SP1S1-1d5

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

From Same Category
Same Brand

Quickview

1 Hp (0.75 KW) VFD, 3 Phase 230V, 400V, 480V

$206.49

Ex Tax:$206.49

Add to Cart Add to Wish List Compare this Product

Quickview

1 Hp (0.75 KW) VFD, Single Phase Input & Output

$195.82

Ex Tax:$195.82

Add to Cart Add to Wish List Compare this Product

Quickview

1 Hp Non-Enclosure VFD, 1ph Input, 3ph Output

$142.46

Ex Tax:$142.46

Add to Cart Add to Wish List Compare this Product

Quickview

1 Hp VFD, 1-Phase 220V To 3-Phase 380V VFD

$309.15

Ex Tax:$309.15

Add to Cart Add to Wish List Compare this Product

2 hp (1.5 kW) VFD, single phase 110v/120v input to single phase 220v, 230v, 240v output, single phase to three phase, 7 amps.

Specification:

Basics	Model	EM15-SP1S1-1d5
	Capacity	2 hp (1.5 kW)
	Shipping weight	3 kg
	Dimension (W x H x D)	120205166 mm
I/O Feature	Rated current	7 A
	Input voltage	1 phase 120V AC ±15% (Set FE-00=0)
	Input frequency	50Hz/60Hz
	Output voltage	1 phase or 3 phase 220V AC ±15%
	Output frequency	0~320Hz (SFC)
Control Feature	Control mode	V/F control; vector control
	Communication	Offer RS485 communication interface, support MODBUS-RTU communication protocol
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%;
	Frequency precision	Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency;
	Frequency resolution	Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	smaller than 95%RH, non-condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Vibration	Less than 5.9 m/s2 (0.6 g)
	Cooling	forced air cooling
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: KOLAUT VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: Variable Frequency Drive vs Soft Starter

If you need to vary the speed of the driven load, then a VFD is definitely the choice. If you are looking to reduce the starting current and the starting torque of an induction motor, then a soft starter can be selected.
If energy savings (reduced speed) is the issue a VFD will almost always be the first choice, but again the driven load, (VT) and application require review and sizing considerations. If speed control is the consideration then a constant torque load will require a VFD. The motor basics we have had to live with, NEMA design A, B, C & D are there for a reason as one design doesn't fit all applications. The controller is just another tool to use within it's limitations to provide the desired result for an application.
Soft starter - considerably cheaper than VFDs, much more efficient, does not require harmonic mitigation, but draws 3 - 4 times start current and does not offer variable speed feature. Understanding the application and exactly what you are trying to achieve would be the most important factor.
