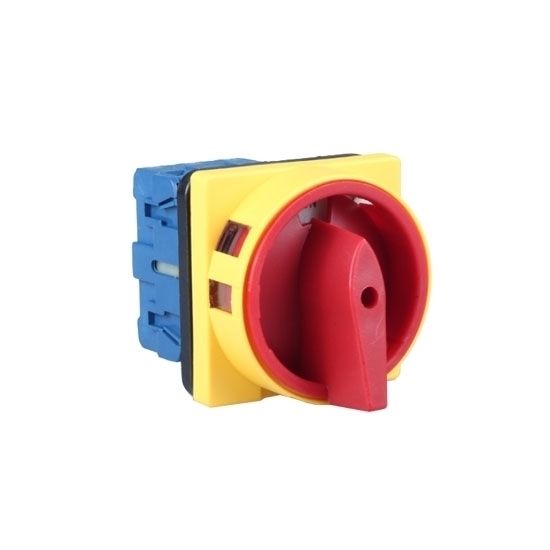

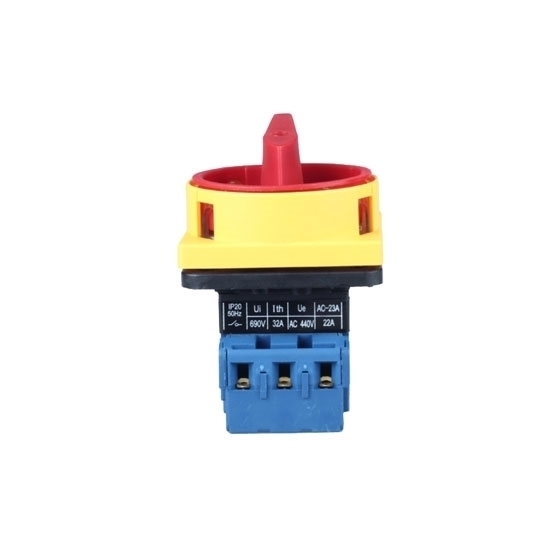

2 Position 40A Rotary Switch 3 Pole/4 Pole

2 Position 40A Rotary Switch 3 Pole/4 Pole
2 Position 40A Rotary Switch 3 Pole/4 Pole
2 Position 40A Rotary Switch 3 Pole/4 Pole
2 Position 40A Rotary Switch 3 Pole/4 Pole
2 Position 40A Rotary Switch 3 Pole/4 Pole
2 Position 40A Rotary Switch 3 Pole/4 Pole
2 Position 40A Rotary Switch 3 Pole/4 Pole
2 Position 40A Rotary Switch 3 Pole/4 Pole
2 Position 40A Rotary Switch 3 Pole/4 Pole
0 reviews • Write a review
from
$74.98
Ex Tax: $74.98
  • Stock: In Stock
  • Model: KOLAUT-WS3040
  • Weight: 1.00
  • SKU: KOLAUT-WS3040

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.0015μF 1250V Metal Film Capacitor
Quickview
0.0015μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 1250V Metal Film Capacitor
Quickview
0.001μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 630V Metal Film Capacitor
Quickview
0.001μF 630V Metal Film Capacitor
$0.13
Ex Tax:$0.13
Add to Cart Add to Wish List Compare this Product
0.01μF 100V Disc Ceramic Capacitor
Quickview
0.01μF 100V Disc Ceramic Capacitor
$1.04
Ex Tax:$1.04
Add to Cart Add to Wish List Compare this Product
0.01μF 1kV Disc Ceramic Capacitor
Quickview
0.01μF 1kV Disc Ceramic Capacitor
$1.09
Ex Tax:$1.09
Add to Cart Add to Wish List Compare this Product
0.022μF 1kV Disc Ceramic Capacitor
Quickview
0.022μF 1kV Disc Ceramic Capacitor
$1.29
Ex Tax:$1.29
Add to Cart Add to Wish List Compare this Product
0.022μF 2000V Metal Film Capacitor
Quickview
0.022μF 2000V Metal Film Capacitor
$0.28
Ex Tax:$0.28
Add to Cart Add to Wish List Compare this Product
0.033μF 1600V Metal Film Capacitor
Quickview
0.033μF 1600V Metal Film Capacitor
$0.35
Ex Tax:$0.35
Add to Cart Add to Wish List Compare this Product

Rotary switch for standard low voltage control/load switching and ultra low voltage and electronic applications, 3 pole/4 pole is optional, rated currrent 40 amp, long service life, manufacturer direct sales.

Specification:

ModelKOLAUT-WS3040
Rated Thermal Current40A
Rated Working Voltage240V440V
Rated Working CurrentAC-21A40A40A
AC-22A40A40A
AC-23A30A, 7.5 kW30A, 15 kW
AC-322A, 7.5 kW22A, 11 kW
Pole3 Pole/4 Pole
Position2 Position
Type of CurrentAC 50Hz
Positions of Main ContactOn or Off
Rated Duty8 Hours every day, operational efficiency 30 times/hour

Dimensions

1. Default version

Overall Dimension (mm)Mounting Dimension (mm)
ABCKLEFD1D2
64506416674848φ10φ4.2

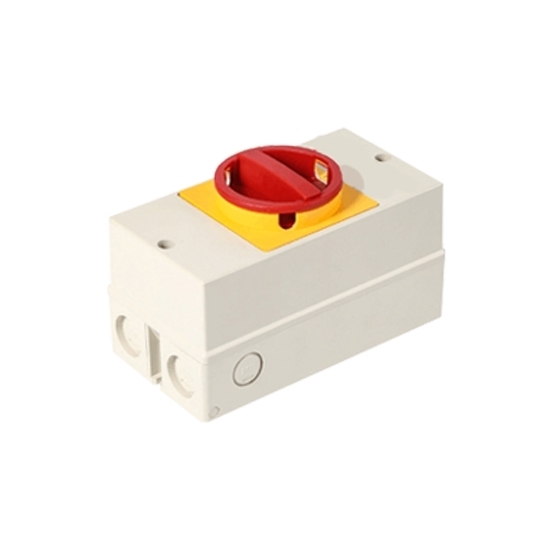

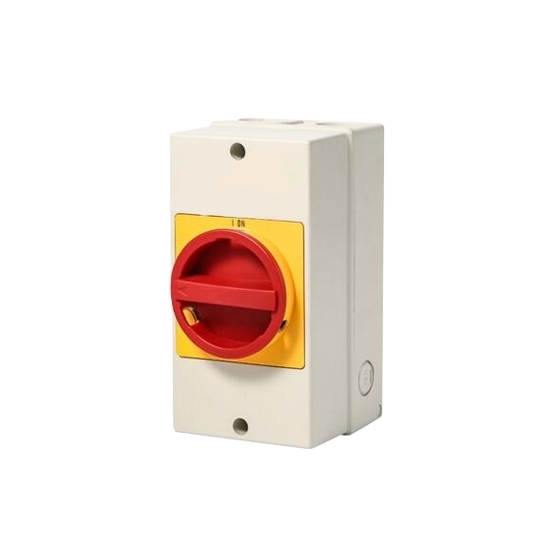

2. IP65 version

Overall Dimension (mm)Mounting Dimension (mm)
D3D4MNPA1A2BD2
φ29φ2310095190178----φ4.2

Rotary Switch Diagram

Working Conditions

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24 h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.
