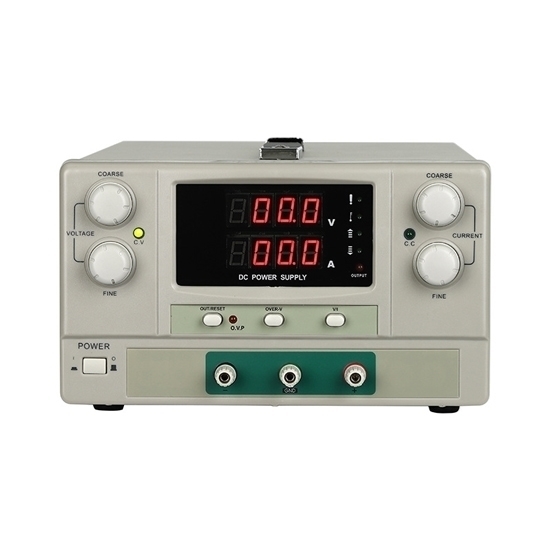

20A 30V 600W Variable Linear DC Power Supply

20A 30V 600W Variable Linear DC Power Supply
20A 30V 600W Variable Linear DC Power Supply
20A 30V 600W Variable Linear DC Power Supply
20A 30V 600W Variable Linear DC Power Supply
20A 30V 600W Variable Linear DC Power Supply
0 reviews • Write a review
from
$651.59
Ex Tax: $651.59
  • Stock: In Stock
  • Model: KOLAUT-DCPS3020
  • Weight: 1.00
  • SKU: KOLAUT-DCPS3020

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.5 KVA Single Phase Variac Voltage Regulator
Quickview
0.5 KVA Single Phase Variac Voltage Regulator
$169.58
Ex Tax:$169.58
Add to Cart Add to Wish List Compare this Product
1 KVA 3-Phase Autotransformer, 380V To 220/200V
Quickview
1 KVA 3-Phase Autotransformer, 380V To 220/200V
$873.69
Ex Tax:$873.69
Add to Cart Add to Wish List Compare this Product
1 KVA Isolation Transformer, Single Phase, 240V To 120V
Quickview
1 KVA Isolation Transformer, Single Phase, 240V To 120V
$784.36
Ex Tax:$784.36
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Automatic Voltage Stabilizer For Home
Quickview
1 KVA Single Phase Automatic Voltage Stabilizer For Home
$203.69
Ex Tax:$203.69
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Variac Voltage Regulator
Quickview
1 KVA Single Phase Variac Voltage Regulator
$256.32
Ex Tax:$256.32
Add to Cart Add to Wish List Compare this Product
1.5 KVA 3 Phase Variac Voltage Regulator
Quickview
1.5 KVA 3 Phase Variac Voltage Regulator
$589.39
Ex Tax:$589.39
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Output
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Output
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product

20 amp 30 volt variable linear DC power supply is designed with low ripple and high precision to step down an AC input voltage to produce a lower DC output voltage, which can be used for scientific research, product development, laboratories, schools and electronic production lines.

Specification

ModelKOLAUT-JK3020S
Input Voltage110V or 220V AC (+/- 10%)
Output Voltage RangeDC 0-30V
Output Current Range0-20A
Output Power600W
Frequency50Hz/60Hz
Output TypeDual
Display3 digit
Display Accuracy≤ ±0.1%＋2d
Voltage Display Resolution100mV
Current Display Resolution100mA
Efficiency>65%
Voltage Regulation
Load Regulation (CV)1×10-3+8mV
Line Regulation (CV)1×10-3+3mV
Ripple & Noise (P-P)0.5mV
Temperature Coefficient300PPｍ/℃
Current Regulation
Load Regulation (CC)≤5mA
Line Regulation (CC)2×10-3+3mA
Temperature Coefficient500PPｍ/℃
Others
ProtectionOver Load and Over Voltage Protection
Recovery Time≤100µs
Operating Ambient0℃ to + 40℃/ 85%RH
Storage Ambient-10℃ to + 80℃/ 80%RH
Warranty12 Months

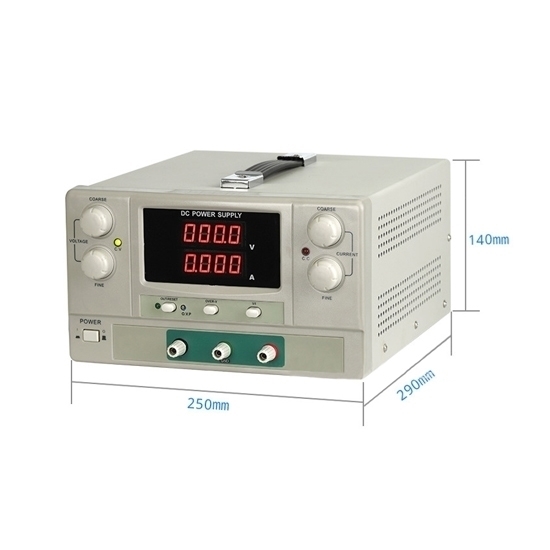

Size303 (L) x 255 (W) x 155 (H) mm
Weight15kg


Detail

Tips: How do I choose the right variable linear DC power supply for my needs?

When choosing a variable linear DC power supply, consider voltage and current requirements, ensuring the unit provides sufficient power for your applications. Check for voltage and current adjustment range, ensuring it covers your desired specifications. Look for precise controls and display accuracy for reliable output. Consider additional features such as overcurrent protection, short-circuit protection, and temperature stability. Ensure the power supply is from a reputable manufacturer for reliability. Factor in portability, noise levels, and ease of use. Lastly, evaluate the long-term durability and warranty to ensure the investment aligns with your needs. Careful consideration of these factors will help you select a variable linear DC power supply that meets your specific requirements.
