Note: This needle valve cannot be used for drinking water.

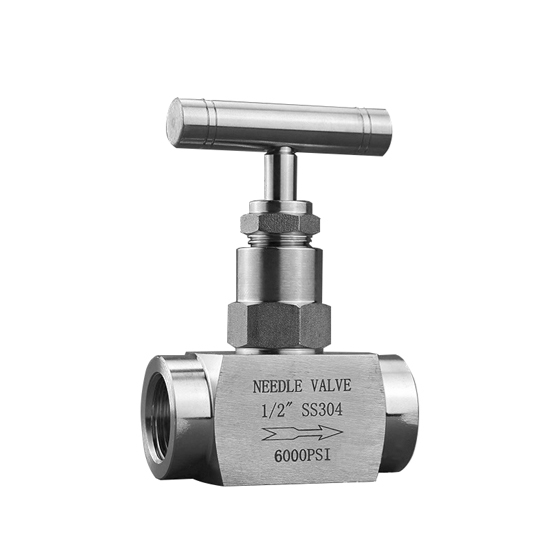

Buy an KOLAUT stainless needle valve online, the pin valve with 3/8 inch thread, a diameter of 5mm, connection thread size of DN10, max. pressure is 6000 psi and the working temperature is -20 to 180 °C. The shut-off valve's thread guarantees the stable performance of the connecting, good sealing and no leakage.

Specification

• Model: KOLAUT-NV-DN10
• Size: 3/8 inch
• Connection thread size: DN10
• Needle valve diameter: 5mm
• Nominal pressure: 40 MPa
• Material: 304 Stainless Steel
• Working pressure: ≤420 bar
• Working temperature: -20~180℃
• Installation method: Screw connection
• Medium: Gas, liquid

Features

• Smooth and accurate flow control
• With a very compact design and reliable leak tight shut off
• High pressures up to 6000 psi
• Wide temperature range from -20 up to 180°C.
• Suited for aggressive fluids thanks to the 304 stainless steel

Dimension

Stainless Steel Needle Valve Application

Tips: What is the difference between a globe valve and a needle valve?

What is the difference between a globe valve and a needle valve? A needle valve is a special kind of globe valve in which the plug is needle-shaped rather than disc shaped. A needle valve is able to provide a very fine level of flow control which is useful for precision equipment.
