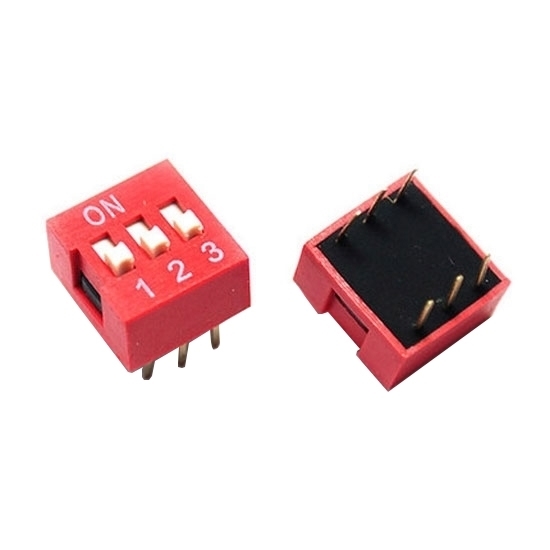

3 Position DIP Switch, 6 Pin, SPST

3 Position DIP Switch, 6 Pin, SPST
3 Position DIP Switch, 6 Pin, SPST
0 reviews • Write a review
from
$9.09
Ex Tax: $9.09
  • Stock: In Stock
  • Model: KOLAUT-DIP-3P
  • Weight: 1.00
  • SKU: KOLAUT-DIP-3P

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.0015μF 1250V Metal Film Capacitor
Quickview
0.0015μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 1250V Metal Film Capacitor
Quickview
0.001μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 630V Metal Film Capacitor
Quickview
0.001μF 630V Metal Film Capacitor
$0.13
Ex Tax:$0.13
Add to Cart Add to Wish List Compare this Product
0.01μF 100V Disc Ceramic Capacitor
Quickview
0.01μF 100V Disc Ceramic Capacitor
$1.04
Ex Tax:$1.04
Add to Cart Add to Wish List Compare this Product
0.01μF 1kV Disc Ceramic Capacitor
Quickview
0.01μF 1kV Disc Ceramic Capacitor
$1.09
Ex Tax:$1.09
Add to Cart Add to Wish List Compare this Product
0.022μF 1kV Disc Ceramic Capacitor
Quickview
0.022μF 1kV Disc Ceramic Capacitor
$1.29
Ex Tax:$1.29
Add to Cart Add to Wish List Compare this Product
0.022μF 2000V Metal Film Capacitor
Quickview
0.022μF 2000V Metal Film Capacitor
$0.28
Ex Tax:$0.28
Add to Cart Add to Wish List Compare this Product
0.033μF 1600V Metal Film Capacitor
Quickview
0.033μF 1600V Metal Film Capacitor
$0.35
Ex Tax:$0.35
Add to Cart Add to Wish List Compare this Product

Wholesale price 3 position 3 way electronic DIP switch is a dual in-line package switch that can be mounted directly on a circuit board to activate or deactivate different electronic circuits.

Specification

ModelKOLAUT-DIP-3P
Spacing2.54mm
Number of Switch3
Number of Pin6
Maximum Operating Force8N
Push Button Stroke2mm
Operating Temperature-20℃~+70℃
Storage Temperature-40℃~+85℃
Contact ResistanceInitial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance100MΩ, 500VDC
Compressive Strength500VAC/1min
Interpolar Capacitance5pF
LoopSPST (Single Pole Single Throw)
Electrical LifeTested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated CurrentDoes not Switch Frequently10mA, Withstand Voltage 50V DC
Switch Frequently25mA, Withstand Voltage 24V DC
Weight0.1kg

 Dimensions (Unit: mm)

Tips: How to use the DIP switch?

The DIP switch cannot directly control the stepper motor, it needs a stepper driver. The principle of the DIP switch is like the parallel connection of resistors. The number 8421 corresponds to the resistance value of 1/8, 1/4, 1/2, 1 in turn, which can also be measured with a multimeter. The DIP switch is equivalent to a switch value. When it is turned ON, it means it is connected, and when it is OFF it means it is disconnected. In digital circuits, 0 and 1 are usually used for binary output.
