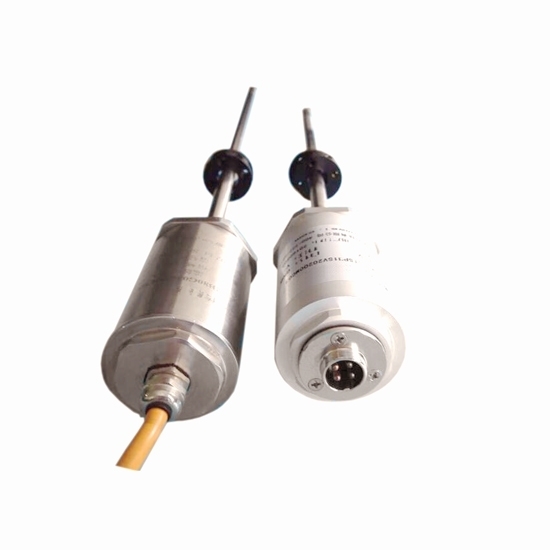

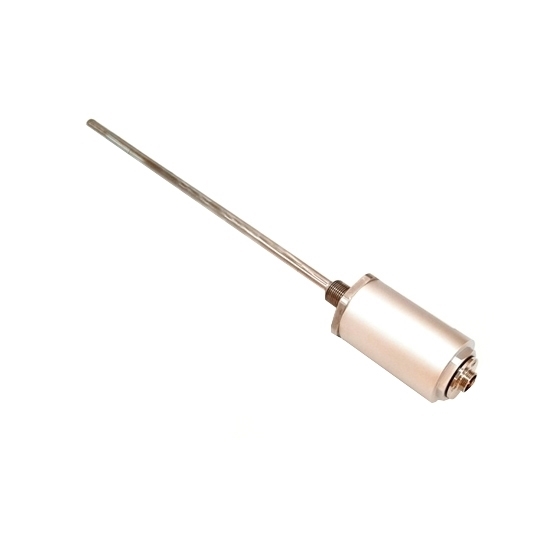

300mm Linear Displacement Sensor For Blow Molding Machine

300mm Linear Displacement Sensor For Blow Molding Machine
300mm Linear Displacement Sensor For Blow Molding Machine
300mm Linear Displacement Sensor For Blow Molding Machine
300mm Linear Displacement Sensor For Blow Molding Machine
300mm Linear Displacement Sensor For Blow Molding Machine
0 reviews • Write a review
from
$929.86
Ex Tax: $929.86
  • Stock: In Stock
  • Model: KOLAUT-MSD-0300
  • Weight: 1.00
  • SKU: KOLAUT-MSD-0300

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0-10V Signal Isolator, 1/2 Outputs
Quickview
0-10V Signal Isolator, 1/2 Outputs
$94.86
Ex Tax:$94.86
Add to Cart Add to Wish List Compare this Product
1" Digital Flow Switch For Water
Quickview
1" Digital Flow Switch For Water
$446.39
Ex Tax:$446.39
Add to Cart Add to Wish List Compare this Product
1-phase AC Current Transducer, 0-1A/5A/10A/20A
Quickview
1-phase AC Current Transducer, 0-1A/5A/10A/20A
$175.54
Ex Tax:$175.54
Add to Cart Add to Wish List Compare this Product
1-phase AC Voltage Transducer, 0~120V/300V/450V/600V
Quickview
1-phase AC Voltage Transducer, 0~120V/300V/450V/600V
$175.54
Ex Tax:$175.54
Add to Cart Add to Wish List Compare this Product
1/2" Digital Flow Switch For Air
Quickview
1/2" Digital Flow Switch For Air
$231.79
Ex Tax:$231.79
Add to Cart Add to Wish List Compare this Product
1/2" Digital Flow Switch For Water
Quickview
1/2" Digital Flow Switch For Water
$307.99
Ex Tax:$307.99
Add to Cart Add to Wish List Compare this Product
1000mm Level Sensors For Sewage Disposal System
Quickview
1000mm Level Sensors For Sewage Disposal System
$979.86
Ex Tax:$979.86
Add to Cart Add to Wish List Compare this Product

Magnetostrictive displacement sensor with measuring range 300mm is used for the liquid level preset and feedback, such as the liquid level of blow molding machine hydro-cylinder. Magnetostrictive sensors also can be used in most industrial automation systems.

Specification:

BasicsModelKOLAUT-MSD-0300
Measuring range0~300 mm
Shipping weight2 kg
Length499.3 mm
Diameter51 mm
Technical parametersLinearity≤0.05%FS
Repeatability≤0.005%FS
Resolution ratio≤0.001%FS
Hysteresis≤0.001%FS
Working Voltage24VDC
Working currentVoltage output /digital output type≤16mA; Current output type≤35mA
Protection type *Normal type, Explosion-proof type, Anti-corrosion type
Output signal *0~5V, 0~10V, 4~20mA, RS485, SSI gray code signal
Measuring rod material0Cr18Ni9 (304), or 316L stainless steel (customized)
Measuring rod diameterФ10mm
Electronic bin material1Cr18Ni9 (304)
304 and PTFE casing outside (Anti-corrosion type, customized)
1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, customized)
Connecting screw thread *M18×1.5, M20×1.5, 3/4-16UNF
Electrical connection *PVC shielded cable, circular connector (not applicable to explosion-proof type)
Measuring rod pressure40MPa, 70MPa (Explosion-proof type)
TemperatureT1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
Buffer areaFront-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
Vibration100g, IEC standards 68-2-715g/ 10-2000Hz, IEC standards 68-2-6
Protection ClassIP67
Explosion-proof levelExplosion-proof type: EXd II BT5

Installation diagram (unit: mm):
1. PG7 connection

2. Explosion-proof connection

3. External installation

Tips: Parallelism and angle of magnetostrictive sensor
When installing the magnetostrictive linear displacement sensor, the centering should be very good. However, the error of ±0.5mm is allowed for the parallelism while that of ±12° is allowed for the angle. In case of large error of parallelism and angle, the display values will fluctuate. Then, the parallelism and angle should be adjusted.
