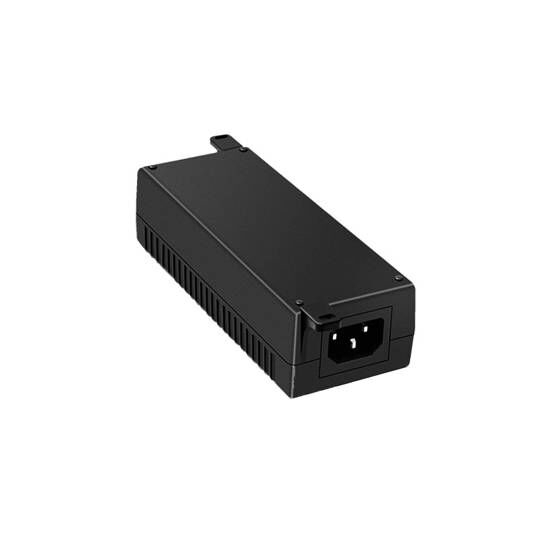

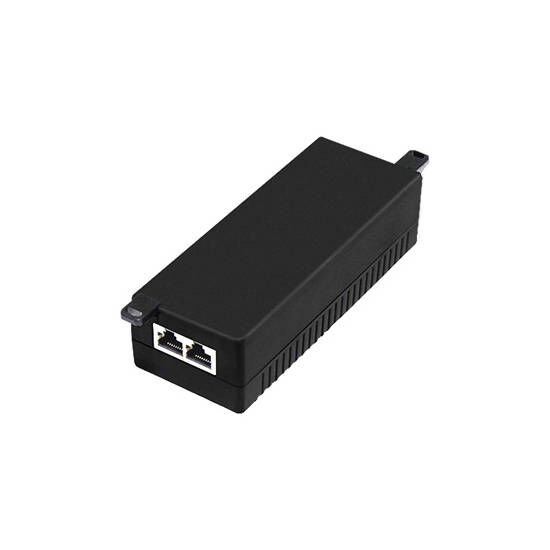

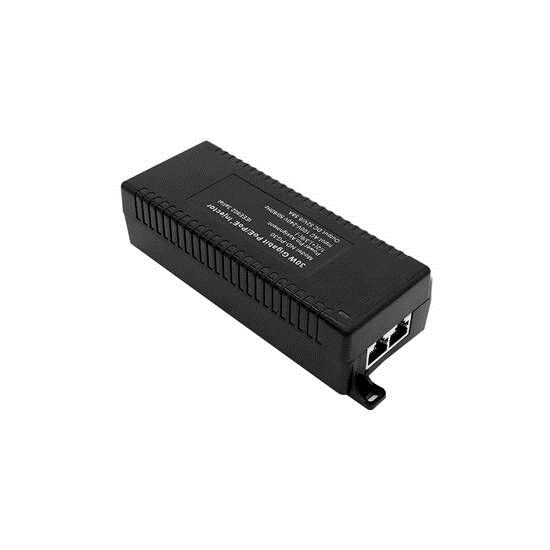

Our PoE Gigabit injector adapter offers excellent compatibility with both 802.3af and 802.3at standards, allowing compatibility with a wide range of POE-enabled devices. The compact power over ethernet injector is suitable for a variety of applications including IP cameras, wireless access points and VoIP telephony.

Specification

• Model: KOLAUT-PG-30
• Input Voltage: AC110-240V
• Output Voltage: DC52V/0.58A
• Port Definition: 1 Gigabit PoE port + 1 Gigabit RJ45 network port + 1 AC power connector
• Network Protocol: Standard IEEE802.3af/at
• POE Power: 30W(max)
• Power Supply Core: 1/2(+),3/6(-)
• Network Transmission: 1/2,3/6
• Transmission Medium: Cat5E, Cat6 or above (≤100m)
• Dimensions: 142*55*40 mm
• Weight: 0.4KG (including AC cable)
• Working Temperature: - 10°C~60°C

Features

• The Gigabit PoE adapter housing is made of PC+ABS fire-retardant and environmentally friendly material, which is resistant to wear and pressure.
• 30W PoE injector supports Gigabit network port, standard IEEE803.3AF/AT protocol.
• Green light for normal power supply, yellow light for POE normal power supply.
• The PoE injector adapter is supplied with lugs at the top and bottom to support wall mounting.

Dimension (unit: mm)

Plug Options

Wiring Diagram

Applications

PoE injectors are commonly used in various applications, such as powering IP cameras and wireless access points over Ethernet cables. They provide a convenient and cost-effective solution for delivering both power and data to these network devices.

Tips: What is a PoE injector?

A PoE (Power over Ethernet) injector is a device used to supply power and data connectivity to network devices over a single Ethernet cable. It enables the transmission of electrical power along with data signals to PoE-compatible devices, such as IP cameras, wireless access points, VoIP phones, and other networked devices.

The PoE injector serves as a power source, injecting DC voltage into the Ethernet cable, which is then received by the PoE-enabled device on the other end. This eliminates the need for a separate power cable and allows for easier installation and flexibility in device placement, especially in locations where power outlets may be limited or not easily accessible.
