32 Amp Mechanical Interlock AC Contactor

32 Amp Mechanical Interlock AC Contactor
32 Amp Mechanical Interlock AC Contactor
32 Amp Mechanical Interlock AC Contactor
32 Amp Mechanical Interlock AC Contactor
32 Amp Mechanical Interlock AC Contactor
32 Amp Mechanical Interlock AC Contactor
32 Amp Mechanical Interlock AC Contactor
32 Amp Mechanical Interlock AC Contactor
32 Amp Mechanical Interlock AC Contactor
0 reviews • Write a review
from
$91.29
Ex Tax: $91.29
  • Stock: In Stock
  • Model: KOLAUT-ACCON-32N
  • Weight: 1.00
  • SKU: KOLAUT-ACCON-32N

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.0015μF 1250V Metal Film Capacitor
Quickview
0.0015μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 1250V Metal Film Capacitor
Quickview
0.001μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 630V Metal Film Capacitor
Quickview
0.001μF 630V Metal Film Capacitor
$0.13
Ex Tax:$0.13
Add to Cart Add to Wish List Compare this Product
0.01μF 100V Disc Ceramic Capacitor
Quickview
0.01μF 100V Disc Ceramic Capacitor
$1.04
Ex Tax:$1.04
Add to Cart Add to Wish List Compare this Product
0.01μF 1kV Disc Ceramic Capacitor
Quickview
0.01μF 1kV Disc Ceramic Capacitor
$1.09
Ex Tax:$1.09
Add to Cart Add to Wish List Compare this Product
0.022μF 1kV Disc Ceramic Capacitor
Quickview
0.022μF 1kV Disc Ceramic Capacitor
$1.29
Ex Tax:$1.29
Add to Cart Add to Wish List Compare this Product
0.022μF 2000V Metal Film Capacitor
Quickview
0.022μF 2000V Metal Film Capacitor
$0.28
Ex Tax:$0.28
Add to Cart Add to Wish List Compare this Product
0.033μF 1600V Metal Film Capacitor
Quickview
0.033μF 1600V Metal Film Capacitor
$0.35
Ex Tax:$0.35
Add to Cart Add to Wish List Compare this Product

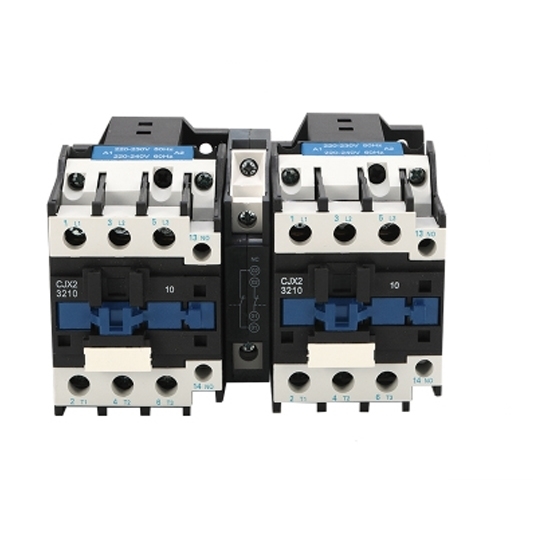

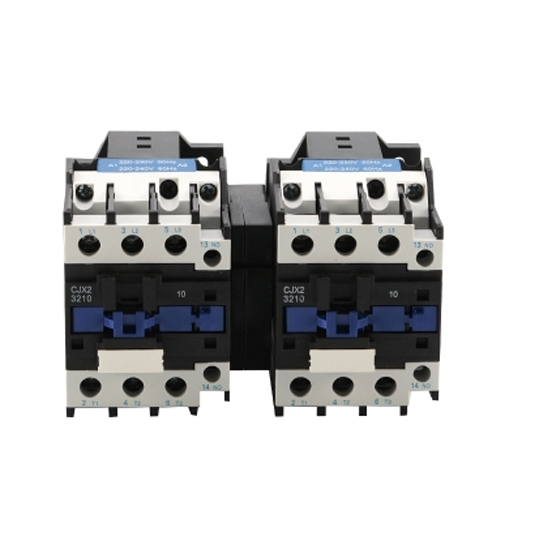

32A AC magnetic reversing contactor with mechanical interlock is suitable for using in the circuits (rated voltage 24V, 36V, 48V to 380V AC 50Hz or 60Hz). The mechanical interlock is an interference type which locks at the beginning of the stroke of any AC contactor.

Specification

ModelKOLAUT-CJX2-32N
Rated Operational Current380VAC-332A
AC-412A
660VAC-321A
AC-47.5A
Conventional Heating Current50A
Rated Insulation Voltage690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)220V7.5kW
380V15kW
660V18.5kW
Operational FrequencyElectric LifeAC-3600 times/h
AC-4150 times/h
Mechanical Life3600 times/h
Service LifeElectric Life (104 Operations)AC-380
AC-420
Mechanical Life (104 Operations)800
Matching Fusing ModelRT16-50
Average Power Consumption (20℃) @ 50HzPick-up110VA
Holding11VA
Contact Form (Optional)3P (Additional 1NO Auxiliary Contact) or 4P
Rail Size35mm
Ambient Temperature-5℃~+40℃
Altittude≤2000m
Class of PollutionClass 3
Installation CategoryⅢ

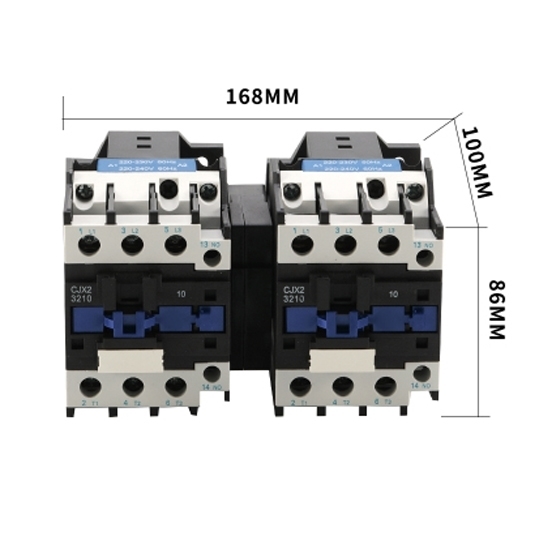

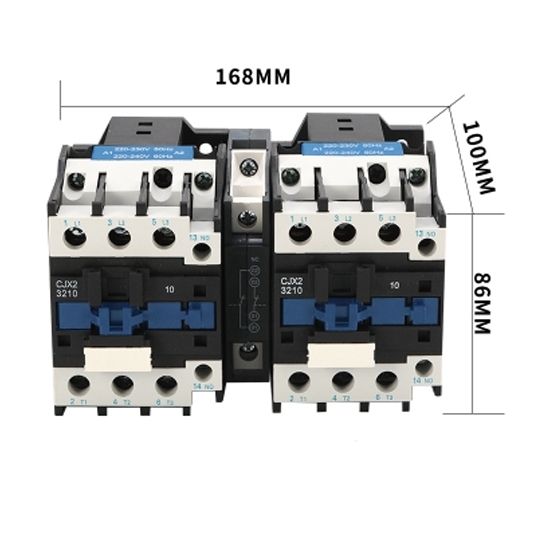

Dimensions168 x 86 x 100mm
Weight1.5kg

Tips: Working principle of mechanical interlock AC contactor

AC contactor interlock is a control method that uses the auxiliary set of contacts of the contactor to prohibit closing of another contact. The auxiliary normally closed contact linked with the main contact is used to connect in series with the control circuit of another contactor. When the contactor is closed, the control circuit of the other contactor is forcibly opened.
