4 Axis SCARA Robot, 450mm Arm Length, 2kg Load

4 Axis SCARA Robot, 450mm Arm Length, 2kg Load
4 Axis SCARA Robot, 450mm Arm Length, 2kg Load
4 Axis SCARA Robot, 450mm Arm Length, 2kg Load
4 Axis SCARA Robot, 450mm Arm Length, 2kg Load
Free Shipping
4 Axis SCARA Robot, 450mm Arm Length, 2kg Load
4 Axis SCARA Robot, 450mm Arm Length, 2kg Load
4 Axis SCARA Robot, 450mm Arm Length, 2kg Load
4 Axis SCARA Robot, 450mm Arm Length, 2kg Load
4 Axis SCARA Robot, 450mm Arm Length, 2kg Load
0 reviews • Write a review
from
$7,425.38
Ex Tax: $7,425.38
  • Stock: In Stock
  • Model: KOLAUT-SCARA-450
  • Weight: 1.00
  • SKU: KOLAUT-SCARA-450

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (750W) Oil Mist Eliminator, 1200Pa, 800 M³/h
Quickview
1 Hp (750W) Oil Mist Eliminator, 1200Pa, 800 M³/h
$755.08
Ex Tax:$755.08
Add to Cart Add to Wish List Compare this Product
1 Hp Small Air Compressor, 115 PSI, 2 Gallon
Quickview
1 Hp Small Air Compressor, 115 PSI, 2 Gallon
$489.08
Ex Tax:$489.08
Add to Cart Add to Wish List Compare this Product
1 Ton Air Cooled Industrial Water Chiller
Quickview
1 Ton Air Cooled Industrial Water Chiller
$3,635.67
Ex Tax:$3,635.67
Add to Cart Add to Wish List Compare this Product
1.5 Hp 11 Gallon 115 PSI Belt Driven Air Compressor
Quickview
1.5 Hp 11 Gallon 115 PSI Belt Driven Air Compressor
$751.08
Ex Tax:$751.08
Add to Cart Add to Wish List Compare this Product
1.5 Ton Air Cooled Industrial Water Chiller
Quickview
1.5 Ton Air Cooled Industrial Water Chiller
$4,040.84
Ex Tax:$4,040.84
Add to Cart Add to Wish List Compare this Product
1/2 Ton Air Cooled Industrial Water Chiller
Quickview
1/2 Ton Air Cooled Industrial Water Chiller
$1,576.92
Ex Tax:$1,576.92
Add to Cart Add to Wish List Compare this Product
10 HP 8 Ton Air Cooled Industrial Water Chiller
Quickview
10 HP 8 Ton Air Cooled Industrial Water Chiller
$9,335.38
Ex Tax:$9,335.38
Add to Cart Add to Wish List Compare this Product
100L Steam Autoclave Sterilizer
Quickview
100L Steam Autoclave Sterilizer
$6,329.37
Ex Tax:$6,329.37
Add to Cart Add to Wish List Compare this Product

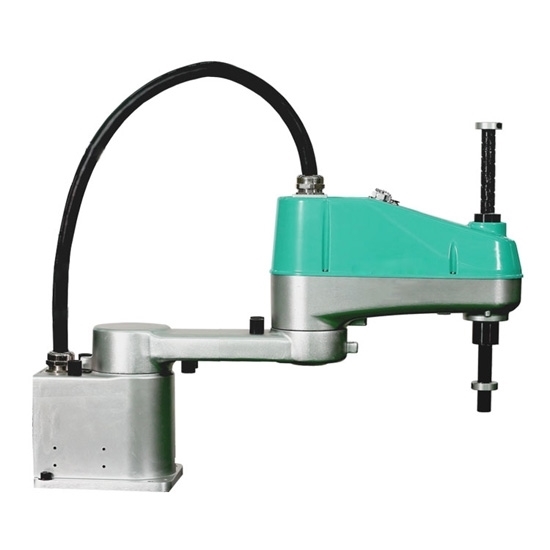

450mm Arm Length, 2kg Load, 4 Axis SCARA Robot runs from single phase AC 220±10%, 50/60Hz power system, good repeatability for precision assembly, compact structure and low cost, high payload for using tools for screw-driving and adhesive application.

Specifications

ModelKOLAUT-TS5-450
Number of Axis4
Arm LengthFull length450mm
First arm200mm
Second arm250mm
LoadRated load2kg
Max. load5kg
Axis 4 moment of inertia0.015kg.m2
Working EnvelopeAxis 1±125°
Axis 2±142°
Axis 3185mm
Axis 4±360°
Repeated Positioning AccuracyX-Y±0.05mm
Axis 3±0.05mm
Axis 4±0.05mm
Max. SpeedAxis 1≤375°/sec
Axis 2≤520°/sec
Axis 3≤833°/sec
Axis 4≤1500°/sec
Environmental RequirementsTemperature5℃-40℃
Humidity10%-80% (no condensation)
Arm Body I/O Line0.2*5 core
Arm Body Tracheal InterfaceΦ6*2
Arm Weight (excluding electric control box, extension cord)15kg
Power SupplySingle phase AC 220±10%, 50/60Hz
Protection LevelIP21
Installation MethodVertical mount

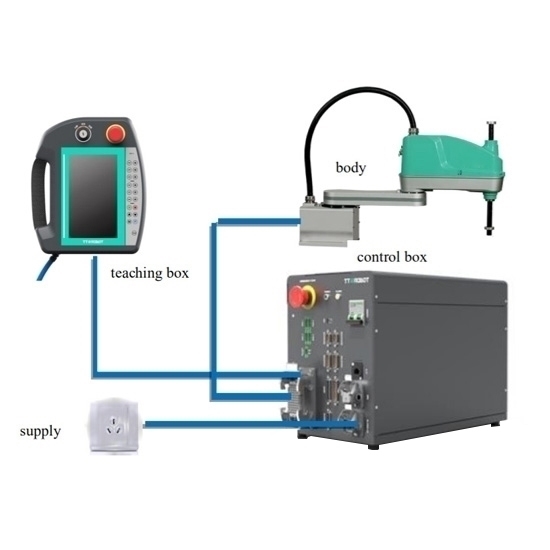

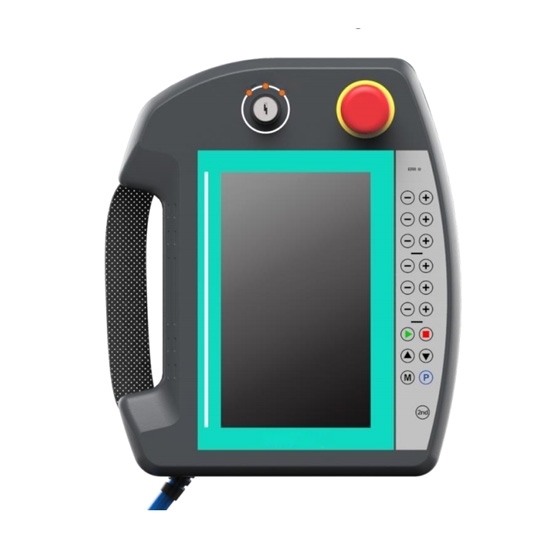

Package Included1 x SCARA robot, 1 x control box, 1 x teaching box (total weight: 45kg)

Note:

*Using KOLAUT SCARA robots require more robot programming knowledge and automation equipment experience.
*You can install it yourself after buying our robot.
*If you have not used similar equipment before and need more buying guides, please feel free to contact us.

Dimension (Unit: mm)

Working Range (Unit: mm)

Tips:

When teaching within the range of SCARA robot action, please observe the following items.

  1. Keep looking at the SCARA robot from the front.
  2. Comply with operating procedures.
  3. Considering the strain scheme of robot suddenly moving to its orientation.
  4. Ensure that shelters are set up in case of emergencies.

Accidental entry into the range of motion of the robot or contact with the robot may lead to personal injury accidents. In addition, in case of abnormality, please press the emergency stop key immediately (the emergency stop key is located at the front door of the control cabinet and the right side of the teaching box).
