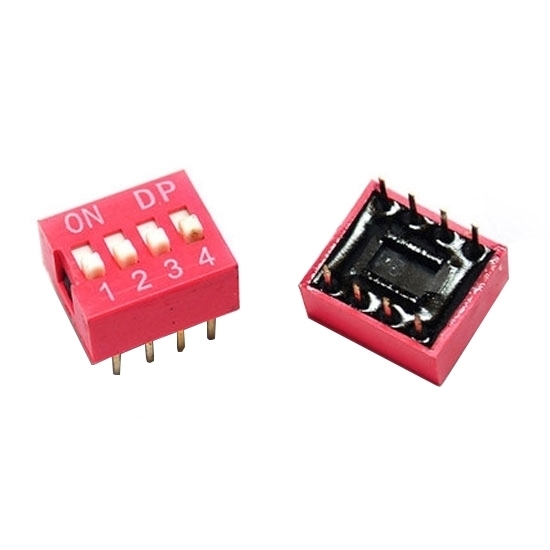

4 Position DIP Switch, 8 Pin, SPST

4 Position DIP Switch, 8 Pin, SPST
4 Position DIP Switch, 8 Pin, SPST
0 reviews • Write a review
from
$9.19
Ex Tax: $9.19
  • Stock: In Stock
  • Model: KOLAUT-DIP-4P
  • Weight: 1.00
  • SKU: KOLAUT-DIP-4P

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.0015μF 1250V Metal Film Capacitor
Quickview
0.0015μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 1250V Metal Film Capacitor
Quickview
0.001μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 630V Metal Film Capacitor
Quickview
0.001μF 630V Metal Film Capacitor
$0.13
Ex Tax:$0.13
Add to Cart Add to Wish List Compare this Product
0.01μF 100V Disc Ceramic Capacitor
Quickview
0.01μF 100V Disc Ceramic Capacitor
$1.04
Ex Tax:$1.04
Add to Cart Add to Wish List Compare this Product
0.01μF 1kV Disc Ceramic Capacitor
Quickview
0.01μF 1kV Disc Ceramic Capacitor
$1.09
Ex Tax:$1.09
Add to Cart Add to Wish List Compare this Product
0.022μF 1kV Disc Ceramic Capacitor
Quickview
0.022μF 1kV Disc Ceramic Capacitor
$1.29
Ex Tax:$1.29
Add to Cart Add to Wish List Compare this Product
0.022μF 2000V Metal Film Capacitor
Quickview
0.022μF 2000V Metal Film Capacitor
$0.28
Ex Tax:$0.28
Add to Cart Add to Wish List Compare this Product
0.033μF 1600V Metal Film Capacitor
Quickview
0.033μF 1600V Metal Film Capacitor
$0.35
Ex Tax:$0.35
Add to Cart Add to Wish List Compare this Product

4 position 4 way electronic DIP switch is a dual in-line package switch that can be mounted directly on a circuit board to activate or deactivate different electronic circuits.

Specification

ModelKOLAUT-DIP-4P
Spacing2.54mm
Number of Switch4
Number of Pin8
Maximum Operating Force8N
Push Button Stroke2mm
Operating Temperature-20℃~+70℃
Storage Temperature-40℃~+85℃
Contact ResistanceInitial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance100MΩ, 500VDC
Compressive Strength500VAC/1min
Interpolar Capacitance5pF
LoopSPST (Single Pole Single Throw)
Electrical LifeTested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated CurrentDoes not Switch Frequently10mA, Withstand Voltage 50V DC
Switch Frequently25mA, Withstand Voltage 24V DC
Weight0.1kg

Dimensions (Unit: mm)

Tips: DIP switch for PLC control system

DIP switches are widely used in data processing, communication, remote control and anti-theft automatic alarm systems, air showers and other products that require manual programming. If some data in the PLC control system needs to be modified frequently, you can use a multi-position DIP switch to connect to the PLC and set the data outside the PLC. In the figure, the COM terminal of the 4 position DIP switch is connected together with the COM terminal of the PLC. The 4 data lines of each DIP switch are connected to the 4 input points of the PLC in a certain order.
