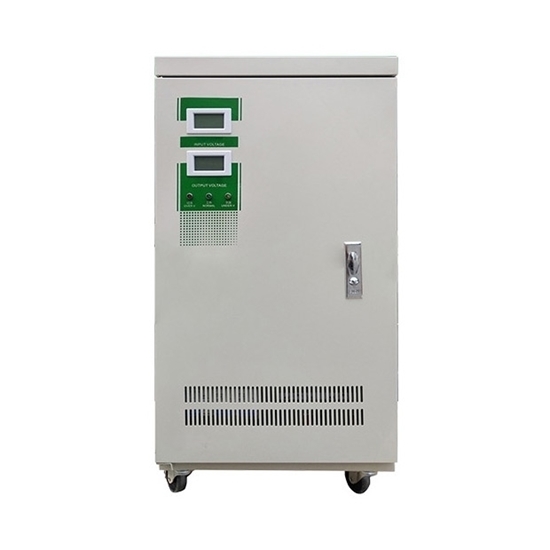

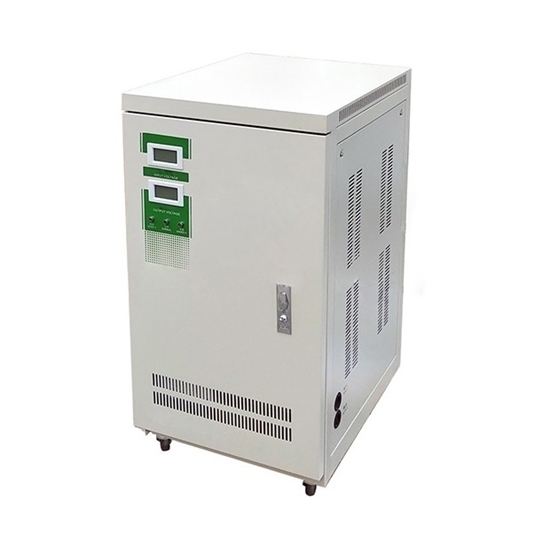

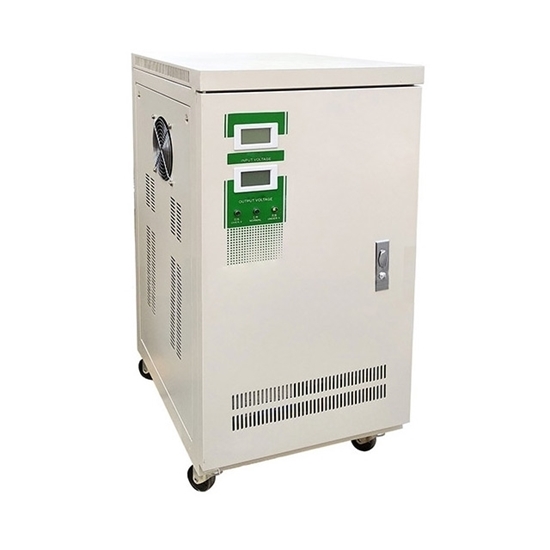

40 KVA Single Phase Automatic Voltage Stabilizer

40 KVA Single Phase Automatic Voltage Stabilizer
40 KVA Single Phase Automatic Voltage Stabilizer
40 KVA Single Phase Automatic Voltage Stabilizer
40 KVA Single Phase Automatic Voltage Stabilizer
40 KVA Single Phase Automatic Voltage Stabilizer
40 KVA Single Phase Automatic Voltage Stabilizer
40 KVA Single Phase Automatic Voltage Stabilizer
40 KVA Single Phase Automatic Voltage Stabilizer
40 KVA Single Phase Automatic Voltage Stabilizer
0 reviews • Write a review
from
$2,912.31
Ex Tax: $2,912.31
  • Stock: In Stock
  • Model: KOLAUT-AVS-1P40K
  • Weight: 1.00
  • SKU: KOLAUT-AVS-1P40K

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.5 KVA Single Phase Variac Voltage Regulator
Quickview
0.5 KVA Single Phase Variac Voltage Regulator
$169.58
Ex Tax:$169.58
Add to Cart Add to Wish List Compare this Product
1 KVA 3-Phase Autotransformer, 380V To 220/200V
Quickview
1 KVA 3-Phase Autotransformer, 380V To 220/200V
$873.69
Ex Tax:$873.69
Add to Cart Add to Wish List Compare this Product
1 KVA Isolation Transformer, Single Phase, 240V To 120V
Quickview
1 KVA Isolation Transformer, Single Phase, 240V To 120V
$784.36
Ex Tax:$784.36
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Automatic Voltage Stabilizer For Home
Quickview
1 KVA Single Phase Automatic Voltage Stabilizer For Home
$203.69
Ex Tax:$203.69
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Variac Voltage Regulator
Quickview
1 KVA Single Phase Variac Voltage Regulator
$256.32
Ex Tax:$256.32
Add to Cart Add to Wish List Compare this Product
1.5 KVA 3 Phase Variac Voltage Regulator
Quickview
1.5 KVA 3 Phase Variac Voltage Regulator
$589.39
Ex Tax:$589.39
Add to Cart Add to Wish List Compare this Product

40 kVA Single Phase Automatic Voltage Stabilizer can keep the voltage stable and help electrical equipment run normally and protect the equipment from damage when there is voltage fluctuation. Besides, this voltage stabilizer has overload, overvoltage, overcurrent and phase failure protection.

Specifications

Product NameAutomatic Voltage Stabilizer
Model NumberKOLAUT-TND/JSW-40kVA
Capacity40 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
PhaseSingle Phase
Input Voltage Range±15% tolerance of output voltage
Output Voltage220V±3%/ 230V±3%/ 240V±3%/ 110V±3% (Optional)
Adjust Time<1sec. (Against 10% input voltage deviation)
Frequency50Hz/60Hz
Current TypeAC
Protection Overvoltage<246±4V
Temperature Rise<60°C
Ambient Temperature-10°C~+40°C
Insulation Resistance≥5MΩ
Temperature Protection110℃±10℃
Relative Humidity<95%
Wave Form DistortionNo additional waveform distortion
Load Power Factor0.8
Efficiency≥90%
DisplayLCD
Protection GradeIP20
Dielectric Strength1500V/min
CertificationCE
Warranty Period12 months
Weight120 Kg
Size530*430*1020mm
Note: The provided 40 kVA voltage stabilizer is 1-phase (L, N, G) by Europe standard. We can customize the split phase (L1, L2 + G) like the USA standard, just confirm with us by email after ordering.

Details



Tips: What is a servo voltage stabilizer?

A servo voltage stabilizer is an electrical device designed to maintain a stable and constant voltage output, regardless of fluctuations in the input voltage from the power supply. It works by automatically adjusting the voltage to a safe level using a servo motor mechanism, ensuring that the connected electrical appliances or equipment receive a consistent voltage within a defined range.

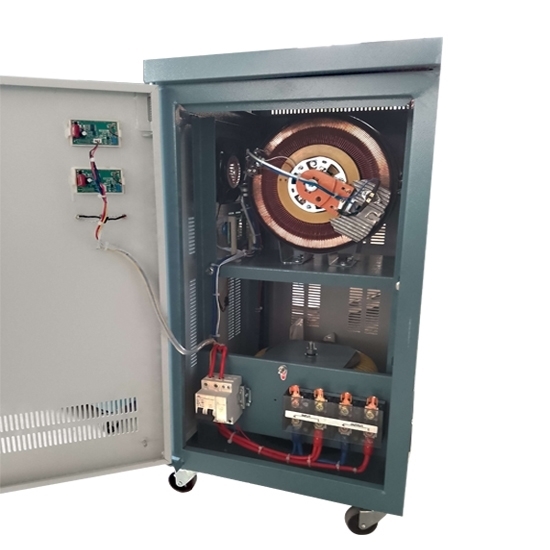

Key Components

  1. Servo Motor: The core of the voltage stabilizer, which adjusts the voltage by moving the transformer tap either up or down based on the voltage fluctuation.
  2. Buck-Boost Transformer: This transformer increases or decreases the voltage to keep it within the desired range.
  3. Control Circuit: The control system detects the input voltage levels and signals the servo motor to adjust the transformer tap accordingly.
