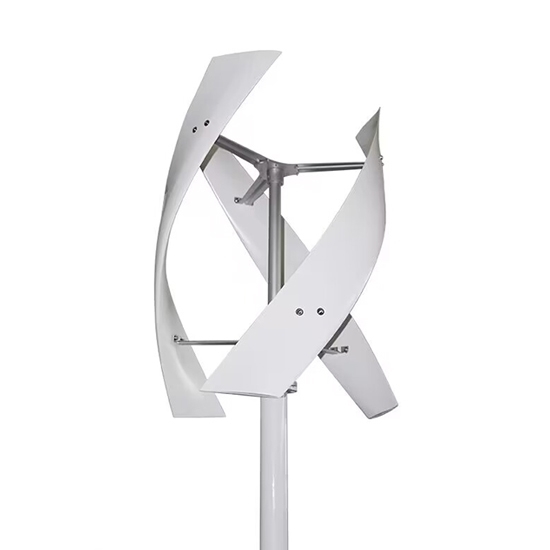

A small 24 V vertical axis wind turbine for home use, rated power at 400W. The vertical blades of the 400W wind turbine can capture the wind from any direction, which is ideal for areas where wind direction is unpredictable.

Specification

Dimension (Unit: mm)

Applications

The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.

Tips: Method of installing a vertical wind turbine

1. Open the package of the vertical axis wind turbine you have received, check for bumps and try to pivot the spiral blades, they turn easily without obstruction. If there are any problems, please return to us in time.
2. Connect the three AC wires of the flange of the vertical axis wind turbine to the transmission cable, with each pair of wires glued to a length of not less than 30 mm and taped at the 100 mm end of the connection.
3. Align the flange holes of the vertical axis wind turbine with the flange holes on the tower pole, apply flat washers and elastic rings and tighten the locking screws. After the sex ring, tighten the locking nut.
4. Connect the cable from the vertical axis wind turbine to the control and connect the battery to the control before wiring.
