450 W DC Gear Motor, 3000 Rpm, 12V/24V/48V

450 W DC Gear Motor, 3000 Rpm, 12V/24V/48V
450 W DC Gear Motor, 3000 Rpm, 12V/24V/48V
0 reviews • Write a review
from
$326.35
Ex Tax: $326.35
  • Stock: In Stock
  • Model: KOLAUT-BLDC-450
  • Weight: 1.00
  • SKU: KOLAUT-BLDC-450

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) Air Compressor Motor, 115/ 230V, 5/8" Shaft
Quickview
1 Hp (0.75 KW) Air Compressor Motor, 115/ 230V, 5/8" Shaft
$368.15
Ex Tax:$368.15
Add to Cart Add to Wish List Compare this Product
1 Hp (0.75kW) 220V Single Phase AC Induction Motor
Quickview
1 Hp (0.75kW) 220V Single Phase AC Induction Motor
$315.98
Ex Tax:$315.98
Add to Cart Add to Wish List Compare this Product
1 Hp (0.75kW) 3 Phase 4 Pole AC Induction Motor
Quickview
1 Hp (0.75kW) 3 Phase 4 Pole AC Induction Motor
$409.52
Ex Tax:$409.52
Add to Cart Add to Wish List Compare this Product
1 Hp (0.75kW) Brake Motor, 3 Phase, 2/4 Pole
Quickview
1 Hp (0.75kW) Brake Motor, 3 Phase, 2/4 Pole
$460.99
Ex Tax:$460.99
Add to Cart Add to Wish List Compare this Product
1 Hp (750W) 1-phase/3-Phase AC Gear Motor, Ratio 3~100
Quickview
1 Hp (750W) 1-phase/3-Phase AC Gear Motor, Ratio 3~100
$811.69
Ex Tax:$811.69
Add to Cart Add to Wish List Compare this Product
1 Hp (750W) AC Servo Motor, 2.4 Nm, 3000 Rpm
Quickview
1 Hp (750W) AC Servo Motor, 2.4 Nm, 3000 Rpm
$528.97
Ex Tax:$528.97
Add to Cart Add to Wish List Compare this Product
1 Hp (750W) Brushless DC Motor, 24V/48V/72V, 2.4 Nm
Quickview
1 Hp (750W) Brushless DC Motor, 24V/48V/72V, 2.4 Nm
$352.77
Ex Tax:$352.77
Add to Cart Add to Wish List Compare this Product

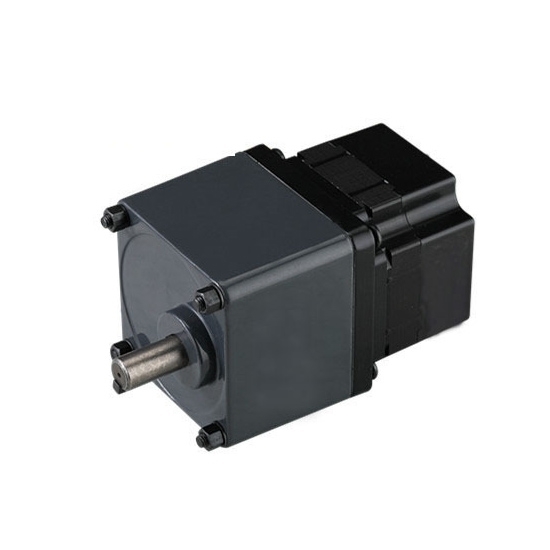

This is a high torque DC gear motor providing 4.3 Nm peak torque, gear ratio is avialable with 3:1 to 200:1. 450W 3000 rpm DC motor with 90 mm size gearbox, designed for 12V, 24V, 48V DC voltage.

450W DC gear motor specifications

ModelKOLAUT-D5BLD450-12KOLAUT-D5BLD450-24KOLAUT-D5BLD450-48
Power450W450W450W
Voltage12V24V48V
Rated Speed3000 rpm3000 rpm3000 rpm
No-load Speed3300 rpm3300 rpm3300 rpm
Rated Current46.88A23.44A11.71A
Rated Torque1.43 N.m1.43 N.m1.43 N.m
Peak Torque4.3 N.m4.3 N.m4.3 N.m
No-load Current< 10.2A< 7.13A< 5.61A
Compatible Driver ModelKVD2412N (Click it to the product page)BLD-100 (Click it to the product page)BLD-750 (Click it to the product page)
Protection GradeIP54
Motor Lead Length300mm
Temperature0~50℃
Weight3.5 Kg
Gearbox Model2GN□K, Enter the gear ratio into the box (□) within the model name
Gear Ratio3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Note: Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.

The allowable torque with a gearbox

Gear Ratio357.51012.51518202530364050607590100120150180200
Speed (r/min)100060040030024020016715012010083.3375605040333025201715
Allowable Torque (N.m)3.485.88.711.613.0715.6918.822020202020202020202020202020
Allowable Torque (kgf.cm)34.8158.0287.02116130.7156.9188.2200200200200200200200200200200200200200200

Note:

  • The values colored "Red" indicate that the gearbox and the DC motor are running in the same direction, and the other values are in the opposite direction.
  • When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gearbox.

Wiring Definition

Dimension (Unit: mm)

*Mounting screws are included with gearbox

Details

Tips: Advantages of KOLAUT Gear Motors

Gear motor is used to reduce the speed, its application is closely related with its advantages. What are the advantages of KOLAUT gear motors?

  1. Less space, more reliable and durable and higher overload capacity.
  2. Low energy consumption and superior performance, high working efficiency.
  3. Small vibration and low noise, high energy saving, high quality materials and long service life.
  4. Precision machining ensures its positioning accuracy, product quality is guaranteed.
