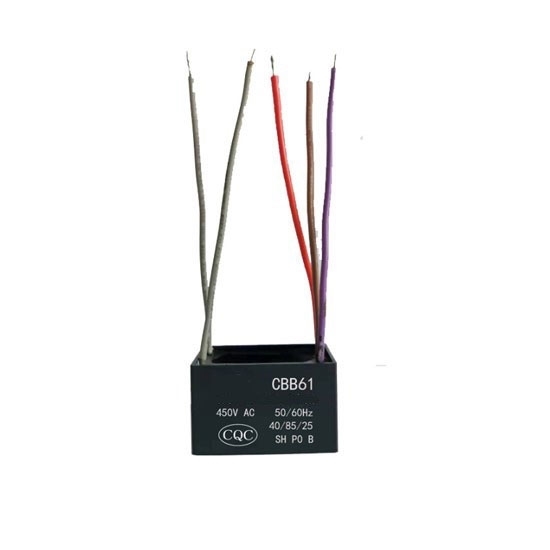

CBB61 capacitors are suitable for starting and running of various electrical motors with 50/60Hz AC power supply, and also for speed regulation of motors, which is the best choice for replacing ceiling fan capacitors.

Specification

• Model: KOLAUT-FC-CBB61-15123
• Capacity: 1.5μF+1.2μF+3μF
• Rated Voltage: 450V/500V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/85/23
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film
• Dimension: 48(W) x 23(L) x 35(H)mm
• Certificate: CE, CQC

5 Wire Ceiling Fan Capacitor Connection Diagram

Tips: How to determine the capacitor damage of electric fans?

If the capacitor is completely damaged and loses capacity, it will show that it cannot start, and the fan can start by plucking the fan blade with an object and run without any abnormality after starting.

If the capacitor performance decreases, the performance is difficult to start, slow, and the sound when starting is significantly increased.

This electric fan capacitor damage, it is recommended to ask a professional maintenance master to test and repair.
