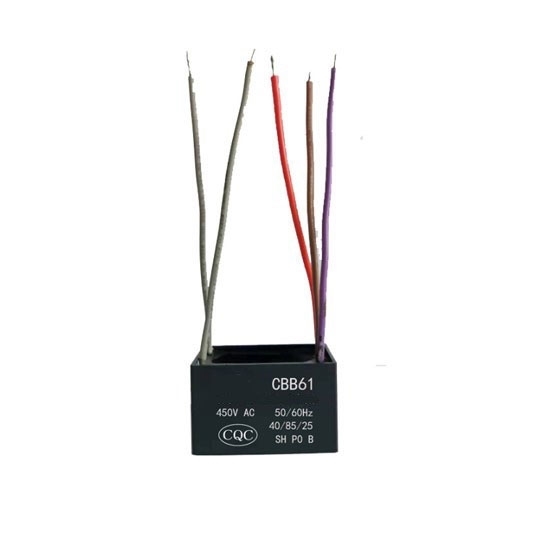

Selling ceiling capacitors for fan speed control, tolerance ±5%, capacity 1.5μF+2μF+3μF, used for starting and running of single-phase motors with 50/60Hz AC power supply for various electrical motors, also for motor speed control.

Specification

• Model: KOLAUT-FC-CBB61-1523
• Capacity: 1.5μF+2μF+3μF
• Rated Voltage: 450V/500V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/85/23
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film
• Dimension: 48(W) x 23(L) x 35(H)mm
• Certificate: CE, CQC

5 Wire Ceiling Fan Capacitor Connection Diagram

Tips: The function of capacitor of electric fan

The capacitor of the fan can play the role of shifting items. After the electric fan is connected to the power supply, the circuit will charge the capacitor, which will generate a relatively large current at first, while the voltage will be close to 0. As the charging volume increases, the current will gradually decrease until the entire charging cycle is completed, and then the electric fan can be started to achieve the effect of blowing air.
