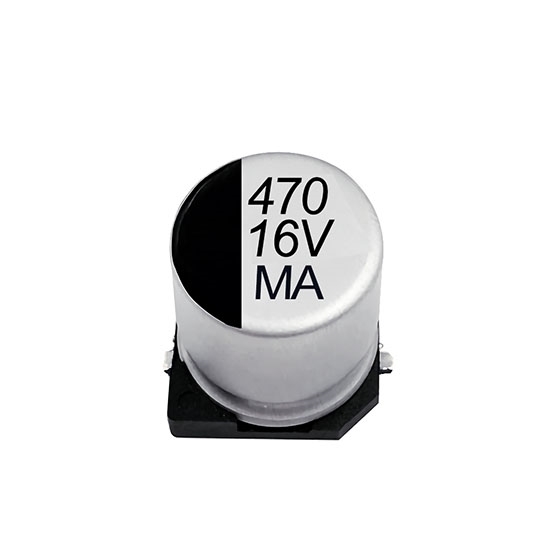

470μF 16V SMD Electrolytic Capacitor

0 reviews • Write a review

from

$1.58

Ex Tax: $1.58

Stock: In Stock
Model: KOLAUT-EC-HV471M
Weight: 1.00
SKU: KOLAUT-EC-HV471M

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

From Same Category
Same Brand

Quickview

0.0015μF 1250V Metal Film Capacitor

$0.14

Ex Tax:$0.14

Add to Cart Add to Wish List Compare this Product

Quickview

0.001μF 1250V Metal Film Capacitor

$0.14

Ex Tax:$0.14

Add to Cart Add to Wish List Compare this Product

Quickview

0.001μF 630V Metal Film Capacitor

$0.13

Ex Tax:$0.13

Add to Cart Add to Wish List Compare this Product

Quickview

0.01μF 100V Disc Ceramic Capacitor

$1.04

Ex Tax:$1.04

Add to Cart Add to Wish List Compare this Product

High-performance SMD electrolytic capacitor has low ESR and high ripple current, 24% dissipation factor. SMD aluminum electrolytic capacitors usually play the electrical functions of filtering, bypassing, coupling, decoupling, and switching.

Features

Endurance: 105℃ - 2000 hours
Low ESR and high ripple current
Vibration-proof (vP) version (up to 30g) available upon request
AEC-Q200 version available
High voltage, automotive 105°C type

Specification

Model		KOLAUT-EC-HV471M
Capacity		470㎌
Rated voltage		16V
Size		8*10.5 mm
Installation type		Surface mount
Operating temperature		-55~105℃
Cap. tolerance (∆C)		±20% (120Hz 20℃)
Dissipation factor (tanδ)		24%
Low temperature characteristic at 120Hz (Z ratio max.)		3 (Z-25℃/Z+20℃)
Leakage current (L_leak)		≤0.01CRV_Ror 3 ㎂ * after 2 minutes
Enduarance (105℃)	Test	2000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Shelf life (105℃)	Test	1000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Resistance to soldering heat (105℃)	∆C	Within ±10% of initial value
	tanδ	Less than specified value
	L_leak	Less than specified value

Dimension (mm)

Model	Dimension (mm)
KOLAUT-EC-HV471M	∅D	8
	L	10.5
	a	Max
	A	8.3
	B	8.3
	C	9
	W	0.7~1.1
	P±2	3.1

Tips: What is Electrolytic Capacitor?

SMD electrolytic capacitors are usually made of metal foil (aluminum/ tantalum) as the positive electrode, and the insulating oxide layer of the metal foil (alumina/ tantalum pentoxide) as the dielectric. Electrolytic capacitors are divided into aluminum electrolytic capacitors and Tantalum Electrolytic Capacitors. The negative electrode of aluminum electrolytic capacitors consists of thin paper/film or electrolyte polymer soaked in an electrolyte (liquid electrolyte); the negative electrode of tantalum electrolytic capacitors is usually manganese dioxide. Electrolytic capacitors get their name because they all use electrolytes as negative electrodes (note the distinction from dielectrics).
