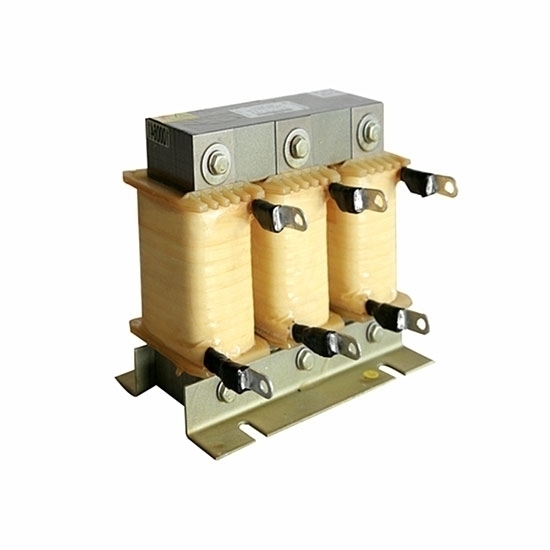

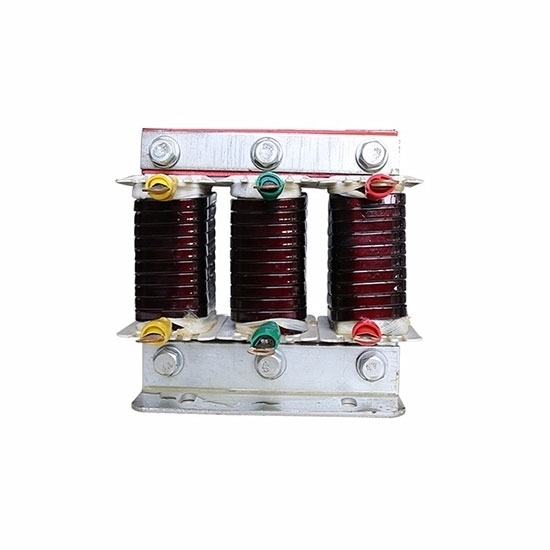

5 Hp (3.7 KW) AC Line Reactor, 3 Phase Input

5 Hp (3.7 KW) AC Line Reactor, 3 Phase Input
5 Hp (3.7 KW) AC Line Reactor, 3 Phase Input
5 Hp (3.7 KW) AC Line Reactor, 3 Phase Input
5 Hp (3.7 KW) AC Line Reactor, 3 Phase Input
5 Hp (3.7 KW) AC Line Reactor, 3 Phase Input
0 reviews • Write a review
from
$272.89
Ex Tax: $272.89
  • Stock: In Stock
  • Model: KOLAUT-ILR-3d7
  • Weight: 1.00
  • SKU: KOLAUT-ILR-3d7

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.5 KVA Single Phase Variac Voltage Regulator
Quickview
0.5 KVA Single Phase Variac Voltage Regulator
$169.58
Ex Tax:$169.58
Add to Cart Add to Wish List Compare this Product
1 KVA 3-Phase Autotransformer, 380V To 220/200V
Quickview
1 KVA 3-Phase Autotransformer, 380V To 220/200V
$873.69
Ex Tax:$873.69
Add to Cart Add to Wish List Compare this Product
1 KVA Isolation Transformer, Single Phase, 240V To 120V
Quickview
1 KVA Isolation Transformer, Single Phase, 240V To 120V
$784.36
Ex Tax:$784.36
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Automatic Voltage Stabilizer For Home
Quickview
1 KVA Single Phase Automatic Voltage Stabilizer For Home
$203.69
Ex Tax:$203.69
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Variac Voltage Regulator
Quickview
1 KVA Single Phase Variac Voltage Regulator
$256.32
Ex Tax:$256.32
Add to Cart Add to Wish List Compare this Product
1.5 KVA 3 Phase Variac Voltage Regulator
Quickview
1.5 KVA 3 Phase Variac Voltage Regulator
$589.39
Ex Tax:$589.39
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product

3.7 kW AC line reactor for VFD, 10A rated current, 3 phase input, 50Hz/60Hz operating frequency. This is a high performance and high reliability input reactor with multiple choices, not only full set accessories but also low price.

5 hp Input Line Reactor Specifications

BasicModelKOLAUTACR-0010-1M40-0.4SC
Recommended VFD ModelGK3000-4T0037G (5 hp three phase VFD)
Phase3 Phase
Power5 hp (3.7 kW)
Weight2.8 kg
Technical ParametersWork Valtage380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Work Frequency50Hz/60 Hz
Rated Current10 A
Max Current1.5 Times the Rated Current, Continued 60s
Inductance Value1.4 mH
MaterialAluminium/Copper (Optional)
Voltage Drop2%
Noise≤65dB
Insulation ClassClass F, H
Protection ClassIP00-IP22
Insulation Resistor≥100MΩ
Working EnvironmentOperation Environment-10℃~+45℃
Temperature Rise≤85K
Humidity≤90%RH, without condensation
Running Ambient Temperature-25℃~+45℃
Altittude≤2000m

5 hp Input Line Reactor Size & Circuit Diagram


Dimension (±5mm)
LDWW1HA×B
115mm90mm95mm68mm135mm6×11

Tips: What about burnout of line reactor?

If the concrete column of AC input line reactor and porcelain support insulator crack or some coils of electric reactor burn out, check whether relay protection functions. If relay protection doesn’t function, disconnect the power supply of input line reactor manually, stop faulted input line reactor and start the standby input line reactor.
