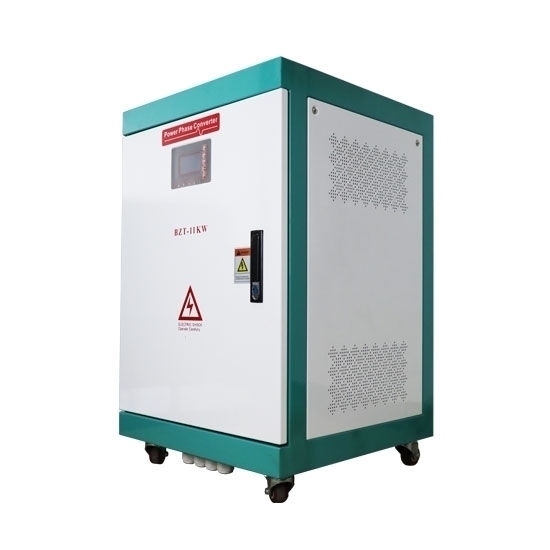

5 Hp Single Phase To 3 Phase Converter

5 Hp Single Phase To 3 Phase Converter
5 Hp Single Phase To 3 Phase Converter
5 Hp Single Phase To 3 Phase Converter
5 Hp Single Phase To 3 Phase Converter
5 Hp Single Phase To 3 Phase Converter
5 Hp Single Phase To 3 Phase Converter
5 Hp Single Phase To 3 Phase Converter
5 Hp Single Phase To 3 Phase Converter
5 Hp Single Phase To 3 Phase Converter
5 Hp Single Phase To 3 Phase Converter
5 Hp Single Phase To 3 Phase Converter
0 reviews • Write a review
from
$3,972.89
Ex Tax: $3,972.89
  • Stock: In Stock
  • Model: KOLAUT-PHC-05
  • Weight: 1.00
  • SKU: KOLAUT-PHC-05

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.5 KVA Single Phase Variac Voltage Regulator
Quickview
0.5 KVA Single Phase Variac Voltage Regulator
$169.58
Ex Tax:$169.58
Add to Cart Add to Wish List Compare this Product
1 KVA 3-Phase Autotransformer, 380V To 220/200V
Quickview
1 KVA 3-Phase Autotransformer, 380V To 220/200V
$873.69
Ex Tax:$873.69
Add to Cart Add to Wish List Compare this Product
1 KVA Isolation Transformer, Single Phase, 240V To 120V
Quickview
1 KVA Isolation Transformer, Single Phase, 240V To 120V
$784.36
Ex Tax:$784.36
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Automatic Voltage Stabilizer For Home
Quickview
1 KVA Single Phase Automatic Voltage Stabilizer For Home
$203.69
Ex Tax:$203.69
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Variac Voltage Regulator
Quickview
1 KVA Single Phase Variac Voltage Regulator
$256.32
Ex Tax:$256.32
Add to Cart Add to Wish List Compare this Product
1.5 KVA 3 Phase Variac Voltage Regulator
Quickview
1.5 KVA 3 Phase Variac Voltage Regulator
$589.39
Ex Tax:$589.39
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Output
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Output
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product

Reasonable price 4 kW power converter, with input & output frequency 50Hz/60 Hz, convert voltage 110V/ 120V/ 220V/ 230V/ 240V/ 380V/ 415V/ 440V/ 480V AC input to 220V/ 380V/ 400V/ 415V/ 440V/ 480V AC output, provides increased reliability and higher efficiency, make this converter ideal for a wide range of applications.

Note:

  • When the load is a motor, the phase converter should be more than 5~7 times the motor capacity.
  • When the load is soft start + motor, the phase converter should be more than 3 times the motor capacity.
  • When the load is VFD + motor, the phase converter should be more than 1.5~2 times the motor capacity.

5 hp Converter Specification

ModelKOLAUTBZT-4kW
Power5 hp (4 kW)
Weight105kg
Output WaveformStandard pure sine wave
Wide Voltage Input80-320V AC (can customization)
Input VoltageOptional: 110V/ 120V/ 220V/ 230V/ 240V/ 380V/ 415V/ 440V/ 480V single phase 2 wire
Input Current12.3A at 230V (Input Current=Power/Input Voltage/1.414)
Output VoltageOptional: 220V/ 380V/ 400V/ 415V/ 440V/ 480V 3 phase 4 wire+PE
Output Current5.8A at 400V
Input Frequency50Hz/ 60Hz
Output Frequency50Hz/ 60Hz
Startup Mode SelectionStable frequency step-down start or frequency, start can be selected on the LCD screen settings
Frequency Stability≤0.01%
Load Regulation≤3%
THD≤2% (Linear load)
Phase Angle120°±1°
Crest Factor Ratio3:1
Circuit ModeIPM module, SVPWM modulation
LCD DisplayOutput voltage, output current, output frequency, output power, fault code, time temperature, startup mode selection, setting parameters
ProtectionInput under voltage, overvoltage, output over-current, short circuit, overheating etc.
Protective Reaction Time≤2ms
Machine Efficiency≥94%
Insulation Properties1800V AC/ 10mA/1 min
Insulation Impedance500V DC/ 50MΩ
Cooling MethodForced air cooling
Noise1m> 60dB
Ambient Temperature-25℃~+55℃
Humidity0~95% (No condensation)
SizeL540mm
W540mm
H760mm

Single Phase

Split phase

Details

5 hp Converter Features
