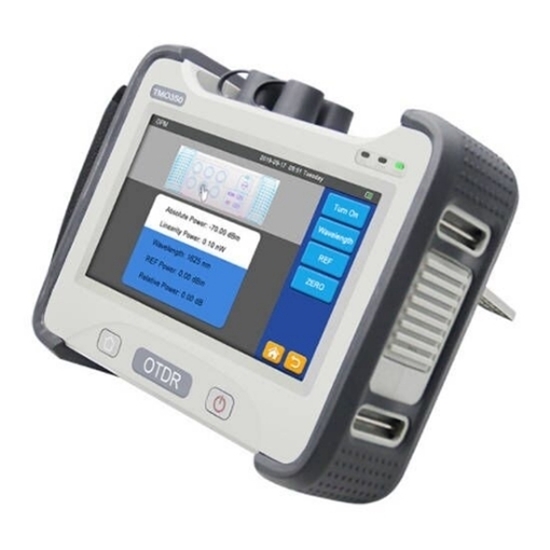

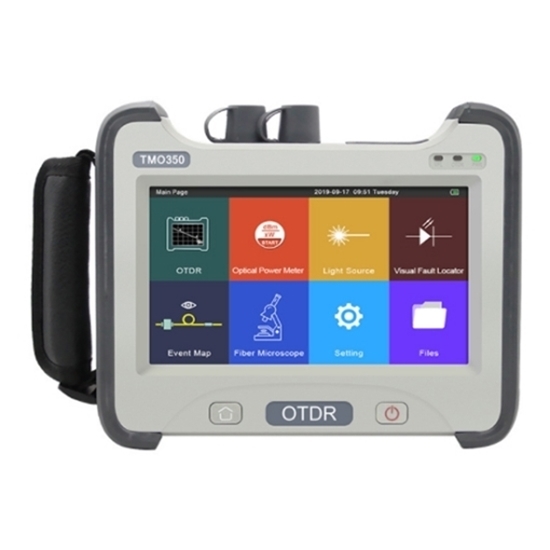

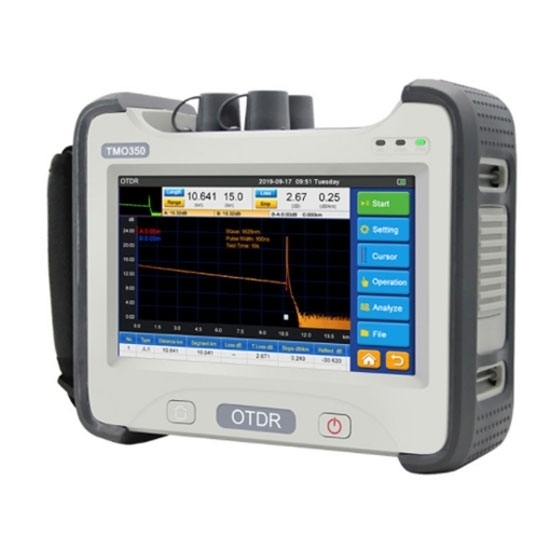

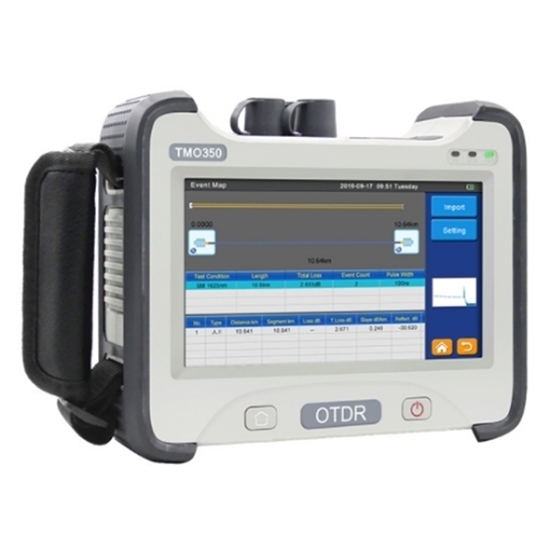

5 in 1 OTDR fiber tester (OTDR, optical power meter, visual fault locator, light source, event map ), with 7-inch capacitive touch screen, fiber tester event blind zone as low as 0.8m, attenuation blind zone 4m. 7.4V/6.6Ah lithium battery large capacity to ensure continuous operation of 8-10 hours, easy to carry and use outdoor field operations.

Specification

Features

• Multi-measurement mode, easy to use, just one button to complete the measurement.
• Real-time measurement function, easy to monitor the splicing process.
• Optical time domain reflectometer built-in high-power visual laser source can accurately locate the closer fault points.
• 2 primary USB ports and 1 secondary USB port, can be controlled by PC or connected to external instruments.
• 5-in-1 OTDR fiber tester with built-in 8G memory. Store over 80,000 sets of curves.
• Provide data simulation software for processing, generating and printing reports.
• Measure the loss of splicing points, optical connectors, and adapters.
• Measure the loss of a single fiber or cable.
• Measure the length of the cable, and set different refractive indices for various fibers.
• Locate the position of a broken point, Optical connector, and adapter.
• Measure the discrete reflection ratio between SR points.
• Measure return loss for the whole fiber circuit including connecting points and S points.

Applications

Details

Tips: How to determine the fiber optic quality of the fiber optic tester?

Under normal circumstances, the fiber optic tester test light curve body (single or multi-disc fiber optic cable) slope is basically the same, if the slope of a section is larger, it means that the section is more attenuated. If the curve body is irregularly shaped, with a more undulating, curved, or arched slope, it indicates that the fiber quality is seriously deteriorated and does not meet the communication requirements.
