Note: This swing check valve cannot be used for drinking water.

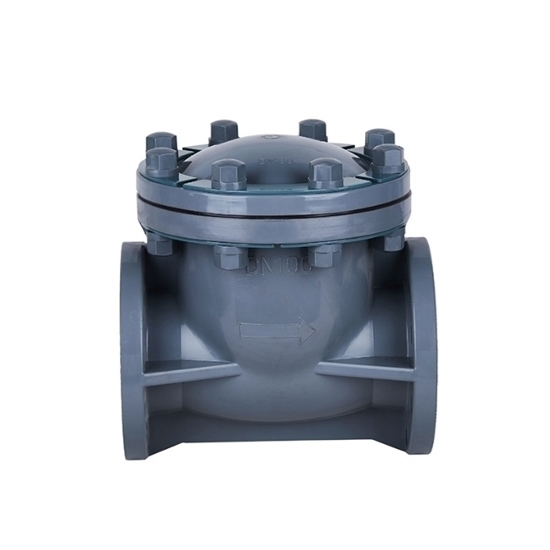

Order a low price 5 inch swing check valve on KOLAUT.com. It is a CPVC check valve that can transport weak acid and weak alkali medium. 125mm non-return valve is commonly used in pipelines where reliable backflow prevention is required, such as water supply, wastewater treatment, irrigation and industrial processes.

Features

• The check valve can prevent the phenomenon of liquid counter-current from protecting the pump equipment.
• Because it is a cantilever check valve, there is less resistance to flow.
• The 5 inch swing check valve uses CPVC materials and plays a strong corrosion resistance to prevent acid and alkali fluid.
• Not only can the valve body be removed from the pipeline, but also the valve cover can be opened for internal inspection and maintenance.

Specifications

• Model: KOLAUT-H44F-10S
• Check Valve Type: Swing
• Nominal Diameter: 5 inch/125mm
• Nominal Pressure: 10kg
• Drive Mode: Manual
• Pressure Environment: Low Pressure
• Type (Channel Position): 2 Ways
• Flow Direction: One Way
• Body Material: CPVC
• Connection Form: Flange
• Weight: 17kg
• Applicable Medium: Acid-Base concentration higher than 30%, lower than 60%, except hydrochloric acid.

 Dimension (Unit: mm)

Applications

Tips: Advantages of swing check valve

Swing check valves are a type of valve commonly used in pipelines and other fluid systems to prevent backflow and protect equipment from damage. Here are some advantages of swing check valves:

• Simple design: Swing check valves have a relatively simple design, consisting of a hinged disc that swings freely on a hinge. This makes them easy to manufacture, install, and maintain.
• Low pressure drop: Swing check valves have a low-pressure drop, meaning that they don't significantly impede the flow of fluid through the system. This can help to reduce energy costs and increase system efficiency.
• Resilient sealing: The disc in a swing check valve is typically made from a resilient material, such as rubber or neoprene, which can form a tight seal against the valve seat when closed. This helps to prevent leaks and backflow.
• Versatility: Swing check valves are suitable for use in a wide range of applications and can handle a variety of fluids, including gases, liquids, and slurries.
• Durable: Swing check valves are designed to withstand the high pressures and temperatures commonly found in industrial applications, making them durable and long-lasting.
• Low maintenance: Because swing check valves have a simple design and few moving parts, they require minimal maintenance and are less prone to failure than other types of valves.

Overall, swing check valves offer a cost-effective, reliable solution for preventing backflow and protecting fluid systems and equipment.
