500mm Magnetostrictive Linear Displacement Sensor For Rapid Transit Railway

500mm Magnetostrictive Linear Displacement Sensor For Rapid Transit Railway
500mm Magnetostrictive Linear Displacement Sensor For Rapid Transit Railway
0 reviews • Write a review
from
$949.86
Ex Tax: $949.86
  • Stock: In Stock
  • Model: KOLAUT-MSD-SA0500
  • Weight: 1.00
  • SKU: KOLAUT-MSD-SA0500

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0-10V Signal Isolator, 1/2 Outputs
Quickview
0-10V Signal Isolator, 1/2 Outputs
$94.86
Ex Tax:$94.86
Add to Cart Add to Wish List Compare this Product
1" Digital Flow Switch For Water
Quickview
1" Digital Flow Switch For Water
$446.39
Ex Tax:$446.39
Add to Cart Add to Wish List Compare this Product
1-phase AC Current Transducer, 0-1A/5A/10A/20A
Quickview
1-phase AC Current Transducer, 0-1A/5A/10A/20A
$175.54
Ex Tax:$175.54
Add to Cart Add to Wish List Compare this Product
1-phase AC Voltage Transducer, 0~120V/300V/450V/600V
Quickview
1-phase AC Voltage Transducer, 0~120V/300V/450V/600V
$175.54
Ex Tax:$175.54
Add to Cart Add to Wish List Compare this Product
1/2" Digital Flow Switch For Air
Quickview
1/2" Digital Flow Switch For Air
$231.79
Ex Tax:$231.79
Add to Cart Add to Wish List Compare this Product
1/2" Digital Flow Switch For Water
Quickview
1/2" Digital Flow Switch For Water
$307.99
Ex Tax:$307.99
Add to Cart Add to Wish List Compare this Product
1000mm Level Sensors For Sewage Disposal System
Quickview
1000mm Level Sensors For Sewage Disposal System
$979.86
Ex Tax:$979.86
Add to Cart Add to Wish List Compare this Product

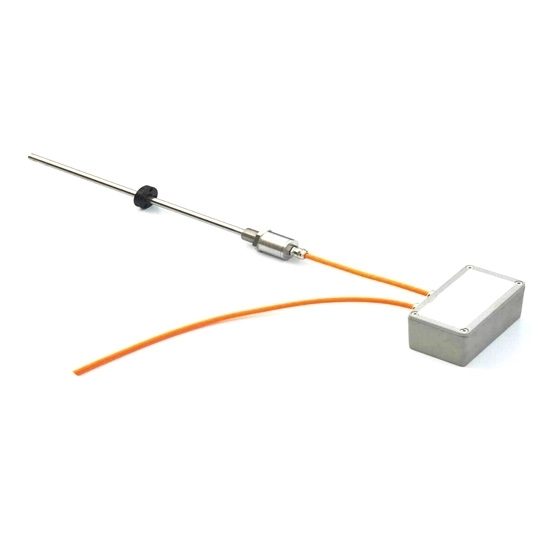

Magnetostrictive sensor has separated electronic bin and sensitive head. The two parts are connected by a cable to save installation space. It is suitable for built-in measurement applications where the installation requirement of the electronic bin is strict. It is applied to rapid transit railway and other fields requiring high performance.

Specification:

BasicsModelKOLAUT-MSD-SA0500
Measuring range0~500 mm
Shipping weight3 kg
Length595mm
Technical parametersLinearity≤0.05%FS
Repeatability≤0. 002%FS
Working Voltage24VDC
Working current≤30mA
Output method0-5V / 0-10v / 4-20mA
TemperatureMeasuring rod: - 40℃～+110℃; Electronic bin: - 40℃～+80℃
Measuring rod material0Cr18Ni9 (304) or 316L stainless steel (special custom-made)
Type of lead wirePG7 connection; Aviation plug
Protection ClassElectronic bin: IP67; Measuring rod: IP69
Installation methodElectronic bin: 4*M6X45; Measuring rod: M18X1.5
effective travel in this series (customizable)50-5000mm

Installation diagram (unit: mm):


Tips: Core component of magnetostrictive sensor
The core component of magnetostrictive displacement sensor, located in a measuring element (waveguide tube), indicates a piece of waveguide wire made of special magnetostrictive material . This material is well-known as "black gold" in the modern industry, featuring high strain value, electrical (magnetic) mechanical wave conversion ability. It can be used to change tiny magnetic field into mechanical wave.
