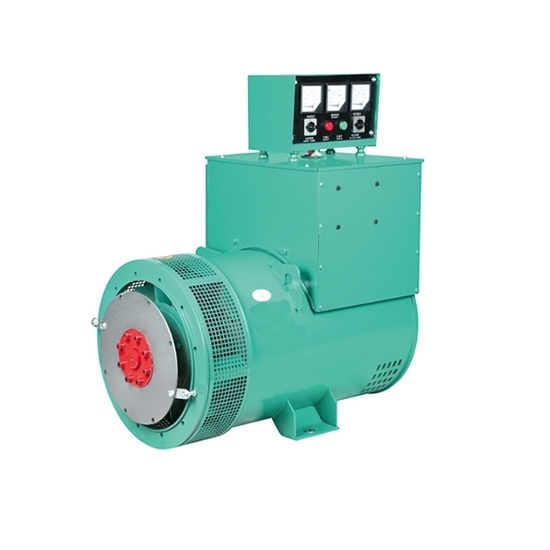

Single phase or three phase brush AC generator with 0.8 cosφ power factor, 4P, frequency 50Hz. AC generator has an elegant appearance, sturdy and durable structure, convenient maintenance and long service life.
Specification
| Model | KOLAUT-STC-5 |
| Rated power | 5kW |
| Rated capacity | 6.3kVA |
| Rated current | 9A |
| Power factor | 0.8 cosφ |
| Pole number | 4 pole |
| Rated speed | 1500 r/min |
| Phase | Single phase/ Three phase |
| Rated voltage | 220V (230V/ 240V can be customized)/ 380V (400V/ 460V can be customized) |
| Frequency | 50Hz |
| Weight | 60kg |
| Certificate | CE |
| Warranty | 12 months |
Dimension
| Model | Mounting dimensions (mm) | Outer dimensions (mm) | ||||||||||||||
| A | B | C | D | E | F | G | H | K | a | b | h1 | h | L1 | L2 | g | |
| STC-5 | 254 | 254 | 108 | 32 | 80 | 12 | 32.8 | 160 | 15 | 50 | 310 | 25 | 450 | 580 | 325 | 40.8 |
Tips: What is AC Synchronous Generator?
AC synchronous generator is a mechanical device that converts other forms of energy into electrical energy. It is driven by a water turbine, steam turbine, diesel engine or other power machinery, which converts the energy generated by water flow, air flow, fuel combustion or nuclear fission into mechanical energy and then transmits it to the generator, at last, it converted into electrical energy by a generator.
