The 450V ceiling fan capacitor is made of metallized polypropylene film sheet with a temperature-resistant, corrosion-resistant plastic housing, rated capacity of 6 mfd, ideal for starting and working single-phase motors in 50Hz/60Hz AC power systems.

Specification

• Model: KOLAUT-FC-CBB61-060
• Capacity: 6μF
• Rated Voltage: 450V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/105/21
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film
• Dimension: 48(W) x 20.5(L) x 35(H)mm
• Certificate: CE, CQC

6μF Ceiling Fan Capacitor Wiring Diagram

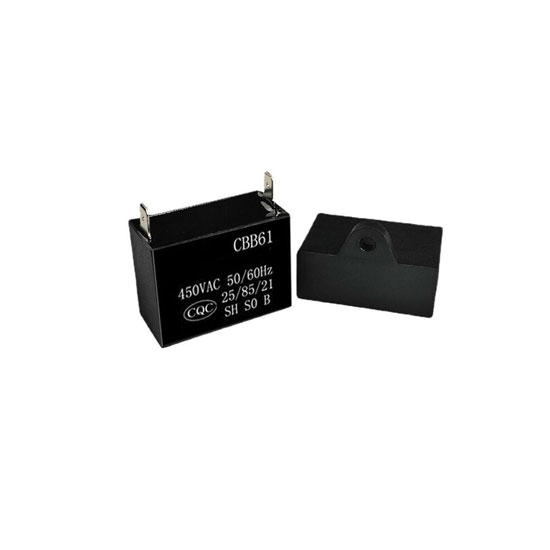

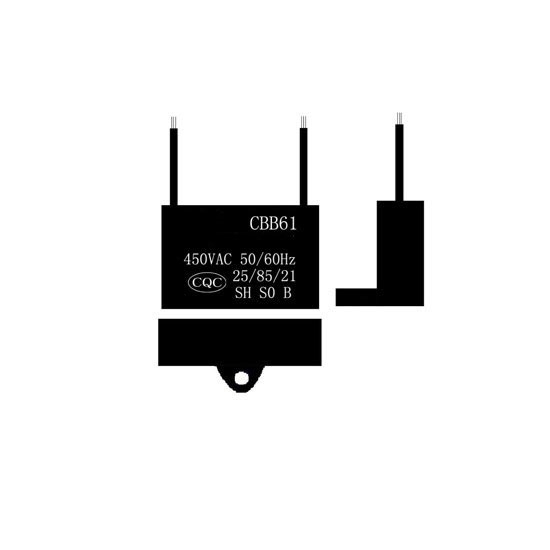

Ceiling fan capacitor details

Tips: Role of metallized film capacitors

Metallized film capacitors have a so-called self-recovery effect, i.e., if a small part of the electrode is short-circuited due to the fragility of the electrical boundary, the electrode metal around the short-circuited part will be restored to insulation by melting and evaporating a larger area due to the electrostatic energy or short-circuit current carried by the capacitor at that time, so that the capacitor can resume its role as a capacitor again.
