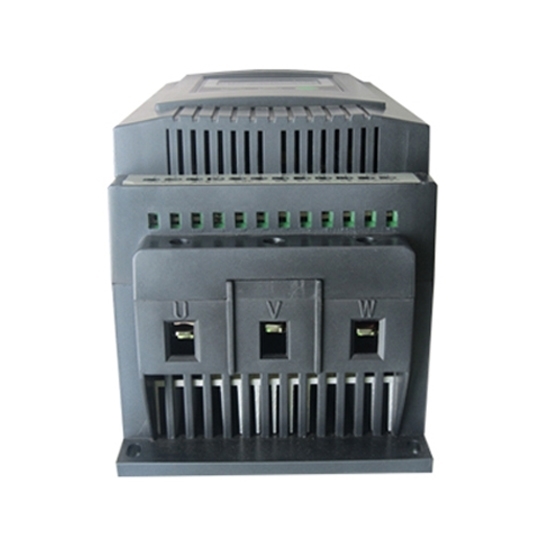

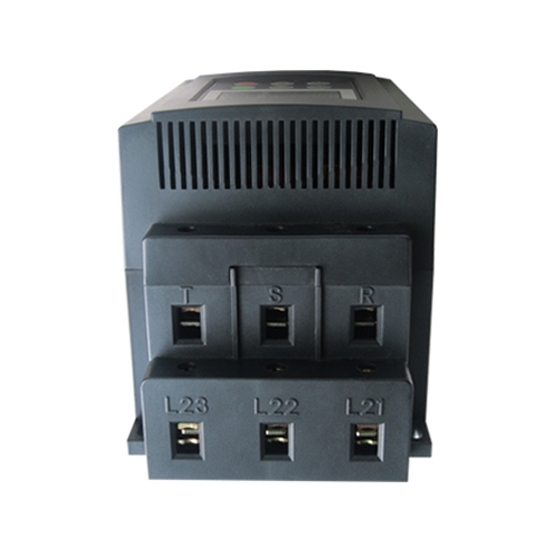

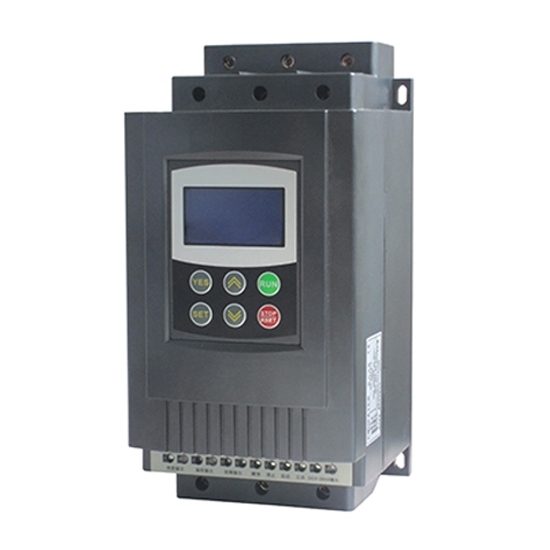

60 Hp (45 KW) Soft Starter, 90 A, 3ph 240v/400v/480v

60 Hp (45 KW) Soft Starter, 90 A, 3ph 240v/400v/480v
60 Hp (45 KW) Soft Starter, 90 A, 3ph 240v/400v/480v
60 Hp (45 KW) Soft Starter, 90 A, 3ph 240v/400v/480v
60 Hp (45 KW) Soft Starter, 90 A, 3ph 240v/400v/480v
60 Hp (45 KW) Soft Starter, 90 A, 3ph 240v/400v/480v
60 Hp (45 KW) Soft Starter, 90 A, 3ph 240v/400v/480v
60 Hp (45 KW) Soft Starter, 90 A, 3ph 240v/400v/480v
0 reviews • Write a review
from
$543.91
Ex Tax: $543.91
  • Stock: In Stock
  • Model: GS-045
  • Weight: 1.00
  • SKU: GS-045

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1 Hp (0.75 KW) VFD, 3 Phase 230V, 400V, 480V
Quickview
1 Hp (0.75 KW) VFD, 3 Phase 230V, 400V, 480V
$206.49
Ex Tax:$206.49
Add to Cart Add to Wish List Compare this Product
1 Hp (0.75 KW) VFD, Single Phase Input & Output
Quickview
1 Hp (0.75 KW) VFD, Single Phase Input & Output
$195.82
Ex Tax:$195.82
Add to Cart Add to Wish List Compare this Product
1 Hp Non-Enclosure VFD, 1ph Input, 3ph Output
Quickview
1 Hp Non-Enclosure VFD, 1ph Input, 3ph Output
$142.46
Ex Tax:$142.46
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, 1-Phase 220V To 3-Phase 380V VFD
Quickview
1 Hp VFD, 1-Phase 220V To 3-Phase 380V VFD
$309.15
Ex Tax:$309.15
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase 120V Input, 1ph/3ph 220V Output
Quickview
1 Hp VFD, Single Phase 120V Input, 1ph/3ph 220V Output
$284.61
Ex Tax:$284.61
Add to Cart Add to Wish List Compare this Product
1 Hp VFD, Single Phase To Three Phase VFD
Quickview
1 Hp VFD, Single Phase To Three Phase VFD
$159.32
Ex Tax:$159.32
Add to Cart Add to Wish List Compare this Product
1/2 Hp (0.4 KW) VFD, Single Phase Input & Output
Quickview
1/2 Hp (0.4 KW) VFD, Single Phase Input & Output
$162.46
Ex Tax:$162.46
Add to Cart Add to Wish List Compare this Product
1/2 Hp Non-Enclosure VFD, 1ph Input, 3ph Output
Quickview
1/2 Hp Non-Enclosure VFD, 1ph Input, 3ph Output
$137.68
Ex Tax:$137.68
Add to Cart Add to Wish List Compare this Product

60 hp AC motor soft starter, 45 kW three phase 240v, 400v, 480v, 690v.

ModelGS2-045 (220v, 240v), GS3-045 (380v, 400v, 415v), GS4-045 (460v, 480v), GS6-045 (575v, 690v).
Capacity60 hp (45 kw)
Current90 amps at 380v/480v, 180 amps at 220v, 55 amps at 690v
Weight5 kgs
Dimension270*146*160 mm
InputVoltageThree-phase 220v, 400v, 480v, 660v AC
Frequency50Hz/ 60Hz
Adaptive MotorSquirrel-cage three-phase asynchronous motor
Starting TimesIt is recommended not to exceed 20 times per hour.
485 CommunicationDB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode
  1. Operation panel control.
  2. Operation panel + external control.
  3. External control.
  4. External control + COM control.
  5. Operation panel + external + COM control.
  6. Operation panel + COM control.
  7. COM control.
  8. No start or stop operation.
Start Mode
  1. Current-limiting to start.
  2. Voltage ramp to start.
  3. Torque control + current-limiting to start.
  4. Torque control + voltage ramp to start.
  5. Current ramp to start.
  6. Voltage current-limiting double closed-loop start.
Stop Mode
  1. Soft stop.
  2. Free stop.
Protective Function
  1. Open loop protection for external instantaneous stop terminals.
  2. Over-heat protection for soft starter.
  3. Protection for too long starting time.
  4. Input open phase protection.
  5. Output open phase protection.
  6. Unbalanced three-phase protection.
  7. Starting over current protection.
  8. Running overload protection.
  9. Under voltage protection for power voltage.
  10. Overvoltage protection for power voltage.
  11. Protection for fault parameter setting of the soft starter.
  12. Load short circuit protection.
  13. Auto restart or incorrect wiring protection.
  14. Incorrect wiring protection of external control stop terminals.
AmbientPlace to be usedIndoor location with good ventilation free from corrosive gas and conductive dust.
AltitudeBelow 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
Temperature-30 +55 oC
Humidity90%RH without dew condensation.
Vibration<0.5G
StructureEnclosureIP 20
CoolingNatural wind cooling.



Details

Tips: The causes of soft starter SCR damage
1. When the motor starting, the overcurrent will breakdown the soft starter. It is recommended to check whether the power of soft starter matches the power of the motor and whether the motor is on-load starting.
2. The soft starter's cooling fan is damaged. It is recommended to replace the fan.
3. Start up frequently, and high temperature will damage SCR. It is recommended to control the number of times of starting.
4. The filter board is damaged, input default phase, it is recommended to replace the damaged components. There are many factors that cause this failure:

  • Check whether the power incoming line and the motor incoming line are loose.
  • Whether the output is connected with load, whether the load matches the motor.
  • Using a multimeter to check whether the module or SCR of the soft starter is breakdown, and whether the trigger gate resistance meets the normal requirements (typically around 20-30 ohms).
  • Whether the internal socket wiring is loose.
