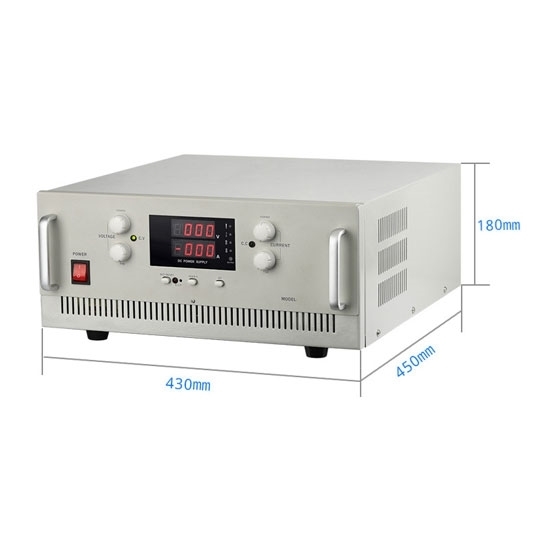

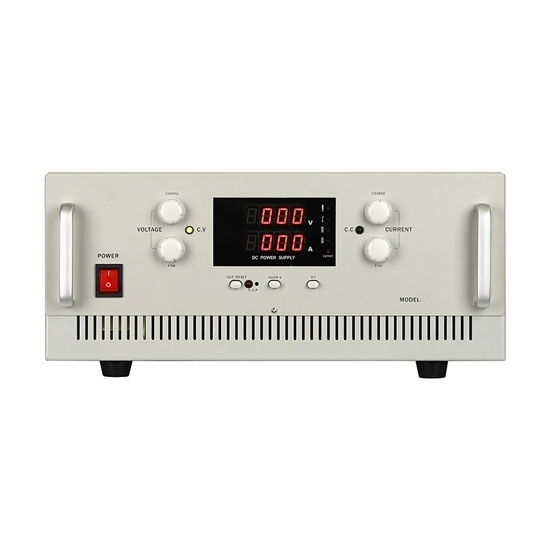

60A 30V 2250W Variable Linear DC Power Supply

60A 30V 2250W Variable Linear DC Power Supply
60A 30V 2250W Variable Linear DC Power Supply
60A 30V 2250W Variable Linear DC Power Supply
60A 30V 2250W Variable Linear DC Power Supply
60A 30V 2250W Variable Linear DC Power Supply
0 reviews • Write a review
from
$1,796.99
Ex Tax: $1,796.99
  • Stock: In Stock
  • Model: KOLAUT-DCPS3060
  • Weight: 1.00
  • SKU: KOLAUT-DCPS3060

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.5 KVA Single Phase Variac Voltage Regulator
Quickview
0.5 KVA Single Phase Variac Voltage Regulator
$169.58
Ex Tax:$169.58
Add to Cart Add to Wish List Compare this Product
1 KVA 3-Phase Autotransformer, 380V To 220/200V
Quickview
1 KVA 3-Phase Autotransformer, 380V To 220/200V
$873.69
Ex Tax:$873.69
Add to Cart Add to Wish List Compare this Product
1 KVA Isolation Transformer, Single Phase, 240V To 120V
Quickview
1 KVA Isolation Transformer, Single Phase, 240V To 120V
$784.36
Ex Tax:$784.36
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Automatic Voltage Stabilizer For Home
Quickview
1 KVA Single Phase Automatic Voltage Stabilizer For Home
$203.69
Ex Tax:$203.69
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Variac Voltage Regulator
Quickview
1 KVA Single Phase Variac Voltage Regulator
$256.32
Ex Tax:$256.32
Add to Cart Add to Wish List Compare this Product
1.5 KVA 3 Phase Variac Voltage Regulator
Quickview
1.5 KVA 3 Phase Variac Voltage Regulator
$589.39
Ex Tax:$589.39
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Output
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Output
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product

High precision variable linear DC power supply with adjustable voltage and current slew rate, supplies 0 to 30V DC at up to 60A. It is specially designed for scientific research, product development, laboratories, schools and electronic production lines.

Specification

ModelKOLAUT-JK3060S
Input Voltage110V or 220V AC (+/- 10%)
Output Voltage Range0-30V
Output Current Range0-60A
Output Power2025W
Frequency50Hz/60Hz
Output TypeDual
Display3 digit
Display Accuracy≤ ±0.4%＋3d
Voltage Display Resolution10mV
Current Display Resolution10mA
Efficiency>60%
Voltage Regulation
Load Regulation (CV)1×10-4+8mV
Line Regulation (CV)1×10-4+3mV
Ripple & Noise (P-P)0.8mV
Temperature Coefficient300PPｍ/℃
Current Regulation
Load Regulation (CC)≤5mA
Line Regulation (CC)2×10-4+3mV
Temperature Coefficient500PPｍ/℃
Others
ProtectionOver Load and Over Voltage Protection
Operating Ambient0℃ to + 40℃/ 85%RH
Storage Ambient-10℃ to + 80℃/ 80%RH
CertificationCE, RoSH
Warranty12 Months
Size530 (W) x 430 (H) x 200 (D) mm
Weight40kg
Package List1 x DC Power Supply Host, 1 x Output Power Cord, 1 x User Manual

Details

Tips: Working principle of variable linear DC power supply

The working process of the main circuit of the linear DC power supply is that the input power is first subjected to the preliminary AC voltage stabilization by the pre-regulated circuit, and then converted into the DC power supply through the isolation and rectification of the main working transformer, and then under the intelligent control of the control circuit and the single-chip micro-processing controller finely adjust the linear adjustment element to output a high precision DC voltage source.

Linear DC power supply can be widely used in scientific research, universities, laboratories, industrial and mining enterprises, electrolysis, electroplating and charging equipment.
