Automatic Screw Feeder Machine, Air-blowing Type

Automatic Screw Feeder Machine, Air-blowing Type
Automatic Screw Feeder Machine, Air-blowing Type
Automatic Screw Feeder Machine, Air-blowing Type
Automatic Screw Feeder Machine, Air-blowing Type
Automatic Screw Feeder Machine, Air-blowing Type
Automatic Screw Feeder Machine, Air-blowing Type
Automatic Screw Feeder Machine, Air-blowing Type
0 reviews • Write a review
from
$2,876.98
Ex Tax: $2,876.98
  • Stock: In Stock
  • Model: KOLAUT-ASF-H2
  • Weight: 1.00
  • SKU: KOLAUT-ASF-H2

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.5 Hp (370W) Regenerative Vortex Blower, 220V/380V
Quickview
0.5 Hp (370W) Regenerative Vortex Blower, 220V/380V
$437.59
Ex Tax:$437.59
Add to Cart Add to Wish List Compare this Product
1 Hp (750W) Explosion Proof Tube Axial Fan
Quickview
1 Hp (750W) Explosion Proof Tube Axial Fan
$659.86
Ex Tax:$659.86
Add to Cart Add to Wish List Compare this Product
1 Hp Tube Axial Fan, 3500 Cfm
Quickview
1 Hp Tube Axial Fan, 3500 Cfm
$299.86
Ex Tax:$299.86
Add to Cart Add to Wish List Compare this Product
1 Hp Tube Axial Fan, 3600 Cfm
Quickview
1 Hp Tube Axial Fan, 3600 Cfm
$278.65
Ex Tax:$278.65
Add to Cart Add to Wish List Compare this Product
1 KW 48V/120V Alternator, 3 Phase
Quickview
1 KW 48V/120V Alternator, 3 Phase
$753.84
Ex Tax:$753.84
Add to Cart Add to Wish List Compare this Product
1 Phase 0.7 Hp (550W) Regenerative Blower, 220V, 56 Cfm
Quickview
1 Phase 0.7 Hp (550W) Regenerative Blower, 220V, 56 Cfm
$592.51
Ex Tax:$592.51
Add to Cart Add to Wish List Compare this Product
1 Phase 1 Hp (750W) Regenerative Blower, 220V, 85 Cfm
Quickview
1 Phase 1 Hp (750W) Regenerative Blower, 220V, 85 Cfm
$646.88
Ex Tax:$646.88
Add to Cart Add to Wish List Compare this Product
1 Phase 1/2 Hp (400W) Regenerative Blower, 220V, 47 Cfm
Quickview
1 Phase 1/2 Hp (400W) Regenerative Blower, 220V, 47 Cfm
$525.87
Ex Tax:$525.87
Add to Cart Add to Wish List Compare this Product

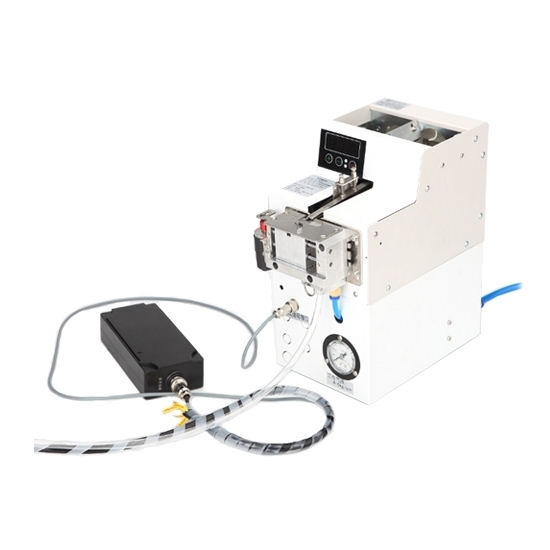

Automatic screw feeder machine mainly includes a air-blowing type screw feeding device and a handheld electric screwdriver. It can be used for locking screws in workpiece with 100mm depth hole. The working pressure, screwdriver torque and motor speed are all adjustable. The automatic screw feeder can automatically select and dispense screws. Its design not only enhances work efficiency but also diminishes the manual labor intensity.

Function:

  1. Air-blowing type automatic screw feeder machine with a lightweight design and compact structure can be placed above the workbench.
  2. There is no special skill required for the operator. The operator is easy to operate and not feel tired.
  3. Automatic screw feeder machine with high efficiency can increase the processing efficiency for 2-4 times and save 1-3 people for each machine, thereby quickly save production costs.
  4. Stable performance, long service life, no special maintenance is required. And occasional failure processing time does not exceed 1 minute, which will not delay production progress.

Specification:

ModelKOLAUT-CBD-668
Shipping weight7kg

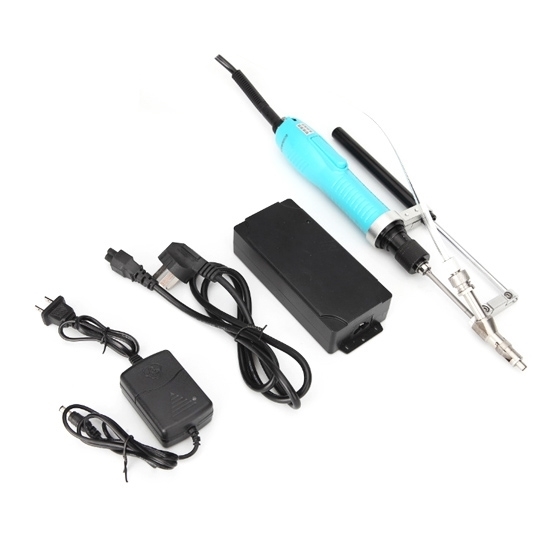

Packaging included1 * Automatic screw feeding device
1 * Electric screwdriver
1 * Electric screwdriver assembly
1 * Feeding pipe
2 * Power adapter with cable
Power supply100~240VAC, 50/60Hz, 1~2A
Rated power50W
Screw feeding methodAir-blowing type
Working pressure5~6kg.f/cm2
Screw feeding speed60~80pcs/min
Screw feeding distance1.5~2m
Screw locking speed50~70pcs/min (according to screw length)
Screw feeding device parameterDiameter: 320*145*270mm (L*W*H)
Working voltage: 15VDC (2000mA)
Weight: 5.5kg
Capacity of screw storage box1000pcs of M3*8 screw (according to screw size)
Screwdriver parameterDiameter: 230*42.5mm
Internal motor: Brushless DC motor
Motor speed: 1000-1800rpm
Working voltage: 32VDC (3A)
Torque range: 0.5-25Nm (torque can be adjusted)
Weight:750g
Types of screw *Material: all
Thread: M1.0~M6.0
Total length of screw: 2.7-25mm (total length of screw≥1.2 diameter of nut)
Diameter of nut: 1.0-12mm
Types of nut: See details as above types of nut diagram
Note: It is best to contact our customer service to confirm whether your screws are suitable for this model, especially nonstandard screws need to be given detailed dimensions and pictures.
Warranty2 years

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Types of nut diagram:
