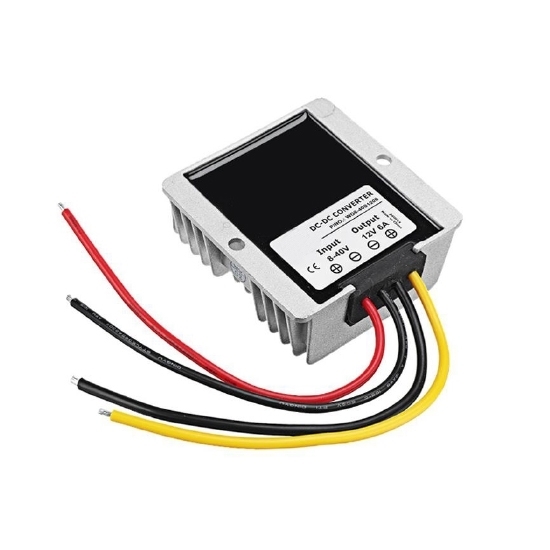

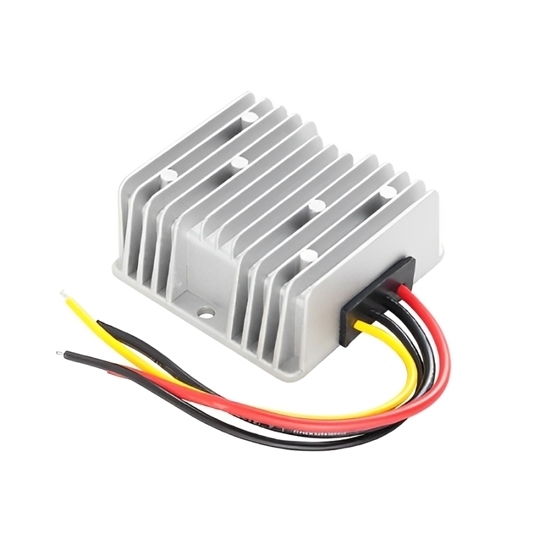

DC-DC Boost-Buck Converter, 8-40V To 12V

DC-DC Boost-Buck Converter, 8-40V To 12V
DC-DC Boost-Buck Converter, 8-40V To 12V
DC-DC Boost-Buck Converter, 8-40V To 12V
DC-DC Boost-Buck Converter, 8-40V To 12V
DC-DC Boost-Buck Converter, 8-40V To 12V
0 reviews • Write a review
from
$70.92
Ex Tax: $70.92
  • Stock: In Stock
  • Model: KOLAUT-DCDC-83612
  • Weight: 1.00
  • SKU: KOLAUT-DCDC-83612

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.5 KVA Single Phase Variac Voltage Regulator
Quickview
0.5 KVA Single Phase Variac Voltage Regulator
$169.58
Ex Tax:$169.58
Add to Cart Add to Wish List Compare this Product
1 KVA 3-Phase Autotransformer, 380V To 220/200V
Quickview
1 KVA 3-Phase Autotransformer, 380V To 220/200V
$873.69
Ex Tax:$873.69
Add to Cart Add to Wish List Compare this Product
1 KVA Isolation Transformer, Single Phase, 240V To 120V
Quickview
1 KVA Isolation Transformer, Single Phase, 240V To 120V
$784.36
Ex Tax:$784.36
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Automatic Voltage Stabilizer For Home
Quickview
1 KVA Single Phase Automatic Voltage Stabilizer For Home
$203.69
Ex Tax:$203.69
Add to Cart Add to Wish List Compare this Product
1 KVA Single Phase Variac Voltage Regulator
Quickview
1 KVA Single Phase Variac Voltage Regulator
$256.32
Ex Tax:$256.32
Add to Cart Add to Wish List Compare this Product
1.5 KVA 3 Phase Variac Voltage Regulator
Quickview
1.5 KVA 3 Phase Variac Voltage Regulator
$589.39
Ex Tax:$589.39
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Output
Quickview
10 Hp (7.5 KW) AC Line Reactor, 3 Phase Output
$295.86
Ex Tax:$295.86
Add to Cart Add to Wish List Compare this Product

DC-DC mini converter is adopted synchronous rectification technology, high efficiency up to 96%, compact size, light weight and wide applications.

Features

  • Wide input voltage range: 8V to 40V.
  • Brand-new, die-cast aluminum shell and high quality design, maximum transfer efficiency of 96%.
  • This non-isolated power module comes with waterproof lever of IP68, moisture-proof & anti-shock protection.
  • Auto-recovery when device is back to normal operating.
  • Built-in full protection against over/under voltage input, over-current, overload, over-temperature and short circuit.
  • Industry grade DC 12V/24V to 12V boost converter, widely used in automotive, electricity, surveillance systems, railway signals, instruments, solar generate electricity, display screen of bus and taxi, car audio device, security systems, hospital equipment, telecommunications etc.

Specifications

ModelKOLAUTWG8-40S1206KOLAUTWG8-40S1210KOLAUTWG8-40S1220
Absolute Maximum Ratings
Operating Ambient Temperature-40-50℃
Shell Ambient Temperature-40-80℃
Storage Temperature-55-100℃
Operating Humidity5-95% (Non-condensing)
Atmospheric Pressure62-106Kpa
Altitude4000m
Cooling WayNatural Cooling
Input Characteristics
Input Voltage8-40V (Typ. 12/24)
Max. Input Voltage40V (Continuous)45V (Continuous)
Undervoltage Shutdown7.8-8.2V (Automatic Recovery)7.3-8.2V (Automatic Recovery)
Undervoltage Recovery8.5-8.7V (Automatic Recovery)7.6-8.2V (Automatic Recovery)
Max. Input Current11.3A (Vin=8.1V; Iout =6A)18A (Vin=8.1V; Iout =10A)33A (Vin=8V; Iout =20A)
No Load Current47mA (Vin=12V)55mA (Vin=12V)50mA (Vin=12V)
Positive Electrode Cable16 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)14 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)12 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)
Negative Electrode Cable
Enable Pin Cable22 AWG (If the product has this feature)N/A
Fuse30A (Input positive has built-in fuse)40A (Input positive has built-in fuse)
Output Characteristics
Efficiency90.8% (Vin=12V; Iout=6A)90.8% (Vin=12V; Iout=10A)96% (Vin=12V; Iout=20A)
Output Voltage11.9-12.3V (Vin=12V; Iout=6A)11.9-12.3V (Vin=12V; Iout =10A)11.8-12.4V (Vin=12V; Iout =20A)
Regulator Accuracy±1%±5%
Voltage Regulation±3%
Load Regulation±3%
Overvoltage ProtectionN/A45.5-47.0V
Output Current0-6A0-10A0-20A
Overcurrent Protection9.7-10.2A (Vin=12V)16.3-16.7A (Vin=12V)21-24A (Vin=12V)
External Capacitance0-4000μFμF (Don' t Need)
Output Ripple and Noise130mVp-p (Vin=8-40V; Iout=6A, Oscilloscope Bandwidth: 20 MHz)230mVp-p (Vin=8-40V; Iout=10A, Oscilloscope Bandwidth: 20 MHz)250mVp-p (Vin=8-40V; Iout=20A, Oscilloscope Bandwidth: 20 MHz)
Output Voltage Rise Time5.0mS4.8mS30mS
Boot Delay Time14mS15mS35mS
Out Voltage Overshoot2% (Vin=12V, 50%-75% Load Step)
Over Temperature ProtectionN/A85℃ (Shell)
Short Circuit ProtectionYes (Long-term (4h) Short Circuit is Not Damaged, Hiccup Mode)
Positive Electrode Cable16 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)14 AWG (If the wire length is greater than 50cm, it is recommended to use a thicker wire diameter.)
Negative Electrode Cable
Safety and EMC Features
Anti-electric Strength
Input to OutputN/A
Input to Shell≥500V (Leakage Current ≤ 3.5mA, 1min,
No Breakdown, No Arcing)
Output to Shell
Insulation Resistance
Input to Output≥50MΩ (Test Voltage =500V)
Input to Shell
Output to Shell
Other Characteristics
WeightAbout 290g
PackageWhite Box
MTBF≥200000H
Switching Frequency80±10kHz150±10kHz


DC-DC Converter Model Selection

CodeModelPriceInput VoltageOutput VoltageOutput CurrentOutput PowerEfficiencySizeDownload
1KOLAUTWG8-40S1206$60.928-40V DC12V DC6 Amps72 Watts90.8%74*74*32mm
2KOLAUTWG8-40S1210$64.618-40V DC12V DC10 Amps120 Watts90.8%74*74*32mm
3KOLAUTWG8-40S1220$78.468-40V DC12V DC20 Amps240 Watts96%74*74*32mm

Note: The DC-DC boost converter models are all here, check the parameter carefully from the table and select the right converter power supply when place the order.

Tips: What can a DC-DC buck-boost Converter do?

The DC-DC buck-boost converter can regulate and stabilize voltage by either increasing (boosting) or decreasing (bucking) the input voltage to maintain a constant output voltage. It is especially useful in systems where the input voltage can vary widely, such as in battery-powered devices, solar panels, or automotive electronics, ensuring the connected components receive a steady voltage regardless of changes in the power source.
