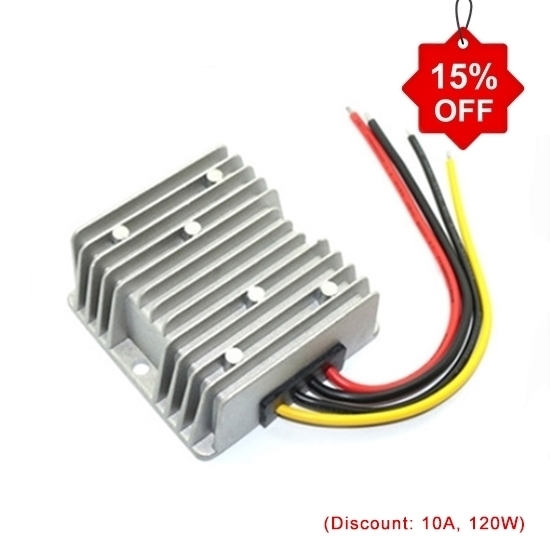

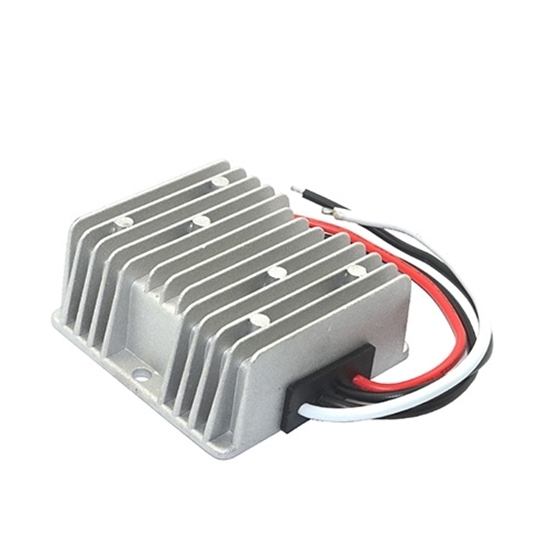

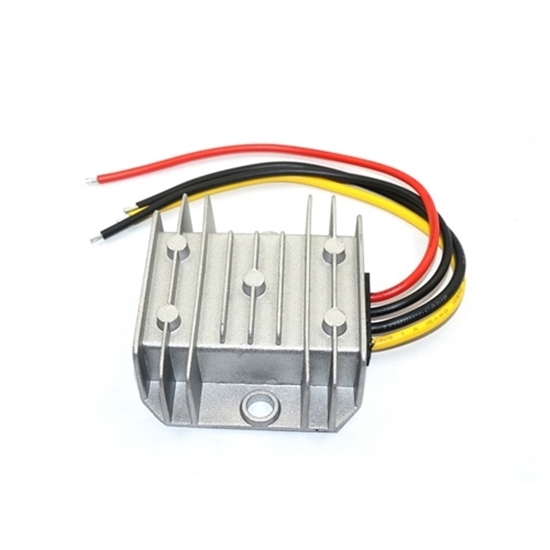

High performance 48V to 12V mini buck converter series adopted synchronous rectification technology, the length of the line is about 15cm, easy to install. IP68 Waterproof alloy housing makes the step-down DC-DC converters ideal for use in a wide range of applications.

Note*: Get a special 15% off when you purchase a 10A DC-DC buck converter. The prices shown on this page already reflect the discount.

Features

• Wide input voltage range: 35V to 60V.
• Brand-new, die-cast aluminum shell and high quality design, maximum transfer efficiency of 95%.
• This step down module comes with waterproof lever of IP68, moisture-proof & anti-shock protection.
• Auto-recovery when device is back to normal operating.
• Built-in full protection against over/under voltage input, over-current, overload, over-temperature and short circuit.
• Industry grade DC 48V to 12V buck converter, widely used in automotive, electricity, surveillance systems, railway signals, instruments, solar generate electricity, display screen of bus and taxi, car audio device, security systems, hospital equipment, telecommunications etc.

15A DC-DC Buck Converter Specification

48V to 12V DC-DC Buck Converter Model Selection

Note: The series of 48V to 12V DC-DC buck converter models are all here, check the parameter carefully from the table and select the right converter power supply when place the order.

Tips: What is the overload protection mechanism of the step down converter?

DC-DC buck converters usually employ an overload protection mechanism to prevent the output current from exceeding the rated value and damaging the equipment or the buck converter itself. The most common overload protection mechanism is current limiting, which monitors the output current and switches off or limits the converter when it exceeds a set threshold. This is usually accomplished by introducing a current-sense resistor at the converter output and connecting it to a comparator. When the output current exceeds the set value, the comparator will trigger the controller to turn off the switching tube or reduce the duty cycle, thereby limiting the output current. In addition, some buck converters may also use mechanisms such as over-temperature protection, short-circuit protection, or input over-voltage protection to enhance overload protection. The combination of these protection mechanisms ensures safe and reliable operation of the step down converter under abnormal load conditions or external disturbances.
