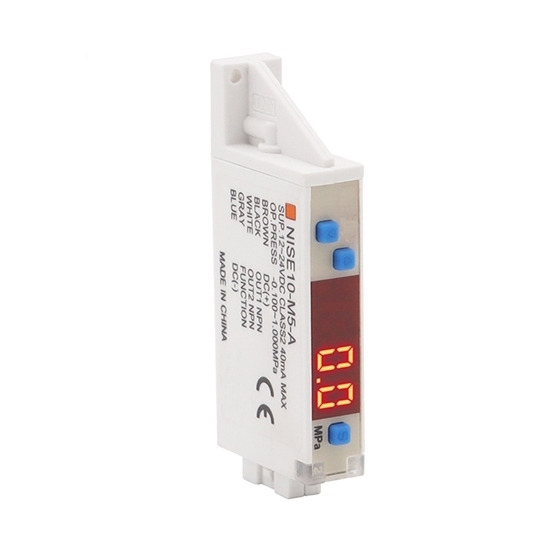

Digital Air Pressure Switch, M5

Digital Air Pressure Switch, M5
Digital Air Pressure Switch, M5
0 reviews • Write a review
from
$142.06
Ex Tax: $142.06
  • Stock: In Stock
  • Model: KOLAUT-DPS-10
  • Weight: 1.00
  • SKU: KOLAUT-DPS-10

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.0015μF 1250V Metal Film Capacitor
Quickview
0.0015μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 1250V Metal Film Capacitor
Quickview
0.001μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 630V Metal Film Capacitor
Quickview
0.001μF 630V Metal Film Capacitor
$0.13
Ex Tax:$0.13
Add to Cart Add to Wish List Compare this Product
0.01μF 100V Disc Ceramic Capacitor
Quickview
0.01μF 100V Disc Ceramic Capacitor
$1.04
Ex Tax:$1.04
Add to Cart Add to Wish List Compare this Product
0.01μF 1kV Disc Ceramic Capacitor
Quickview
0.01μF 1kV Disc Ceramic Capacitor
$1.09
Ex Tax:$1.09
Add to Cart Add to Wish List Compare this Product
0.022μF 1kV Disc Ceramic Capacitor
Quickview
0.022μF 1kV Disc Ceramic Capacitor
$1.29
Ex Tax:$1.29
Add to Cart Add to Wish List Compare this Product
0.022μF 2000V Metal Film Capacitor
Quickview
0.022μF 2000V Metal Film Capacitor
$0.28
Ex Tax:$0.28
Add to Cart Add to Wish List Compare this Product
0.033μF 1600V Metal Film Capacitor
Quickview
0.033μF 1600V Metal Film Capacitor
$0.35
Ex Tax:$0.35
Add to Cart Add to Wish List Compare this Product

Digital air pressure switch which support two colors digital display, lower cost pressure switch with max. current 80mA, 2.5 ms fast response time.

Features

  • The air pressure is proportional to the electrical signal, enabling continuous control of the pressure.
  • Thin 9.8mm, realize integration, save space and light weight.
  • Digital display of pressure.

Specification

ModelKOLAUT-NZSE10KOLAUT-NZSE10FKOLAUT-NISE10
Rated pressure range0.0~101.0kPa-100.0~100.0kPa-100.0~1.000MPa
Display/ Set pressure range10.0~105.0kPa-105.0~105.0kPa-105.0~1.050MPa
Withstand pressure500kPa500kPa1.5MPa
Display/ Minimum unit setting0.1kPa0.1kPa0.001MPa
Switch output NPN or PNP open collector 2 outputs
Maximum load current80mA
Maximum applied voltage28 V (With NPN output)
Residual voltage2 V or less (With load current of 80 mA)
Response time2.5 ms or less (Response time selections with anti-chattering function: 20, 100, 500, 1000, 2000 ms)
Short circuit protectionYes
HysteresisHysteresis modeVariable (0 or above)
Window comparator mode
Analog output (Voltage output)Output voltage (Rated pressure range)1~5V±2.5%F.S.1~5V±2.5%F.S.
Linearity±1%F.S.
Output impedenceApprox. 1kΩ
EnvironmentEnclosureIP40
Operating temperature rangeOperating: –5 to 50°C, Stored: –10 to 60°C (No freezing or condensation)
Operating humidity rangeOperating and stored: 35 to 85% RH (No condensation)
Withstand voltageAC1000V for 1 minute between terminals and housing
Insulation resisitance50MΩ or more (500 VDC measured via megohmmeter) between terminals and housing
Vibration resistant10~150Hz, the lesser of 1.5mm full amplitude or 20m/s², 2 hours in each direction of xyz (without power)
Shock proof100m/ s² 3 times in each direction of XYZ (without electricity)
FluidAir, Non-corrosive gas, Non-flammable gas
Takeover diameterM5
Power supply voltage12 to 24 VDC ±10%, Ripple (p-p) 10% or less (With power supply polarity protection)
Current consumption40 mA or less
Repeat accurancy±0.2% F.S.±1 digit
Display3 1/2 digit, 7-segment indicator, 1-color display (Red)
Display accurancy±2% F.S. ±1 digit (at 25°C ±3°C ambient temperature)
Indicator lightLights up when output is turned ON. OUT1: Green; OUT2: Red
Lead wire with connector±2% F.S. (at 25°C in an operating range of -5 to 50°C)
Temperature characteristicsOilproof heavy-duty vinyl cable.5 cores, ∅3.5, 2 m, Conductor area: 0.15 mm2 (AWG26) Insulator O.D.: 1.0 mm
StandardsCE marking, RoHS, UL/ CSA

Internal Circuits and Wiring

Dimension (mm)

Piping specification

ModelM5M5
Port sizeM5*0.8 (Side port)M5*0.8 (Rear ported)
Wetted part materialSensor pressure receiving areaSensor pressure receiving area: Silicon
Piping portC3604 (Electroless nickel plating)
O-ring: HNBR
WeightWith lead wire with connector (5 cores, 2m)55g
Without lead wire with connector15g

Tips: What is Digital Pressure Switch?

The digital pressure switch has a built-in precision pressure sensor, amplifies the pressure signal through a high-precision instrumentation amplifier, collects and processes data through a high-speed MCU, generally uses 4-digit LED real-time digital pressure display, relay signal output, and upper and lower limit control points can be freely set , small hysteresis, anti-vibration, fast response, stable and reliable, high precision (accuracy is generally ±0.5% F.S, high is ±0.2% F.S), the use of hysteresis setting can effectively protect the repeated action caused by pressure fluctuations, protection control The equipment is a high-precision equipment that detects pressure and liquid level signals and realizes pressure and liquid level monitoring and control.
