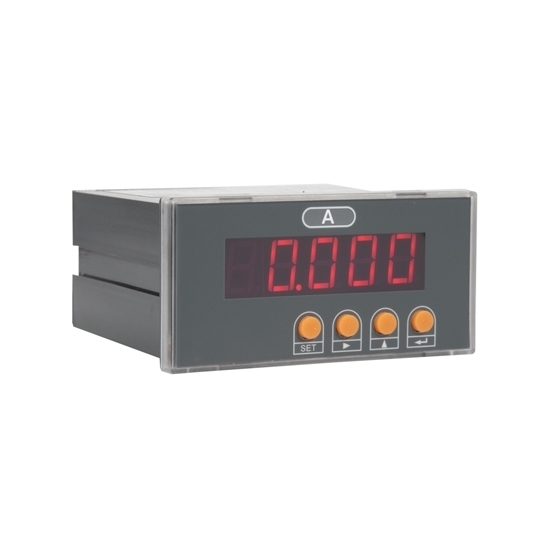

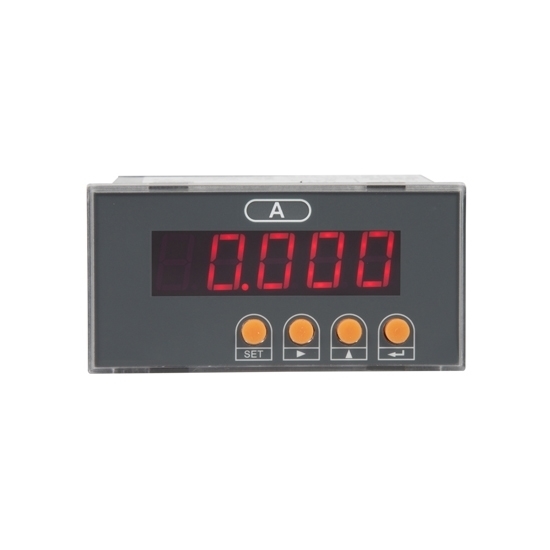

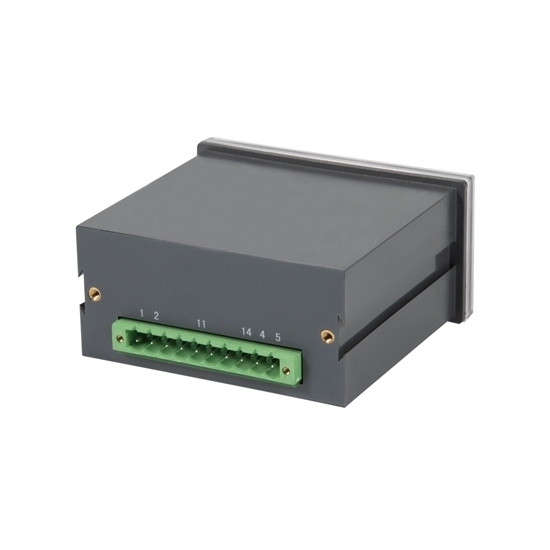

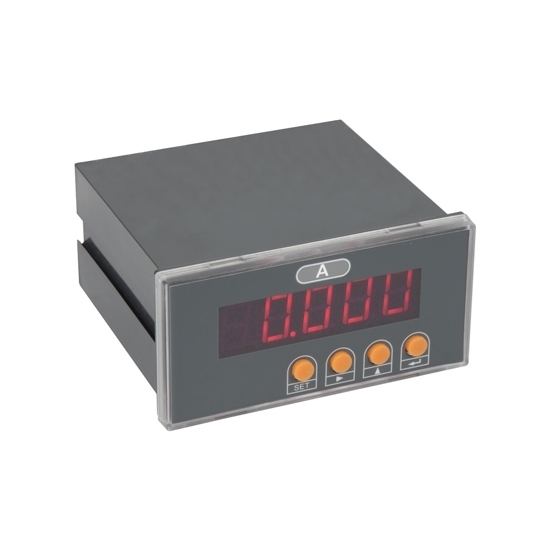

Digital Panel Meter For DC Current Sensor, 4 Digit

Digital Panel Meter For DC Current Sensor, 4 Digit
Digital Panel Meter For DC Current Sensor, 4 Digit
Digital Panel Meter For DC Current Sensor, 4 Digit
Digital Panel Meter For DC Current Sensor, 4 Digit
Digital Panel Meter For DC Current Sensor, 4 Digit
Digital Panel Meter For DC Current Sensor, 4 Digit
Digital Panel Meter For DC Current Sensor, 4 Digit
Digital Panel Meter For DC Current Sensor, 4 Digit
Digital Panel Meter For DC Current Sensor, 4 Digit
0 reviews • Write a review
from
$166.92
Ex Tax: $166.92
  • Stock: In Stock
  • Model: KOLAUT-DPM-PZ96B
  • Weight: 1.00
  • SKU: KOLAUT-DPM-PZ96B

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0-0.2" Digital Dial Indicator, 0.0005" Resolution
Quickview
0-0.2" Digital Dial Indicator, 0.0005" Resolution
$325.78
Ex Tax:$325.78
Add to Cart Add to Wish List Compare this Product
0-0.5" Digital Dial Indicator, 0.0005" Resolution
Quickview
0-0.5" Digital Dial Indicator, 0.0005" Resolution
$329.78
Ex Tax:$329.78
Add to Cart Add to Wish List Compare this Product
0-1" Digital Dial Indicator, 0.0005" Resolution
Quickview
0-1" Digital Dial Indicator, 0.0005" Resolution
$399.86
Ex Tax:$399.86
Add to Cart Add to Wish List Compare this Product
0-1" Range Digital Micrometer, 0.00005 Inch Accuracy
Quickview
0-1" Range Digital Micrometer, 0.00005 Inch Accuracy
$139.62
Ex Tax:$139.62
Add to Cart Add to Wish List Compare this Product
0-1" Range Digital Micrometer, 0.00007 Inch Accuracy
Quickview
0-1" Range Digital Micrometer, 0.00007 Inch Accuracy
$139.62
Ex Tax:$139.62
Add to Cart Add to Wish List Compare this Product
0-1000 NTU Handheld Digital Turbidity Meter
Quickview
0-1000 NTU Handheld Digital Turbidity Meter
$828.76
Ex Tax:$828.76
Add to Cart Add to Wish List Compare this Product
0-1300 μm Digital Coating Thickness Gauge
Quickview
0-1300 μm Digital Coating Thickness Gauge
$140.76
Ex Tax:$140.76
Add to Cart Add to Wish List Compare this Product
0-1500 μm Digital Coating Thickness Gauge
Quickview
0-1500 μm Digital Coating Thickness Gauge
$161.98
Ex Tax:$161.98
Add to Cart Add to Wish List Compare this Product

Buy an KOLAUT 4-digit display controller for DC current sensor. It is equipped with an RS-485 communication interface and Modbus-RTU protocol, providing analog outputs, relay alarm outputs, and digital input/output. Parameters such as ratio, alarm, and communication can be set and controlled via the keypad on the instrument panel to meet specific needs.

Specifications

ModelKOLAUT-PZ96B
Recommended Matching SensorKOLAUT-CUS-DC1500 (For other sensor models, please contact us.)
InputFrequency45~65Hz
VoltageRatings: AC 100V, 380V; DC 300V, 1000V
Overload: 1.2 times the rated value (continuous); 2 times the rated value or 1 second
Power Consumption: Less than 0.5VA
CurrentRatings: AC 1A, 5A; DC 75mV, 10V, 0-20mA, 4-20mA, 5A
Overload: 1.2 times the rated value (continuous); 10 times the rated value for 1 second
Power Consumption: Less than 0.5VA
OuputCommunicationRS485 interface, Modbus-RTU protocol
DisplayLED
FunctionSwitching (Input)4 dry contact inputs
Switching (Output)Output: 2 relay normally open contact outputs
Contact rating: AC meter capacity: 1A/30VDC or 1A/250VAC; DC meter capacity: 2A/30V DC or 2A/250VAC
Analog OutputOutput: 1 output, 0-20mA, 4-20mA programmable
Load capacity: ≤500Ω
Measurement AccuracyCurrent/voltage level 0.5
Power SupplyAC 85~265V or DC 100~350V; power consumption <5VA
Safety

Power frequency withstand voltage:

AC2kV 1min between power supply//switching output//current input//voltage input and transmitter//communication//switching input;
AC2kV 1min between power supply, switching output, current input, and voltage input;
AC1kV 1min between transmitter, communication, and switching input; Insulation resistance: input and output terminals to housing >100MΩ.

EnvironmentOperating temperature: -10℃~+55℃; Storage temperature: -25℃~+70℃; Relative humidity: ≤ 93%RH, non-condensing; Altitude: ≤2500m


Dimensions (Unit: mm)

Tips: Why do DC current sensors need a digital panel meter?

A DC current sensor only converts the current into an electrical signal, such as a small voltage or current, but this signal by itself is not easy to read or understand. A digital panel meter is needed to take that sensor signal, scale it to the correct range, and display it as a clear numerical value in real time. This makes the measurement visible to operators, allows easy monitoring, and in some cases also provides alarm or control outputs for added functionality.
