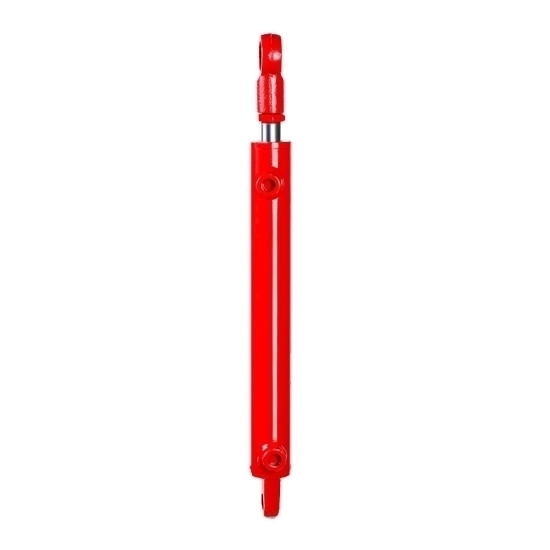

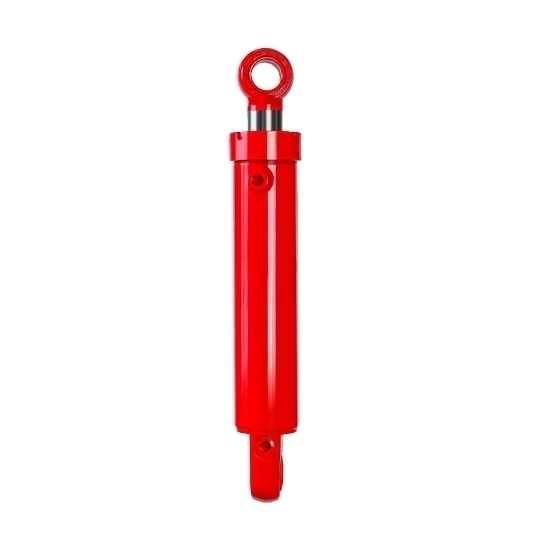

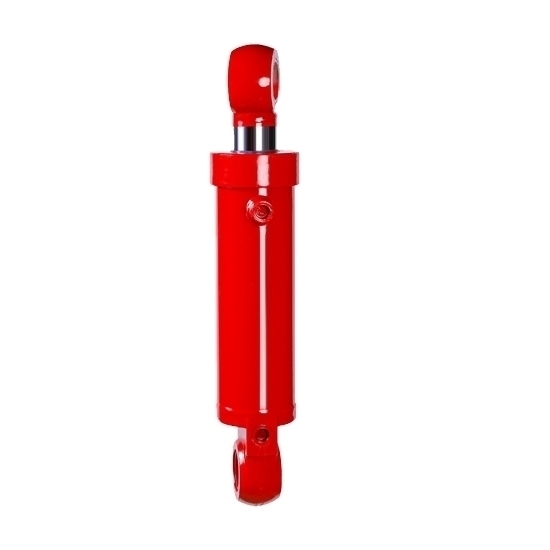

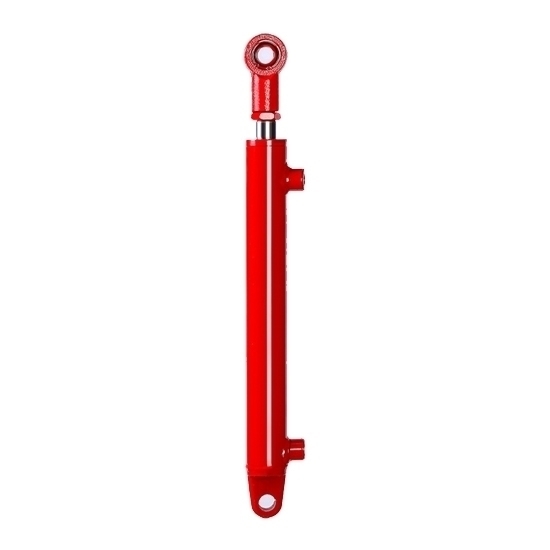

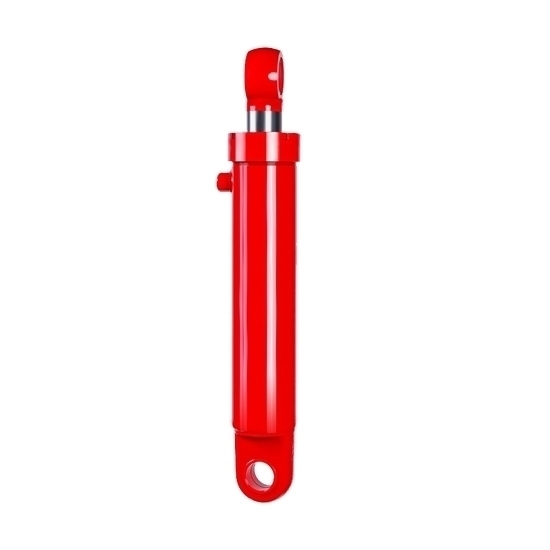

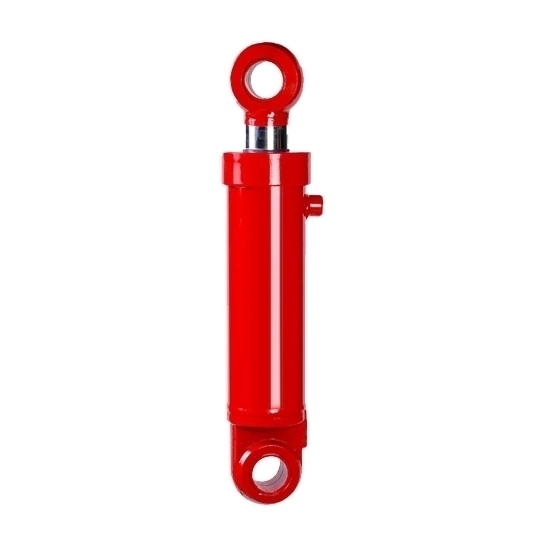

14 inch stroke double acting welded hydraulic cylinders are commonly used in mini excavators, robots, log splitters, dump trucks, press machine and dump trailers, and more. They are capable of performing pushing and pulling actions, making them versatile for tasks that require controlled movement and force in both directions.

Specification

Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

KOLAUT-HSG40350

KOLAUT-HSG50350

KOLAUT-HSG80350

KOLAUT-HSG100350

Tips: Difference between double acting and single acting hydraulic cylinder

Double acting and single acting hydraulic cylinders are two different actuator types in hydraulic systems, and the key difference between them is the way they operate. Double acting hydraulic cylinders have two ports, one for liquid entry and the other for liquid discharge. It is capable of exerting force in both extension and retraction directions. When hydraulic fluid is supplied to the inlet port, the hydraulic cylinder extends and when fluid is discharged from the outlet port, it retracts. Double-acting hydraulic cylinders are extremely versatile and are often used in a variety of applications that require both pushing and pulling power. Single-acting hydraulic cylinders usually have only one port for fluid entry. It can only exert force in one direction (usually the extension direction) and relies on an external force (such as a spring or load) to achieve the return or retraction stroke. Single-acting hydraulic cylinders are simpler and are typically used in applications where force needs to be generated in only one direction, such as lifting or pressing applications. In summary, the main difference between these hydraulic cylinders is their ability to generate force in one or two directions, which makes them suitable for different hydraulic system needs.
