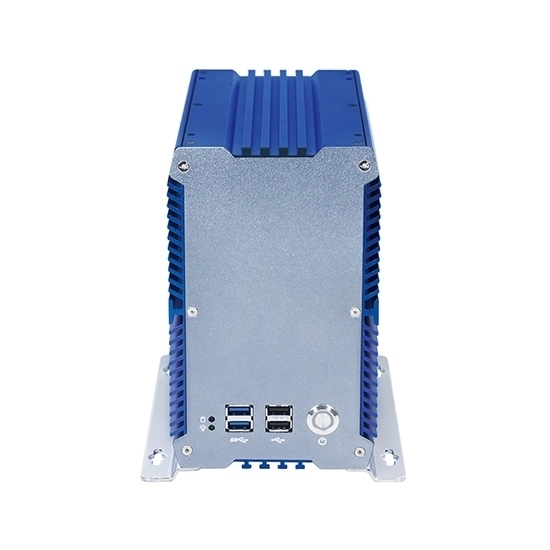

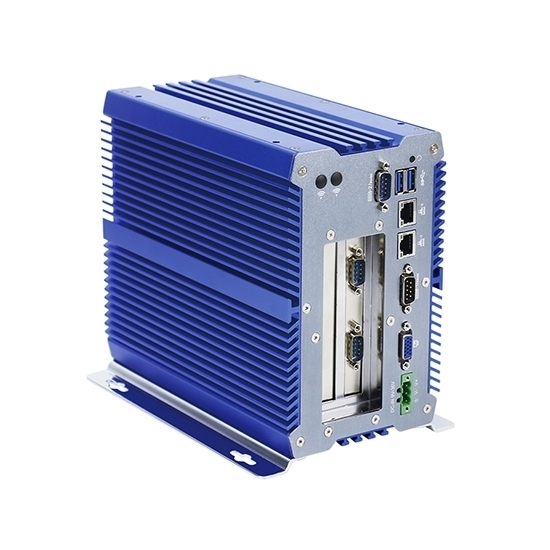

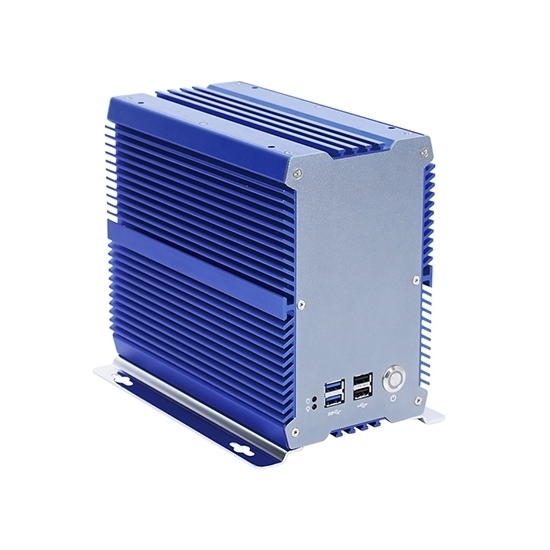

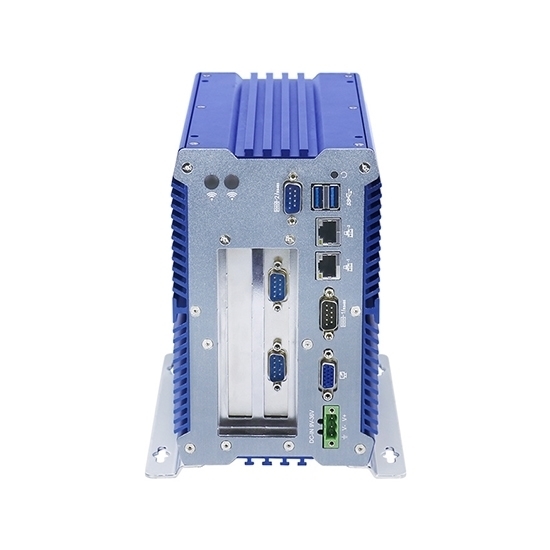

Embedded Fanless Industrial PC, Core I5 I7, Celeron 3865U

Embedded Fanless Industrial PC, Core I5 I7, Celeron 3865U
Embedded Fanless Industrial PC, Core I5 I7, Celeron 3865U
Embedded Fanless Industrial PC, Core I5 I7, Celeron 3865U
Embedded Fanless Industrial PC, Core I5 I7, Celeron 3865U
Embedded Fanless Industrial PC, Core I5 I7, Celeron 3865U
Embedded Fanless Industrial PC, Core I5 I7, Celeron 3865U
Embedded Fanless Industrial PC, Core I5 I7, Celeron 3865U
Embedded Fanless Industrial PC, Core I5 I7, Celeron 3865U
Embedded Fanless Industrial PC, Core I5 I7, Celeron 3865U
0 reviews • Write a review
from
$1,232.46
Ex Tax: $1,232.46
  • Stock: In Stock
  • Model: KOLAUT-IPC-i35C3865
  • Weight: 1.00
  • SKU: KOLAUT-IPC-i35C3865

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
10 Port Gigabit Managed Industrial Switch, Din Rail
Quickview
10 Port Gigabit Managed Industrial Switch, Din Rail
$746.15
Ex Tax:$746.15
Add to Cart Add to Wish List Compare this Product
12 Port Full Gigabit Unmanaged Industrial Switch, Din Rail
Quickview
12 Port Full Gigabit Unmanaged Industrial Switch, Din Rail
$798.46
Ex Tax:$798.46
Add to Cart Add to Wish List Compare this Product
16 Port Managed Industrial Switch, 10/100M, Din Rail
Quickview
16 Port Managed Industrial Switch, 10/100M, Din Rail
$738.46
Ex Tax:$738.46
Add to Cart Add to Wish List Compare this Product
16 Port Unmanaged Industrial Switch, Layer 2, Rack Mount
Quickview
16 Port Unmanaged Industrial Switch, Layer 2, Rack Mount
$422.31
Ex Tax:$422.31
Add to Cart Add to Wish List Compare this Product
20 Port Full Gigabit Managed Industrial Switch
Quickview
20 Port Full Gigabit Managed Industrial Switch
$1,073.85
Ex Tax:$1,073.85
Add to Cart Add to Wish List Compare this Product
20 Port Full Gigabit Unmanaged Industrial Switch, Rack Mount
Quickview
20 Port Full Gigabit Unmanaged Industrial Switch, Rack Mount
$924.00
Ex Tax:$924.00
Add to Cart Add to Wish List Compare this Product
4-20mA/0-5V To RS485 Converter, 7 Channel
Quickview
4-20mA/0-5V To RS485 Converter, 7 Channel
$139.45
Ex Tax:$139.45
Add to Cart Add to Wish List Compare this Product
4-20mA/0-5V To RS485 Converter, 8 Channel
Quickview
4-20mA/0-5V To RS485 Converter, 8 Channel
$115.89
Ex Tax:$115.89
Add to Cart Add to Wish List Compare this Product

Embedded fanless industrial PC works at 9~36V input voltage. Select CPU Intel Core i5 7200U/ Core i7 7500U/ Celeron 3865U (dual core dual/quad threads), applicable system Linux/Windows 7/Windows 10, interface Intel 1000M LAN*2, COM*4. Industrial grade computer not only for industrial automation, but also medical, logistics transportation, warehouse, electronic education, machine and so on.

Specification

ModelKOLAUT-IBOX-701 Plus
CPUIntel Core i5 7200U (Dual core quad threads, 3MB third level cache, 2.5GHz, Max turbo 3.1GHz)
Intel Core i7 7500U (Dual core quad threads, 4MB third level cache, 2.7GHz, Max turbo 3.5GHz)
Intel Celeron 3865U (Dual core dual threads, 2MB third level cache, 1.8GHz)
Usable SystemLinux, Windows 7, Windows 10
RAM1*DDR4 1866/2133 SODIMM RAM Slot, Max. 16GB
BIOSAMI EFI BIOS
Display ChipIntegrated Intel HD Graphics 610/620
Display Port1*VGA, 1*HDMI Built-in Pin (Support synchronous and asynchronous dual display)
Front I/O Interface2*USB 3.0
2*USB 2.0
2*Indicator light
1*Power Switch
Rear I/O Interface2*USB 3.0
2*Intel 1000M LAN
1*VGA
1*3Pin Power supply Phoenix Connector
1*Clean COMS button
Standard 4*COM (6*COM Optional, COM1 and COM2 have RS232/422/485 Optional)
Expansion Port1*MINI PCIE Slot (WIFI/3G/4G Optional, please contact us for configuration), Embedded SIM Slot
1*MINI PCIE Slot (Support MSATA)
Optional Ports: GPIO, Audio, HDMI, 2*COM (Standard version doesn't include these ports)
Expansion Slot (Choose 1 from 3)Standard Slot: 2*PCI (32bit), Built-in 1*USB 2.0
Optional Slot:
1*PCIE X4 + 1*PCI (32bit), Built-in 1*USB 2.0
1*PCIE X4 + 1 PCIE X1, Built-in 1*USB 2.0
Network2*Intel i211-AT 10/100/1000M LAN
Storage1*MSATA slot, Onboard 1*2.5" HDD
Input VoltageDC 9V～36V wide voltage Input,
support positive pole and negative electrode connect reversely protection
Other FunctionAuto power on when there is electricity, timing boot, Wake on LAN, PXE boot,
Watchdog (0～255 level)
Working Temperature0 ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD), Surface air flow
Working Humidity5%~95% non-condensing
CertificationCE, CCC, FCC Class A, ROHS
ColorBlue + Grey (Any color can be customized)
MaterialHigh-quality all aluminum, surface anodic oxidation
Dimension215 * 185 * 115mm (Not include the brackets)
Net Weight3.6 kg (Not include the brackets)

Embedded Fanless Industrial PC Dimensions Diagram (Unit: mm)

Accessories List

NameQuantitySpecification
Power Adapter1DC 12V, 5A/ 12V, 10A
Power Cord1Any Plug Optional
(US, EU, UK etc.)
VESA Bracket2Standard
Motherboard CD1Neutral

Tips: What are the common faults of fanless industrial PC?

Troubles when repairing fanless industrial PC hard drives

  1. The hard disk is very slow when running programs, and it also crashes sometimes.
  2. When the fanless industrial PC starts, the screen prompts that the hard disk cannot be found.
  3. The hard disk makes a clicking sound and other abnormal sounds, and system cannot be started.
  4. The hard disk circuit board burns and smokes.
  5. Accidental deletion, accidental formatting, accidental clone, accidental partition, virus invasion, etc.

Troubles when repairing fanless industrial PC keyboards

  1. The keys on fanless industrial PC keyboard do not work.
  2. Fanless industrial PC keyboard gets water.
  3. Keyboard of the fanless industrial PC automatically repeats keystrokes.

Trouble when repairing industrial PC battery

  1. The battery of fanless industrial PC is not charged.
  2. When using the battery, fanless industrial PC cannot be turned on.
  3. The fanless industrial PC battery can be charged, but the discharge time is particularly short.
