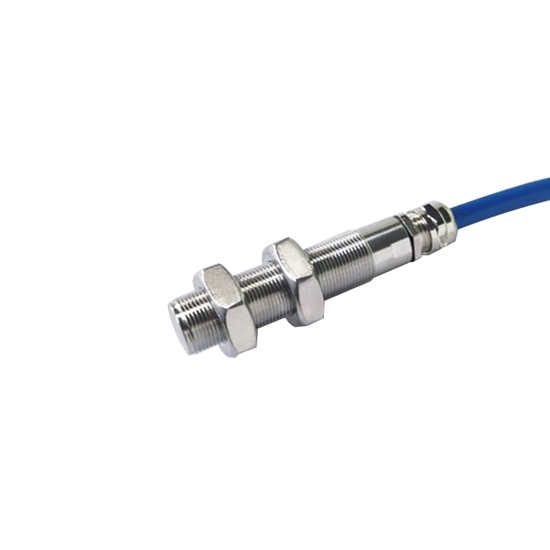

Explosion Proof Speed Sensor, M16

Explosion Proof Speed Sensor, M16
Explosion Proof Speed Sensor, M16
0 reviews • Write a review
from
$332.61
Ex Tax: $332.61
  • Stock: In Stock
  • Model: KOLAUT-EPSS-M16
  • Weight: 1.00
  • SKU: KOLAUT-EPSS-M16

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0-10V Signal Isolator, 1/2 Outputs
Quickview
0-10V Signal Isolator, 1/2 Outputs
$94.86
Ex Tax:$94.86
Add to Cart Add to Wish List Compare this Product
1" Digital Flow Switch For Water
Quickview
1" Digital Flow Switch For Water
$446.39
Ex Tax:$446.39
Add to Cart Add to Wish List Compare this Product
1-phase AC Current Transducer, 0-1A/5A/10A/20A
Quickview
1-phase AC Current Transducer, 0-1A/5A/10A/20A
$175.54
Ex Tax:$175.54
Add to Cart Add to Wish List Compare this Product
1-phase AC Voltage Transducer, 0~120V/300V/450V/600V
Quickview
1-phase AC Voltage Transducer, 0~120V/300V/450V/600V
$175.54
Ex Tax:$175.54
Add to Cart Add to Wish List Compare this Product
1/2" Digital Flow Switch For Air
Quickview
1/2" Digital Flow Switch For Air
$231.79
Ex Tax:$231.79
Add to Cart Add to Wish List Compare this Product
1/2" Digital Flow Switch For Water
Quickview
1/2" Digital Flow Switch For Water
$307.99
Ex Tax:$307.99
Add to Cart Add to Wish List Compare this Product
1000mm Level Sensors For Sewage Disposal System
Quickview
1000mm Level Sensors For Sewage Disposal System
$979.86
Ex Tax:$979.86
Add to Cart Add to Wish List Compare this Product
1000mm Magnetostrictive Displacement Sensor For Hydraulic Cylinder
Quickview
1000mm Magnetostrictive Displacement Sensor For Hydraulic Cylinder
$979.86
Ex Tax:$979.86
Add to Cart Add to Wish List Compare this Product

Non-contact explosion-proof speed sensors can measure the speed of gears or rotating objects. The shell of the speed sensor is made of durable integrated stainless steel or other explosion-proof materials. Single channel, M16 threaded installation, sensor specifications and sizes can be customized according to customer needs.

Specifications

Electrical Parameters
ModelKOLAUT-TSS
TypeExplosion-Proof Speed Sensor
Shell ShapeThreaded Cylinder
Shell SpecificationsM16
VoltageDC 4V~30V (Typical Value: 24V)
Working Frequency0Hz~20kHz
Measurement MethodNon-Contact Measurement
Sensing RangeConventional: 0.5mm~3mm, Special Type: 0.5mm~7mm, Measuring Magnet: 0.5mm~30m
Number of Output ChannelsSingle Channel
Output Signal TypeLevel Pulse, NPN, PNP
Mounting TypeExplosion Proof Cable Direct Outlet
Explosion-proof Cable2m (Default), Contact Us for Other Options
Output WaveformRectangular Wave
Output AmplitudeHigh Level≥Power Supply -1V, Low Level ≤0.5V
No-Load Power Consumption Current≤20mA
Insulation Resistance≥50MΩ@500V DC
Dielectric StrengthAC500V/ 50Hz/60s
Electromagnetic Compatibility.Comply with CE Standard EMC Requirements
Protective FunctionPower Supply Polarity Protection, Output Short Circuit Protection
Explosion-Proof PerformanceIntrinsically Safe Explosion-Proof
Explosion-Proof GradeEx(ia) II CT6 Ga
Mechanical Parameters
Measured ObjectThere are protrusions or grooves on the gear or the object to be measured.
Material Under TestMagnetic Mild Steel or Magnet
Sensor Housing MaterialIntegrated Stainless Steel Shell
Tensile StrengthThe cable exerts a tension of 30N@60min, and there is no displacement with the shell.
Environmental Parameters
Operating Temperature-40℃~+135℃
Storage and Transport Temperature-40℃~+150℃
Relative Humidity≤90%
High and Low Temperature PerformanceHigh and Low Temperature Cycle Test For 10 Cycles, (Low Temperature: -40 Degrees; High Temperature: 150 Degrees), Each Placed For 30 mins, Cycle Alternately
Vibration ResistanceX, Y, Z Direction, 30g/Hz, 5Hz~1200Hz, Random Vibration
Impact Resistance30g
Degree of ProtectionIP67


Features

  • It has passed the explosion-proof laboratory product certification.
  • Reliable explosion-proof speed sensor measures the speed of gears or rotating objects through non-contact, simple, stable, and maintenance-free.
  • Equipped with integrated stainless steel and explosion-proof connecting cable, the high-quality speed sensor is more suitable for harsh applications and explosion-proof requirements.
  • Threaded installation, specifications and sizes can be customized according to customer needs. If you have a need, please get in touch with us.

Dimension (Unit: mm)

*Note for Electrical Connection:

  • The direct outlet of the speed sensor is equipped with a 1~2m explosion-proof cable as standard.
  • Contact us for customizing the length or other mounting types (connector or cable direct outlet + connector).
  • 3 Wires: Brown/Red - Vcc+, Black/White - Signal, Blue - Gnd

Output Signal

Applications

Tips: What is a non-contact speed sensor?

A non-contact speed sensor, as the name suggests, is a type of sensor that can measure speed without physical contact with the moving object. This is often desirable in applications where contact-based sensors may introduce friction, wear, or other complications. Non-contact speed sensors can utilize various technologies such as optical sensors, magnetic sensors, or ultrasonic sensors to measure speed without direct contact with the object.
