Semi rotary hand pump is a manually operated device used to transfer liquids, commonly employed in industrial, agricultural, and marine settings. Designed with a semi-rotary mechanism, it features a handle that moves back and forth through a 180-degree arc, creating a suction and discharge action to pump the fluid.

Specification

• Model: KOLAUT-SRHP-YL1
• Dive Mode: Manual Semi Rotary
• Port Size: G3/4 inch Thread
• Suction Capacity: 5m
• Lift Capacity: 14m
• Flow Rate: 20 L/min
• Material: Cast Iron

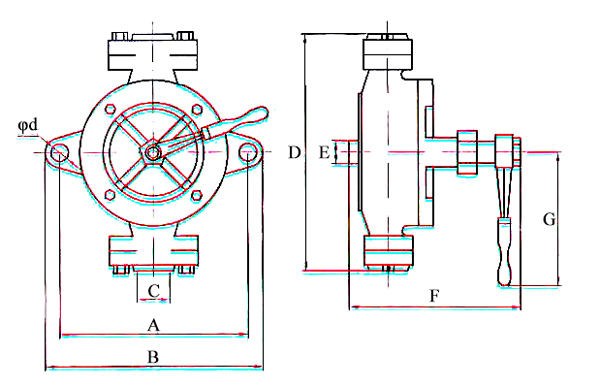

Dimension (Unit: mm)

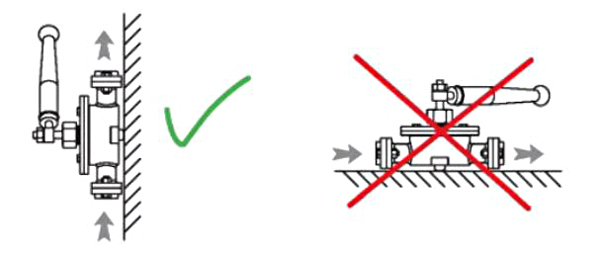

Installation

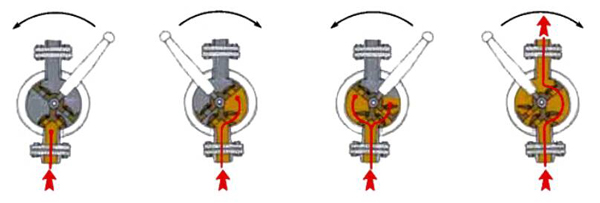

How to Use

Tips: Can semi rotary hand pump be used in high temperature environments?

Semi rotary hand pumps typically have temperature limitations due to their construction materials and seals. Many are designed for use within a moderate temperature range, often up to 60-80°C (140-176°F). In high-temperature environments exceeding these limits, the pump's performance and longevity may be compromised. Seals and lubricants can degrade faster, leading to potential leaks or failures.
