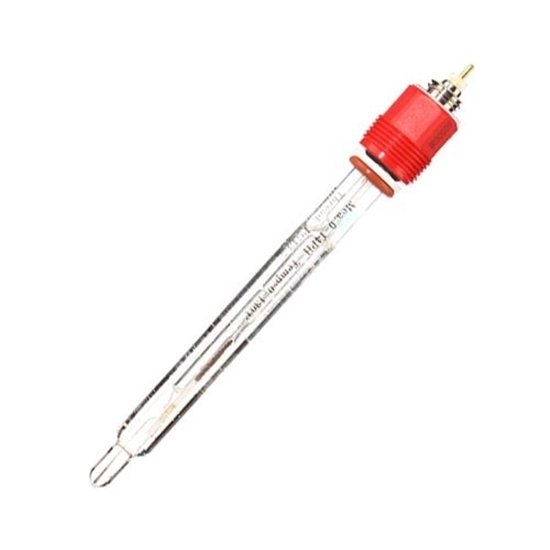

The high-temperature pH glass electrode K8S probe for sterilization has high tenacity glass shell, -5℃ -130℃ temperature range, 0.6MPa compressive strength. It is widely used in fermentation cans, biotechnology, pharmaceutical industry, starch slurry, food and beverage processes, etc.

Features:

• High Precision and Stability: The combination pH electrode offers high measurement accuracy and reliable stability, ensuring consistent performance over time.
• Anti-Pollution and Anti-Interference: Designed with advanced technology to resist contamination and interference, the electrode functions well even in challenging water conditions.
• Negative Pressure: Capable of operating under negative pressure, ensuring durability and adaptability to various environmental pressures.
• Built-in Temperature Probe: Equipped with an internal temperature sensor, the electrode allows for temperature compensation, improving the accuracy of pH measurements.
• Accurate Measurement: Provides precise pH readings, ensuring reliable data for water quality analysis.
• Fast and Stable Response: The electrode reacts quickly to pH changes in water, delivering stable results with minimal lag time.

Specification:

The pH electrode installation methods:

1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
2. Flange mounted at the top
3. Pipe installation
4. Top installation
5. Submersible installation
6. Flow-through installation

Tips: How to calibrate a pH electrode?
Preparations before use:

1. Remove the protective sleeve from top of the electrode and keep properly.
2. Clean the white salt deposits on the external surface of the electrode with deionized water.
3. Swing the electrode slightly, like swinging a thermometer, so as to remove bubbles from electrodes.

Calibration of pH electrode:

1. Install the pH electrode and power on.
2. Prepare 250ml pH standard solutions with distilled water or deionized water, the pH value of standard solutions are 4.00, 6.86 and 9.18 respectively.
3. Open the electrode protective sheath and clean the electrode probe in the distilled water, turn the pH meter to the calibration interface.
4. Put the electrode in 4.00, 6.86 and 9.18 standard solution respectively, rinse the electrode completely with distilled water when replacing the measurement standard solutions.
5. The pH electrode can be normally used after calibration.
