- Stock: In Stock
- Model: KOLAUT-RS-KCD1
- Weight: 1.00
- SKU: KOLAUT-RS-KCD1
Available Options

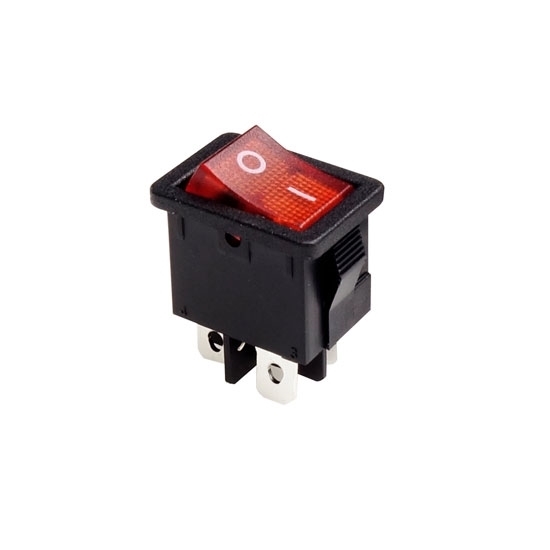

Illuminated rocker switch is used to install in various electrical engineering, 4 pins, on/off, rated voltage 220V, high temperature and corrosion resistance.
Specification
| Model | KOLAUT-RS-KCD1 |
| Rated Current | 15A |
| Rated Voltage | 220V |
| Terminals Number | 4 Pin |
| Contact Resistance | ≤50mΩ |
| Withstand Voltage | 1500VAC 1 min |
| Rated Range | 16A 250VAC |
| Relative Humidity | <95% |
| Protection Level | IP40 |
| Terminal Insertion Force | ≥80N |
| Insulation Resistance | ≥1000mΩ |
| Electrical Life Time | 10,000 Cycles |
| Flame Retardant Requirements | UL94-V2 |
| Operating Force | 2N-8N |
| Welding | Welding temperature ≤320℃, welding time ≤3 seconds |
| Illuminated Voltage | Use ≤48V, allow fluctuation ±5%, use ≥48V, allow fluctuation ±25% |
| Certificate | UL. CE, ENEC |
| Warranty | 12 Months |

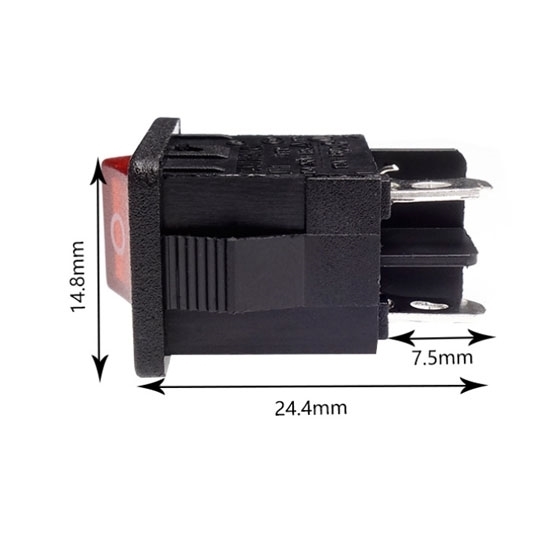

On off Rocker Switch Dimension
4 Types of rocker switches
1. Single pole single throw, 1 moving contact and 1 static contact, only 1 channel.
2. Double pole single throw, 2 moving contacts and 2 static contacts, with 2 channels.
3. Single pole double throw, 1 moving contact and 2 static contacts, which can be connected to the static contacts at both ends separately.
4. Double-pole double-throw, 2 moving contacts and 4 static contacts, with 4 channels, which can be connected to the 2 static contacts at both ends separately.
