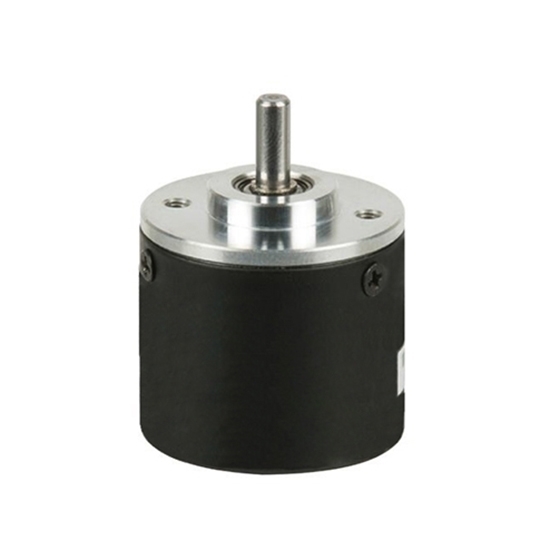

1000 ppr incremental optical rotary encoders can be used for robots, workbenches, injection molding machines, electronic equipment, printing and packaging machinery, non-standard equipment and CNC machine, a variety of office automation systems, industrial automation control and measurement fields.

Specification

Model Selection

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Features

1. The encoder adopts a special ASIC chip inside, which is stable and reliable in signal processing and ensures accurate output pulse.
2. The overall structure is durable, long life, suitable for long time high frequency operation of industrial occasions.
3. Incremental encoder has excellent anti-interference performance, can work stably in complex electromagnetic environment.
4. Compact and lightweight, suitable for automation equipment with limited installation space.
5. Modular design, easy installation, fast and efficient commissioning.

Dimension (unit: mm)

Application

Tips: What is the differential line driver output?

Differential output refers to the fact that each channel has a complementary channel, such as A and A-. Differential line drivers can help improve anti-noise property. Differential line drivers also allow to output more leak current or source current than push-pull output. Differential line driver is working with the leakage and the source circuit at the same time. It can also help increase the signal transmission distance.
