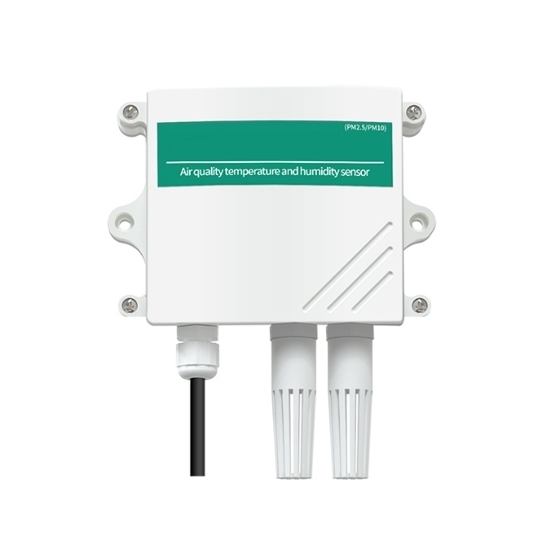

This air quality sensor measures temperature (-40~+80°C), humidity (0%RH-100%RH), and particulate matter (PM2.5, PM10, PM1.0) with a range of 0-1000μg/m³ and a resolution of 1μg/m³. It offers an accuracy of ±3%FS (@0-100μg/m³, 25°C, 50%RH).

Specification

Feature

• Automatic Calibration with High Consistency: Air quality sensor equipped with dual-frequency data collection and automatic calibration technology, ensuring high consistency of up to ±10%.
• Advanced Laser Dust Reduction Technology: Utilizes cutting-edge laser dust reduction technology to ensure long-term stable data without drift.
• Fast Response and High Accuracy: Air quality sensor uses a series sampling probe with fast response speed and higher accuracy for better measurement precision.
• Multiple Signal Outputs: Industrial air quality sensor supports multiple output signals such as RS485, 4-20mA, 0-5V, 0-10V, WiFi, and 4G to meet different monitoring requirements in various environments.
• High Protection for Outdoor Use: Designed with high protection for outdoor use, resistant to dust, rain, and snow, making it suitable for monitoring in harsh weather conditions.

Dimension

Wiring Method

Application

Tips: What is the laser scattering principle for air quality sensors?

The laser light is scattered on the suspended particles in the air, and the scattered light is collected at a specific angle to obtain the curve of the scattered light intensity with time. The microprocessor then uses an algorithm based on Mie theory to derive the equivalent particle size of the particulate matter and the number of particles of different sizes per unit volume.
