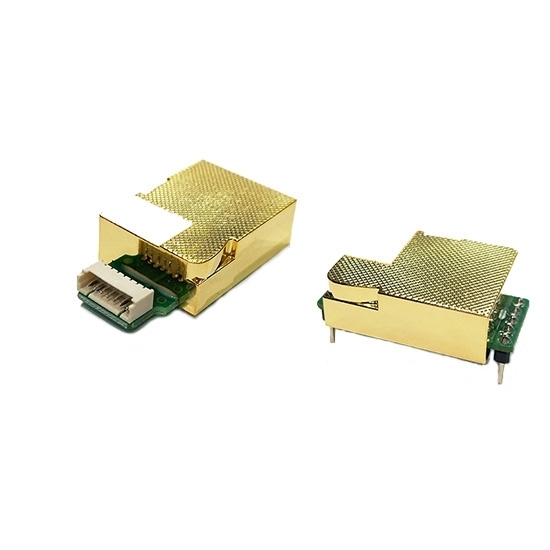

High performance carbon dioxide sensor has less than 40 mA average current, preheat time 1min. The infrared CO2 sensor has the advantages of anti-water vapor interference, no poisoning, high sensitivity, low power consumption, and long service life.

Features

• Chamber is gold plated
• High sensitivity, low power consumption
• Good stability, long lifespan
• Temperature compensation, excellent linear output
• Multiple output modes: UART, PWM
• Anti-water vapor interference, anti-poisoning

Specification

• Model: KOLAUT-ICDS-Z19C
• Detection gas: CO2
• Working voltage: 5VDC
• Peak current: 125 mA
• Average current: < 40mA
• Interface level: 3.3V
• Measuring range: 400~10000 ppm
• Output signal: UART/ PWM
• Preheat time: 1 min
• Response time: T90 < 120s
• Working temperature: -10℃ ~ 50℃
• Working humidity: 0~95% RH (no condensation)
• Storage temperature: -20℃ ~ 60℃
• Dimension (L*W*H): 57.5*34.7*17mm

Measuring range and accuracy

Dimension (mm)

Tips: How Often Should A CO2 Sensor Be Calibrated?

The more accurate the CO2 reading required, the more often it should be calibrated. However, CO2 sensor staff typically recommends customers to place their sensors or devices on a regular calibration cycle like their important devices and equipment.

For specific industries we recommend the following calibration cycles and methods:

• Scientific Experimentation – zero calibration before each test
• Safety – zero calibration at least annually
• Beverage/ Restaurant - zero with nitrogen at least annually
• Greenhouse – zero with nitrogen after each growing cycle
• Manufacturing – zero with nitrogen at least annually
• Indoor Air Quality – ABC or fresh air as desired
