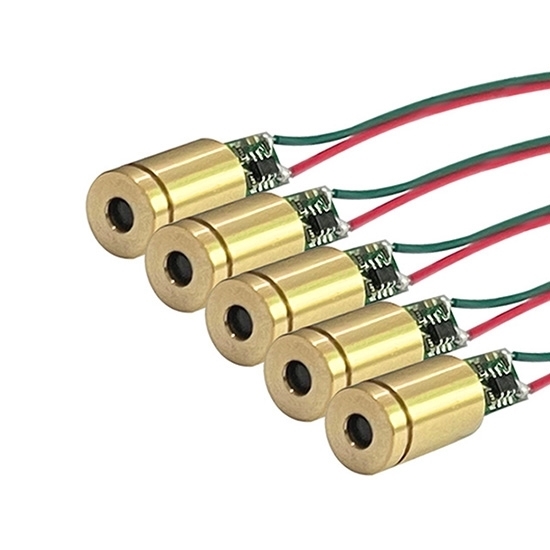

Infrared Laser Module, Night Vision Module, 850nm 50mW

Infrared Laser Module, Night Vision Module, 850nm 50mW
Infrared Laser Module, Night Vision Module, 850nm 50mW
Infrared Laser Module, Night Vision Module, 850nm 50mW
Infrared Laser Module, Night Vision Module, 850nm 50mW
Infrared Laser Module, Night Vision Module, 850nm 50mW
0 reviews • Write a review
from
$85.62
Ex Tax: $85.62
  • Stock: In Stock
  • Model: KOLAUT-LM-LXDZ
  • Weight: 1.00
  • SKU: KOLAUT-LM-LXDZ

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.0015μF 1250V Metal Film Capacitor
Quickview
0.0015μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 1250V Metal Film Capacitor
Quickview
0.001μF 1250V Metal Film Capacitor
$0.14
Ex Tax:$0.14
Add to Cart Add to Wish List Compare this Product
0.001μF 630V Metal Film Capacitor
Quickview
0.001μF 630V Metal Film Capacitor
$0.13
Ex Tax:$0.13
Add to Cart Add to Wish List Compare this Product
0.01μF 100V Disc Ceramic Capacitor
Quickview
0.01μF 100V Disc Ceramic Capacitor
$1.04
Ex Tax:$1.04
Add to Cart Add to Wish List Compare this Product
0.01μF 1kV Disc Ceramic Capacitor
Quickview
0.01μF 1kV Disc Ceramic Capacitor
$1.09
Ex Tax:$1.09
Add to Cart Add to Wish List Compare this Product
0.022μF 1kV Disc Ceramic Capacitor
Quickview
0.022μF 1kV Disc Ceramic Capacitor
$1.29
Ex Tax:$1.29
Add to Cart Add to Wish List Compare this Product
0.022μF 2000V Metal Film Capacitor
Quickview
0.022μF 2000V Metal Film Capacitor
$0.28
Ex Tax:$0.28
Add to Cart Add to Wish List Compare this Product
0.033μF 1600V Metal Film Capacitor
Quickview
0.033μF 1600V Metal Film Capacitor
$0.35
Ex Tax:$0.35
Add to Cart Add to Wish List Compare this Product

The infrared dot laser module is very suitable for night vision systems, positioning tasks, and other scenarios that require precise infrared projection. It combines flexibility and durability, making it suitable for precise operations in low light conditions. Infrared laser module with constant voltage and current is not easily damaged and can be illuminated for a long time.

Specification

ModelKOLAUT-LXDZ-TC10650AD5
Size6mm*10mm (customizable)
MaterialEnvironmentally friendly copper
Surface treatmentMatte treatment (customizable)
Service life15000h+
Output wavelength850nm (customizable)
Output Power5mW (customizable)
Maximum rangeMore than 1000 meters
Spot size at 10 metersLess than 12mm (customizable)
Fixed/Adjustable focal lengthfixed (customizable light angle)
Lens materialImported acrylic optical lens
Circuit controlACC constant current control board
Maximum working current3V (customizable)
Operating modecontinuous mode (customizable)
WireDC power wiring (ordinary connecting line length can be customized)
Operating temperature-10~80℃ (depends on laser tube parameters)
Storage temperature-40~+80℃ (depends on laser tube parameters)

We provide customized services for wavelength, power, and spot effects, etc. You can contact us to discuss your needs and obtain tailored solutions.

Dimension (mm)

The dimensions are measured manually and may have errors. Please refer to the actual product for accuracy.
You can contact us to customize other sizes.

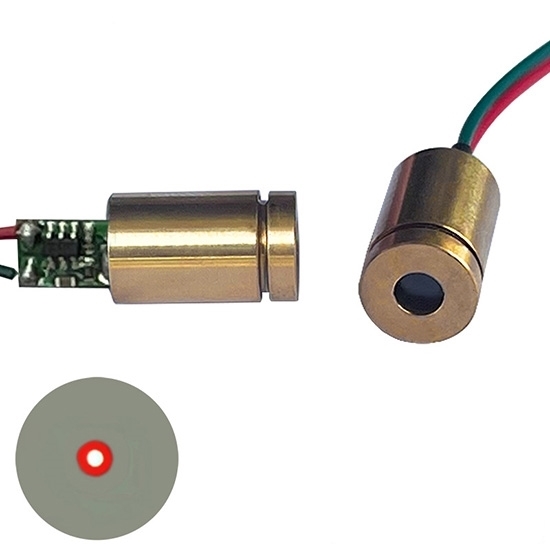

Product Display

Tips: Knowledge of laser module selection

  1. Laser is commonly divided into: blue purple laser (405nm), blue laser (440-450nm), green laser (515-540nm), red laser (630-670nm), and infrared invisible light laser (780-980nm).
  2. The higher the laser power, the brighter it is.
  3. Laser modules are generally divided into point, straight line, cross line, diffused spot or customized light shape.
  4. When in use, it is not necessarily better to have higher optical power. It depends on the working environment of the device and can meet the requirements. The higher the power, the higher the price and the higher the risk.
  5. It must be strictly used according to the product specifications, and the voltage and current must comply with the parameters.
  6. Laser has strict requirements for heat dissipation, and all lasers must be equipped with a heat dissipation seat to work. The higher the current, the stronger the light, and the greater the heat generation.
  7. High power and high brightness, can work under strong light, but the accuracy is slightly lower.
  8. Laser is harmful to the eyes, please do not direct it towards the eyes. (If you need to protect your eyes, you can wear laser protective glasses)
  9. Please keep the laser product out of reach of children.
  10. Please dispose of discarded lasers correctly to make the earth cleaner.
