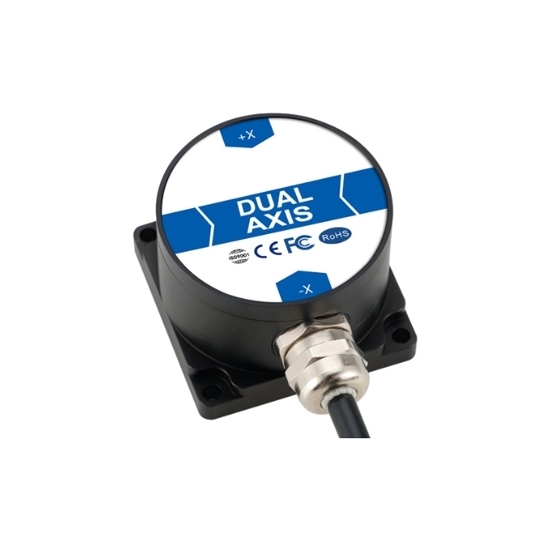

MEMS Inclinometer Sensor, Analog Output, 4-20mA/ 0-10V

MEMS Inclinometer Sensor, Analog Output, 4-20mA/ 0-10V
MEMS Inclinometer Sensor, Analog Output, 4-20mA/ 0-10V
MEMS Inclinometer Sensor, Analog Output, 4-20mA/ 0-10V
MEMS Inclinometer Sensor, Analog Output, 4-20mA/ 0-10V
MEMS Inclinometer Sensor, Analog Output, 4-20mA/ 0-10V
0 reviews • Write a review
from
$196.76
Ex Tax: $196.76
  • Stock: In Stock
  • Model: KOLAUT-IMS-LVT
  • Weight: 1.00
  • SKU: KOLAUT-IMS-LVT

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0-10V Signal Isolator, 1/2 Outputs
Quickview
0-10V Signal Isolator, 1/2 Outputs
$94.86
Ex Tax:$94.86
Add to Cart Add to Wish List Compare this Product
1" Digital Flow Switch For Water
Quickview
1" Digital Flow Switch For Water
$446.39
Ex Tax:$446.39
Add to Cart Add to Wish List Compare this Product
1-phase AC Current Transducer, 0-1A/5A/10A/20A
Quickview
1-phase AC Current Transducer, 0-1A/5A/10A/20A
$175.54
Ex Tax:$175.54
Add to Cart Add to Wish List Compare this Product
1-phase AC Voltage Transducer, 0~120V/300V/450V/600V
Quickview
1-phase AC Voltage Transducer, 0~120V/300V/450V/600V
$175.54
Ex Tax:$175.54
Add to Cart Add to Wish List Compare this Product
1/2" Digital Flow Switch For Air
Quickview
1/2" Digital Flow Switch For Air
$231.79
Ex Tax:$231.79
Add to Cart Add to Wish List Compare this Product
1/2" Digital Flow Switch For Water
Quickview
1/2" Digital Flow Switch For Water
$307.99
Ex Tax:$307.99
Add to Cart Add to Wish List Compare this Product
1000mm Level Sensors For Sewage Disposal System
Quickview
1000mm Level Sensors For Sewage Disposal System
$979.86
Ex Tax:$979.86
Add to Cart Add to Wish List Compare this Product
1000mm Magnetostrictive Displacement Sensor For Hydraulic Cylinder
Quickview
1000mm Magnetostrictive Displacement Sensor For Hydraulic Cylinder
$979.86
Ex Tax:$979.86
Add to Cart Add to Wish List Compare this Product

Analog output MEMS inclinometer sensor for sale, high-precision solutions (0~5V/ 0~4.5V/ 0~10V/ 0~20mA/ 0~24mA/ 4-20mA output signals can be selected), with excellent long-term stability (≤ 0.3 °). The tilt sensor has excellent impact resistance (2600g), IP67 waterproof rating, wide temperature operating range (-40℃ to +85℃) and rugged aluminum alloy housing, equipped with standard 1.5m abrasion-resistant cable for easy installation.

Specifications

ModelKOLAUT-LVT410TKOLAUT-LVT418T
Measuring Range±10°/±30°/±60°/±90° (optional)
Output Signal0~5V/0~4.5V/0~10V (optional)0~20mA/0~24mA/4-20mA (optional)
Measuring AxisX axis
Zero Temperature Drift±0.05°/°C
Sensitivity Temperature Coefficient≤200ppm/°C
Zero Offset0~5V output -2.5V0~20mA output 10mA
0~10V output -5V0~24mA output 12mA
/4-20mA output 12mA
Frequency ResponseDC response 100Hz
ResolutionNormal width 5Hz, 0.05°
Accuracy0.25°
Long Term Stability≤0.3°
Power-up Time0.2s
Response Time0.01s
Average Operating Time≥55000 hours/trip
Shock Resistance2600g, 0.5ms,3 times/axis
Vibration Resistance10grms, 10~1000Hz
Insulation Resistance≥100MΩ
Supply Voltage9~36V
Working Current40mA
Output LoadResistivity: 10kΩ0~500kΩ
Capacitance: 20nF/
Operating Temperature-40℃~+85℃
Storage Temperature-55℃~+100℃
Housing MaterialAluminum alloy with matte oxidation
MountingThree M4 screws
Waterproof RatingIP67
CableStandard 1.5 meter length, abrasion resistant, oil resistant, wide temperature range, shielded cable 6*0.3mm2
Weight55g (without box)


Dimension (unit: mm)

Measuring of Axial Direction

Wiring Diagram

123
RedBlackWhite
VCC (power positive)GND (power negative)Out X


Application

Tips: MEMS inclinometer sensor voltage output and angle calculation formula

Inclination angle= Sensitivity *(Vout - Voffset)

The current inclination angle

Vout: Sensor output voltage value, unit V

Voffset: Voltage output from the sensor at zero position (usually 2.5V).

Sensitivity: Sensor sensitivity: Inclinometer sensor sensitivity is the ratio of the corresponding voltage change when the sensor tilt angle changes, e.g. if the sensor range is ±90° and the corresponding voltage change is 0-5V, then the sensor sensitivity is 36.

  • 90-(-90)= sensitivity* (5-0)

If the current output voltage is 3.75V, the corresponding inclination is 45 degrees.

  • 45=36*(3.75-2.5)

For example, if the range of the sensor is ±30°, and the corresponding voltage change is 0-5V, then the sensor sensitivity is 12.

  • 30-(-30)= sensitivity* (5-0)

If the current output voltage is 3.75V, the corresponding tilt angle is 15 degrees.

  • 15=12* (3.75-2.5)

Therefore, the sensitivity of the inclinometer sensor corresponds to the range.
